Allen-Bradley | 25B-D6P0N114 |PowerFlex 525

Product Description: Allen-Bradley 25B-D6P0N114

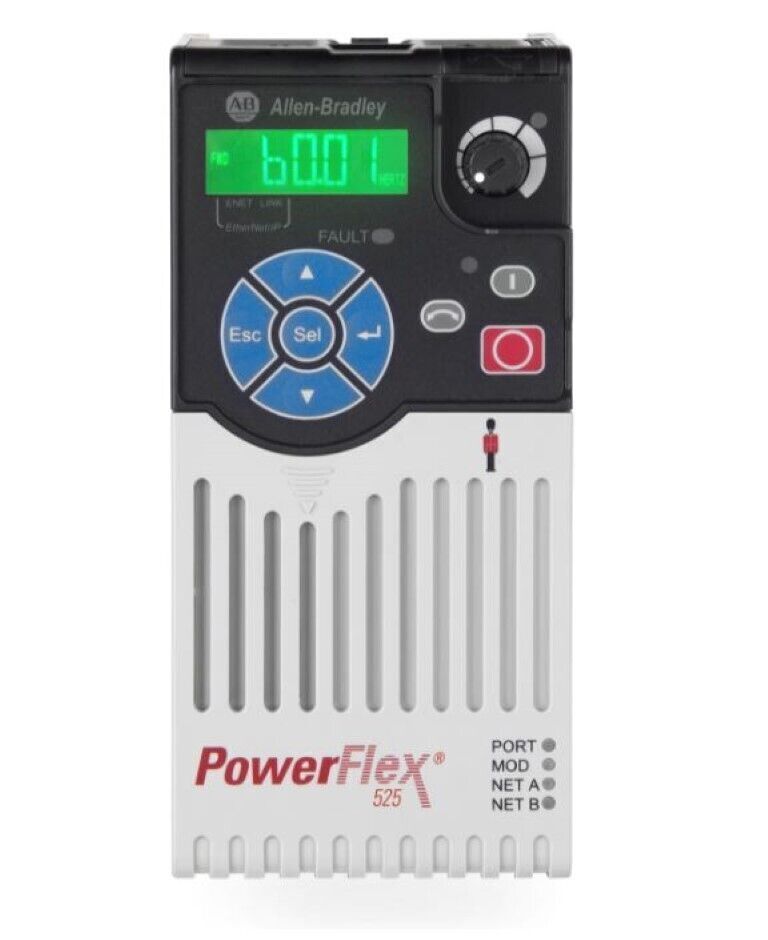

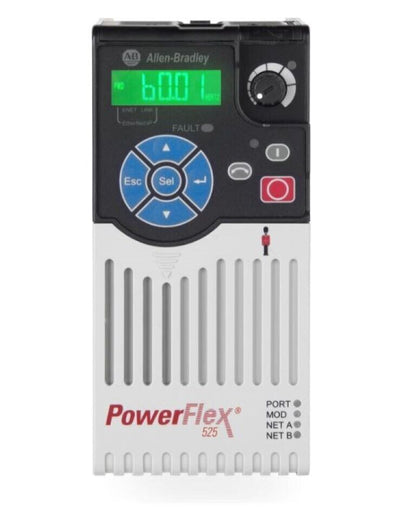

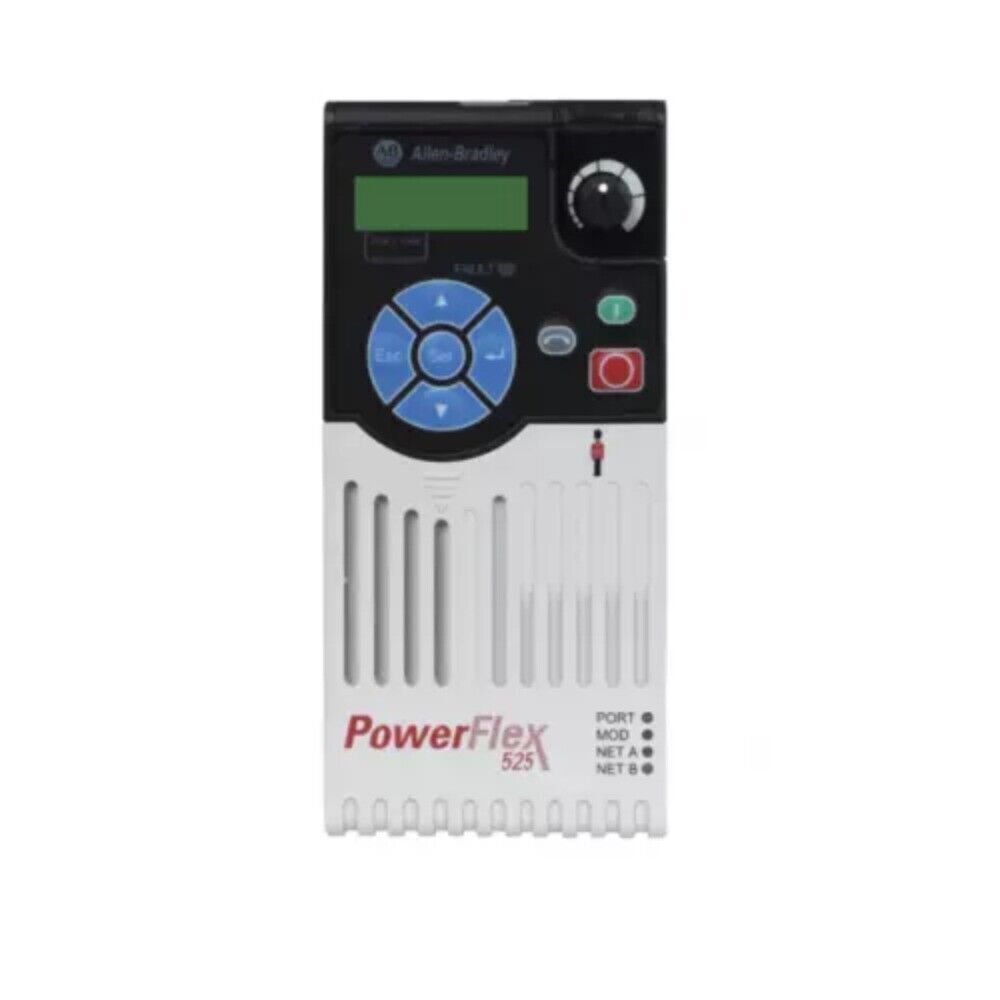

The Allen-Bradley 25B-D6P0N114 is a PowerFlex 525 AC drive designed to control the speed of three-phase induction and permanent magnet motors. It supports a 380–480V AC, 3-phase input and delivers 6.0 A output current, corresponding to a 2.2 kW (3 HP) motor. This model integrates advanced features like Safe Torque-Off (STO) and built-in EtherNet/IP communication, making it ideal for compact and safety-critical industrial applications.

Key Features

• 2.2 kW (3 HP) power rating
• 6.0 A output current
• 380–480V AC, 3-phase input
• Built-in EtherNet/IP and Modbus- TCP
• Safe Torque-Off (STO) functionality
• V/Hz, Sensorless Vector, and Permanent Magnet Motor Control
• Frame A compact size
• IP20 open-type enclosure
• Integral keypad with LED display and potentiometer
• DIN rail or panel mounting

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Frequency: 0–500 Hz
• Power Factor: ≥ 0.98
• Ambient Operating Temp: -20°C to +50°C (without derating)
• Enclosure: IP20, NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector Control (SVC), Closed Loop Velocity, Permanent Magnet
• EMC Filtering: Integrated
• Communication Ports: EtherNet/IP, Modbus-TCP
• Safety Function: Safe Torque-Off (certified)

Application Areas

• Conveyor systems
• Industrial pumps and fans
• Packaging and labeling machinery
• Material handling systems
• Mixers and agitators
• HVAC and ventilation equipment

Advantages

• Compact design fits into small enclosures
• Integrated safety and network features reduce system cost
• Flexible motor control suitable for various motor types
• Quick installation and easy configuration with intuitive interface
• Energy- efficient with high power factor and advanced control algorithms
