Allen-Bradley | 25B-D2P3N104| PowerFlex 525

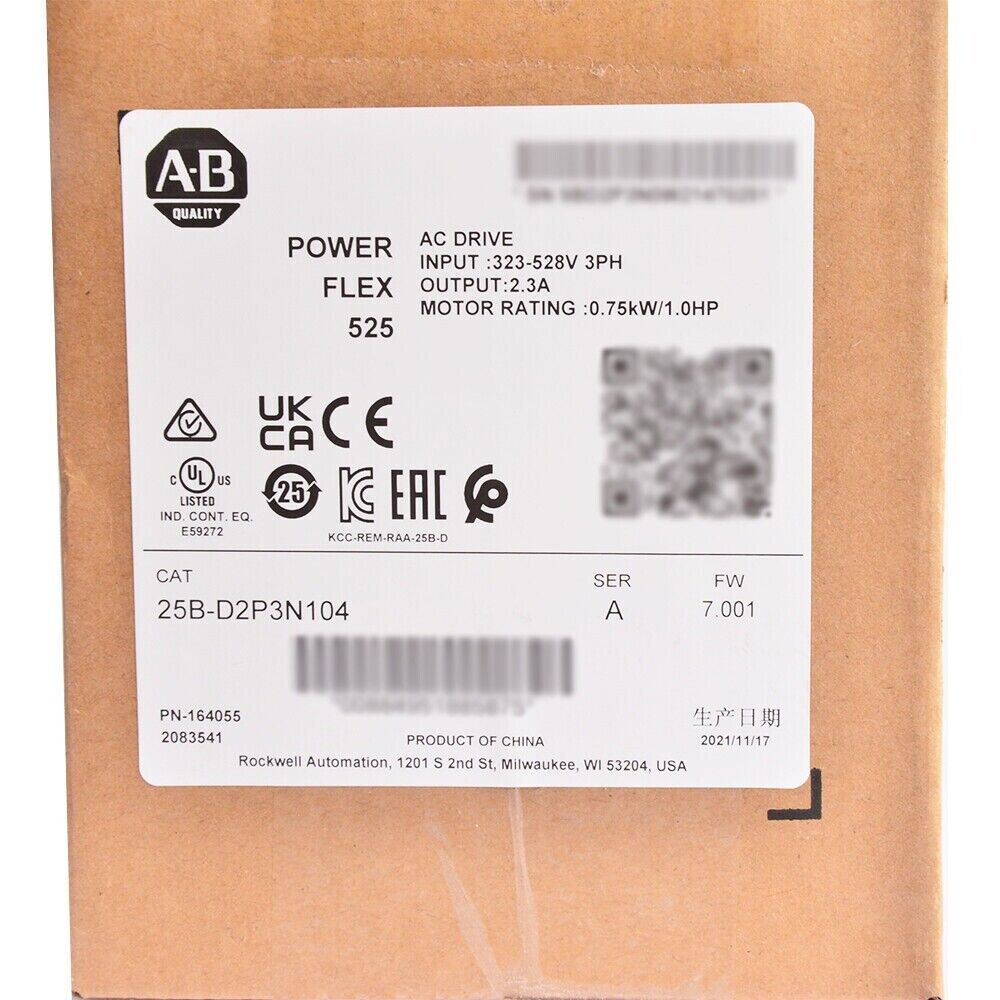

Product Description: Allen-Bradley 25B-D2P3N104

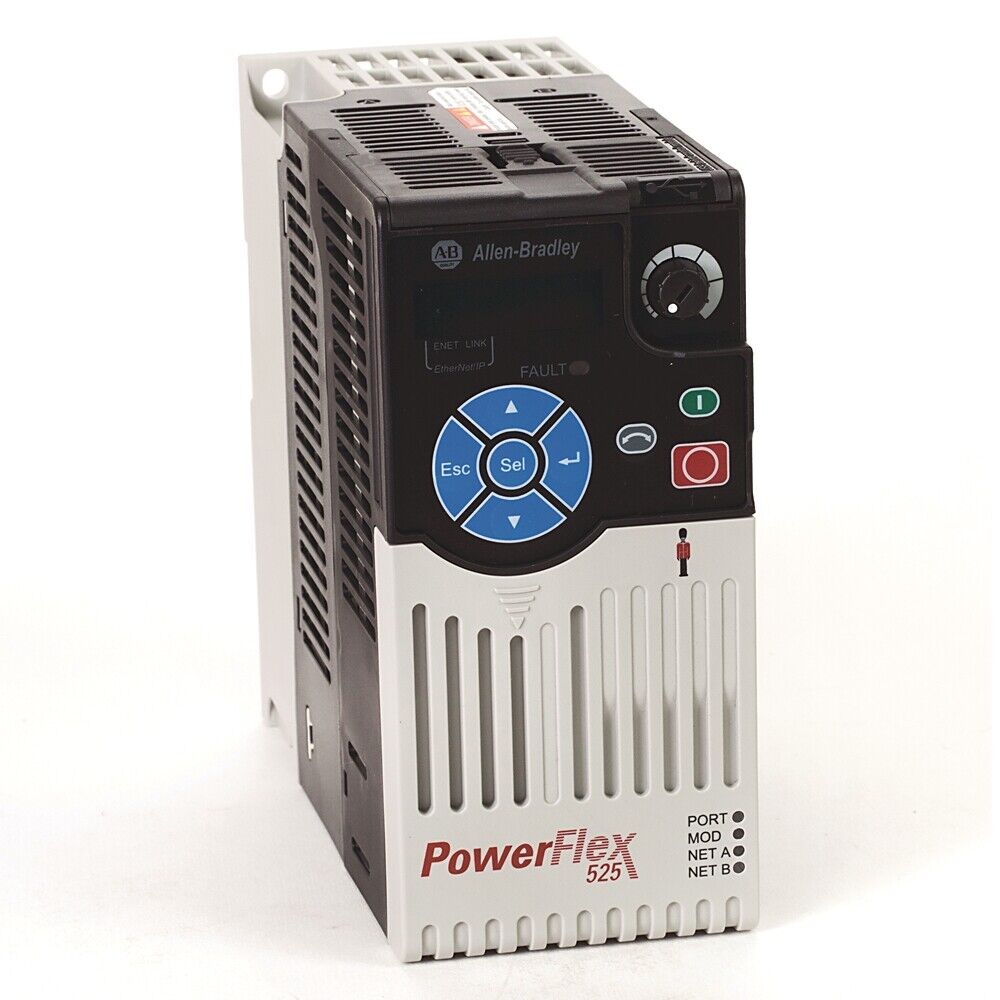

The Allen-Bradley 25B-D2P3N104 is a PowerFlex 525 AC drive engineered for controlling the speed of three-phase induction and permanent magnet motors. It operates on a 380–480V AC, 3-phase power supply and delivers 2.3 A output current, supporting motors up to 0.75 kW (1 HP). Designed with integrated EtherNet/IP communication and Safe Torque-Off (STO), this drive combines high performance, flexibility, and built-in safety in a compact package.

Key Features

• 0.75 kW (1 HP) motor support
• 2.3 A output current
• 380–480V AC, 3-phase input
• Embedded EtherNet/IP and Modbus-TCP connectivity
• Safe Torque-Off (STO) functionality
• Supports V/Hz, Sensorless Vector, Closed Loop Velocity, and Permanent Magnet Motor Control
• Compact Frame A design
• IP20 open-type enclosure
• Built-in keypad with LED display and potentiometer
• Supports panel and DIN rail mounting

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Frequency: 0–500 Hz
• Rated Output Current: 2.3 A
• Power Factor: ≥ 0.98
• Operating Temperature: -20°C to +50°C without derating
• Enclosure Type: IP20 (Open Type)
• Frame Size: A
• Communication: EtherNet/IP, Modbus-TCP
• EMC Filter: Integrated
• Safety: Safe Torque-Off (SIL2, PLd certified)
• User Interface: Keypad with potentiometer and LED indicators

Application Areas

• Small conveyors and lifts
• Fans and blowers
• Compact pump systems
• Laboratory automation
• Small machine tools
• General industrial process control

Advantages

• Ideal for low-power, space- constrained installations
• Advanced motor control in a cost-efficient form
• Built-in safety and network features reduce total system cost
• Easy to install, configure, and operate
• High energy efficiency and robust performance
