Allen-Bradley | 25B-D024N114 | PowerFlex 525

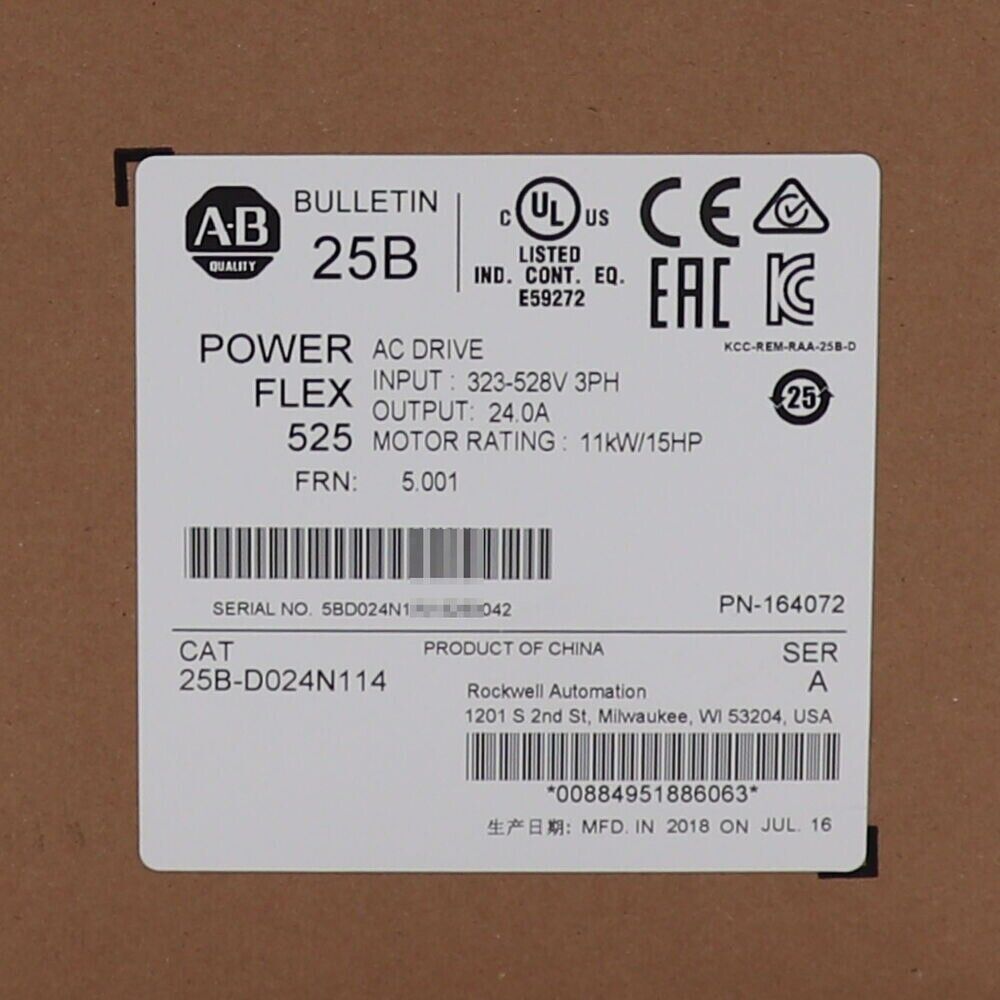

Product Description: Allen-Bradley 25B-D024N114

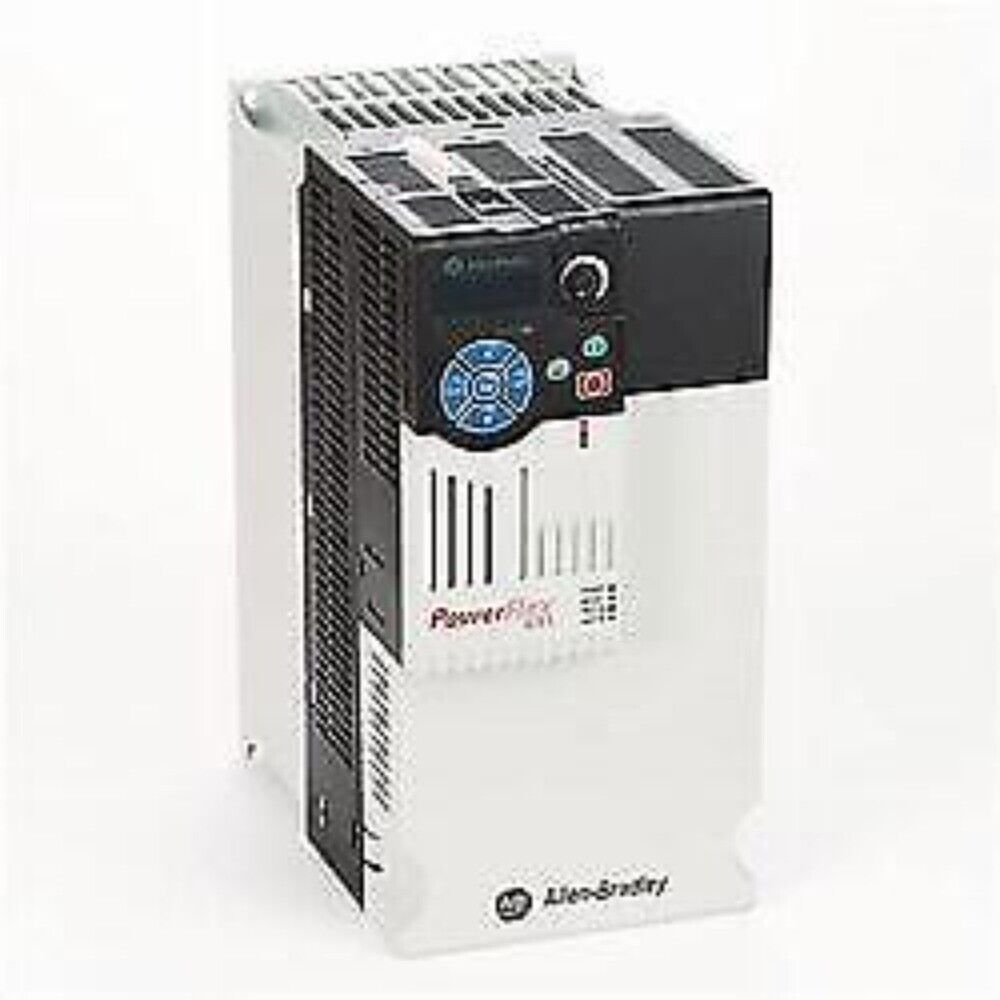

The Allen-Bradley 25B-D024N114 is a PowerFlex 525 AC variable frequency drive (VFD) designed for controlling three-phase induction motors in a wide range of industrial applications. It supports a power rating of 11 kW / 15 HP and operates with a voltage range of 380-480V AC , 3-phase input. With integrated Ethernet/IP and DeviceNet communication capabilities, this drive offers advanced motor control, flexible programming, and connectivity, making it ideal for modern automation systems.

Product Type

• Variable Frequency Drive (VFD)
• Series: PowerFlex 525
• Input: 3-phase, 380-480V AC
• Motor Rating: 15 HP / 11 kW
• Output Current: 24 A
• Communication: Embedded EtherNet/IP and DeviceNet

Key Features

• Rated output: 24 A
• Power rating: 15 HP (11 kW)
• Voltage class: 480V AC, 3-phase
• Embedded dual-port EtherNet/IP and optional DeviceNet
• Sensorless vector control and V/Hz control modes
• Removable control module for easy programming and maintenance
• USB programming port for quick configuration
• Safe Torque-Off (STO) functionality built in
• Compact footprint with side-by-side mounting capability
• Conformal coating options for harsh environments

Technical Specifications

• Input Voltage: 380-480V AC, 3-phase
• Output Current: 24 A
• Power Rating: 15 HP / 11 kW
• Frequency Range: 0…500 Hz
• Control Methods: V/Hz, Sensorless Vector Control
• Digital Inputs: 7
• Analog Inputs: 2 (voltage or current)
• Analog Outputs: 1
• Relay Outputs: 1 Form C
• Operating Temperature: -20°C to 50°C (without derating)
• Protection: IP20 NEMA / Open Type
• Certifications: UL, CE, cUL, RoHS, TUV

Application Areas

• Conveyors and material handling systems
• Pumps and fans
• Mixers, compressors, and blowers
• HVAC systems
• Machine automation requiring motor speed control

Advantages

• Integrated communication simplifies network setup
• Advanced motor control improves energy efficiency
• Compact and modular design reduces installation time and space
• Built-in safety features enhance operational security
• User-friendly configuration with USB and LCD keypad options
