Allen-Bradley | 25AD017N104 | PowerFlex 525

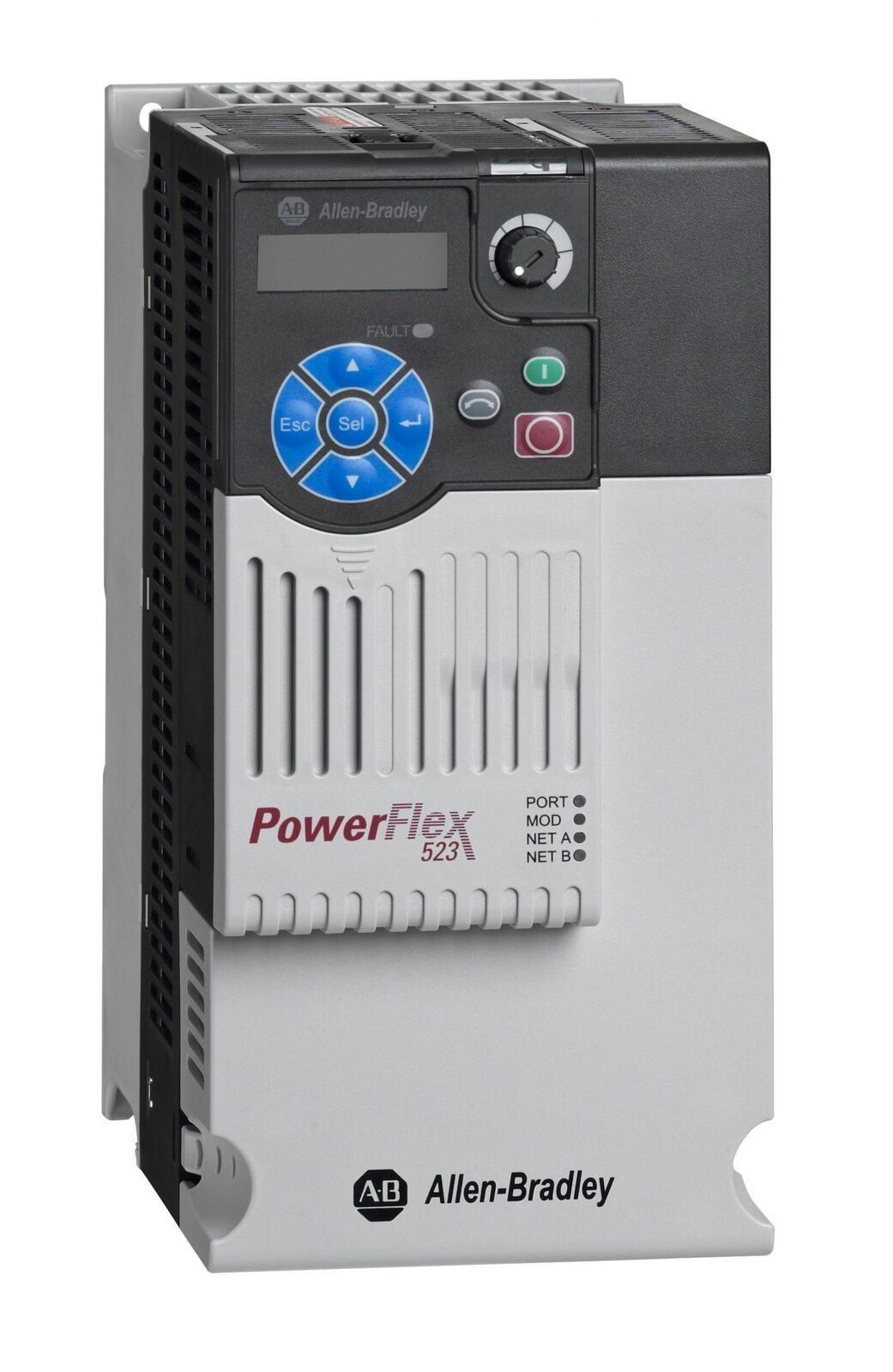

Product Description: Allen-Bradley 25A-D017N104

The Allen-Bradley 25A-D017N104 is a PowerFlex 525 AC drive engineered for variable speed control of three- phase induction motors. Rated for 7.5 HP (5.5 kW) at 480V AC and delivering 17.5 A output current , this drive offers a flexible, compact, and cost-effective solution for a wide range of industrial motor control applications. It includes built-in EtherNet/IP communication , Safe Torque-Off (STO) functionality, and supports both V/Hz and sensorless vector control methods.

Product Type

• Variable Frequency Drive (VFD)
• Series: PowerFlex 525
• Input: 3-phase, 380–480V AC
• Output: 17.5 A
• Motor Rating: 7.5 HP / 5.5 kW
• Enclosure: Open type (IP20 / NEMA 1 with kit)

Key Features

• Supports motor power up to 7.5 HP (5.5 kW)
• Rated output current: 17.5 A
• Input voltage: 3-phase, 380–480V AC
• Embedded dual-port EtherNet/IP communication
• Safe Torque-Off (STO) integrated for enhanced safety
• Compact footprint allows side-by-side installation
• Sensorless vector and V/Hz control for flexible motor performance
• Built-in USB port for easy configuration
• Removable control module for simplified maintenance
• Optional HIM (Human Interface Module) for local display and control

Technical Specifications

• Input Voltage: 380–480V AC, 3-phase
• Output Current: 17.5 A
• Frequency Range: 0–500 Hz
• Control Modes: V/Hz, Sensorless Vector Control
• Digital Inputs: 7
• Analog Inputs: 2
• Analog Outputs: 1
• Relay Outputs: 1 Form C
• Operating Temp: -20°C to 50°C (without derating)
• Protection Rating: IP20 (open-type), NEMA 1 with kit
• Communication: Embedded EtherNet/IP
• Certifications: UL, cUL, CE, RoHS

Application Areas

• Conveyors and material handling
• Pumps and fans
• HVAC systems
• Mixers and compressors
• Industrial machinery requiring speed and torque control

Advantages

• Advanced control in a compact design
• Embedded EtherNet/IP simplifies network integration
• Built-in safety features reduce additional component costs
• Quick installation and easy programming via USB or optional keypad
• Suitable for both standard and demanding motor control applications
