Allen-Bradley | 22B-D010N104| PowerFlex 40

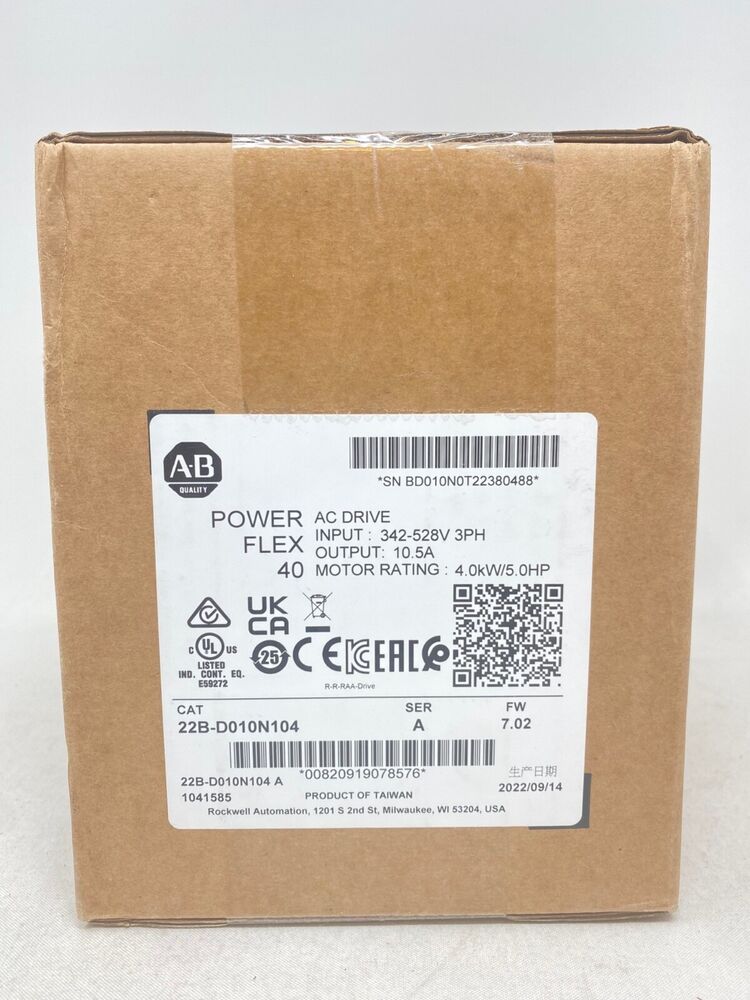

Product Description: Allen-Bradley 22B-D010N104

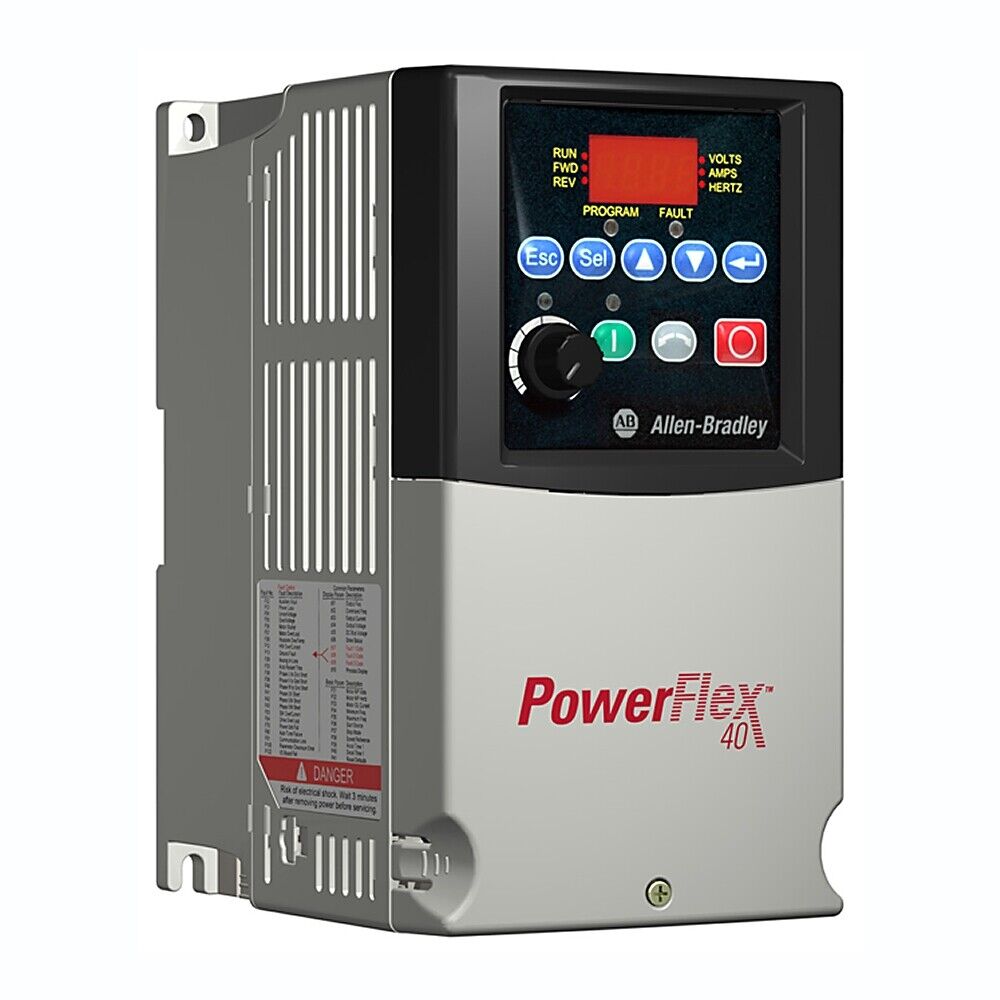

The Allen-Bradley 22B-D010N104 is a PowerFlex 40 AC drive designed to provide compact and cost-effective motor speed control in general-purpose industrial applications. With a power rating of 4 kW (5 HP) and a 3-phase 380–480V AC input, this drive supports both V/Hz and Sensorless Vector control. It includes integrated RS-485 (DSI) communication, PID functionality, and a robust IP20 NEMA Open Type enclosure for flexible mounting and installation.

Key Features

• 4 kW (5 HP) power rating
• 3-phase, 380–480V AC input
• Output current: 10.5 A
• V/Hz and Sensorless Vector control support
• Embedded RS-485 (DSI) communication
• Built-in digital and analog I/O
• PID control for process loop regulation
• Removable keypad with LED display
• Compact footprint with DIN rail or panel mounting
• IP20 NEMA Open Type enclosure

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 10.5 A
• Frequency Range: 0–400 Hz
• Control Modes: V/Hz, Sensorless Vector
• Communication:
  • Integrated RS-485 (DSI)
  • Optional: EtherNet/IP, DeviceNet, Profibus via communication adapters
• Enclosure Type: IP20 / NEMA Open Type
• Programming Interface: Keypad or Connected Components Workbench (CCW)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Mounting: DIN rail or panel mount

Application Areas

• Conveyors and small machinery
• Fans and blowers
• Light-duty pumps
• Process equipment
• Packaging and labeling systems

Advantages

• Compact and economical solution for standard motor control needs
• Integrated PID and I/O reduce external control components
• Flexible installation and communication options
• Quick setup using built-in keypad or USB interface
• Proven performance in a wide range of industrial environments
