PowerFlex 753 | Allen-Bradley | 20F1AND156AN0NNNNN Allen-Bradley PowerFlex 753 VFD Drive 20F1AND156AN0NNNNN

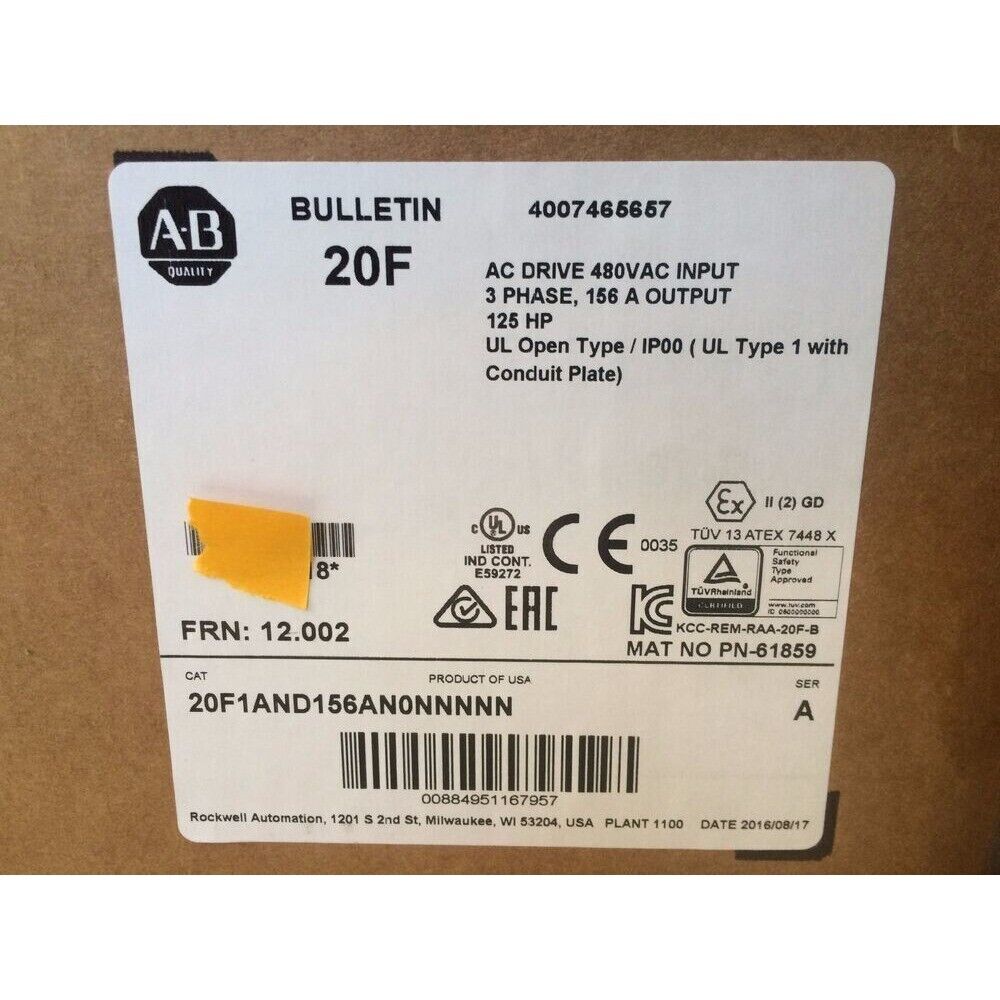

Product Description: Allen-Bradley 20F1AND156AN0NNNNN

The Allen-Bradley 20F1AND156AN0NNNNN is a PowerFlex 753 AC drive designed for high-performance, heavy-duty industrial motor control. With a power rating of 90 kW (125 HP) and a 3-phase 380–480V AC input, this drive delivers a continuous output current of 156 A. It features flexible motor control capabilities, modular expandability, and built-in safety features, making it ideal for large machinery and critical applications that require precision and reliability.

Key Features

• 90 kW (125 HP) motor rating
• 3-phase input, 380–480V AC
• Output current: 156 A
• Supports V/Hz, Sensorless Vector, and Flux Vector control
• Integrated Safe Torque-Off (STO) safety function
• Modular slots for user-selected communication, I/O, and feedback options
• DeviceLogix embedded logic control
• Chassis IP00 (Open Type) for panel-mount installation
• HIM (Human Interface Module) support for configuration and monitoring

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Voltage: 0–480V AC
• Output Current: 156 A
• Power Rating: 90 kW / 125 HP
• Frequency Range: 0–599 Hz
• Enclosure Type: IP00 / NEMA Open Type
• Control Modes: V/Hz, Sensorless Vector, Flux Vector
• Safety: Integrated Safe Torque-Off (STO), SIL2 / PLd certified
• Communication Options: Modular (supports EtherNet/IP, ControlNet, DeviceNet, Profibus, etc.)
• Programming Software: Studio 5000, Connected Components Workbench (CCW), DriveExecutive
• Mounting: Chassis mount (panel installation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Application Areas

• High-inertia industrial fans and blowers
• Heavy conveyor systems and cranes
• Water treatment and pumping systems
• Extrusion and compression machinery
• Oil & gas and energy sector motor control

Advantages

• Scalable modular design for application-specific customization
• Integrated STO enhances system safety without external wiring
• Powerful and reliable control for high-horsepower systems
• Flexible connectivity to diverse industrial networks
• Seamless integration into Rockwell Automation architecture
