PowerFlex 753| Allen-Bradley | 20F11ND027AA0NNNNN 20HP PowerFlex 753 VFD AC DRIVE

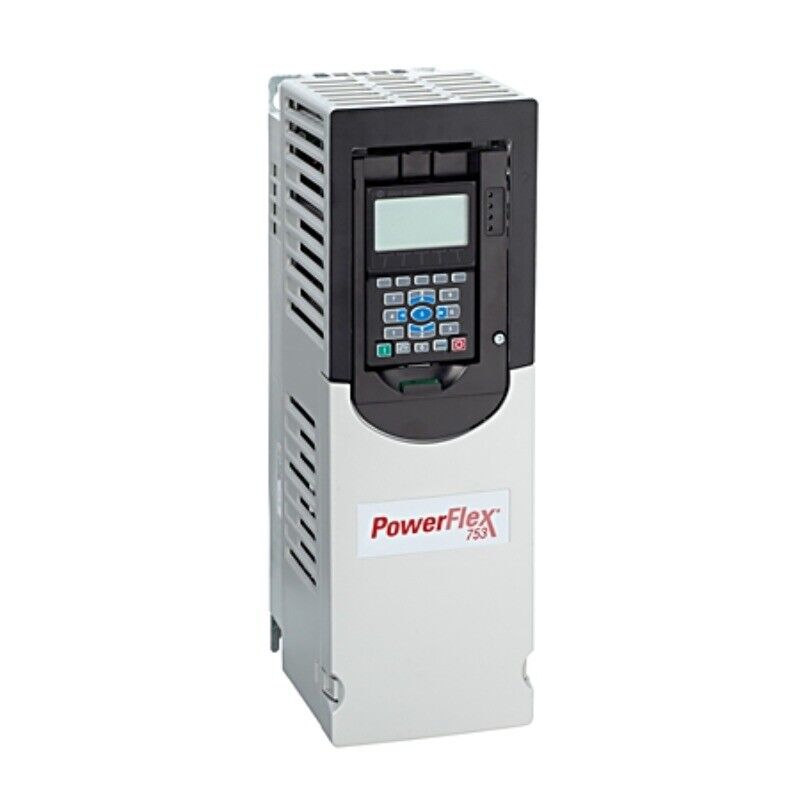

Product Description: Allen-Bradley 20F11ND027AA0NNNNN

The Allen-Bradley 20F11ND027AA0NNNNN is a PowerFlex 753 AC drive rated for 15 HP (11 kW), engineered for general-purpose industrial motor control. It features embedded standard digital and analog I/O, and supports a range of control modes and motor types. With a modular design, it offers flexibility for communication, safety, and feedback options, making it suitable for a variety of applications.

Key Features

• Rated motor power: 11 kW (15 HP)
• Output current: 27 A
• Input voltage: 3-phase, 480V AC
• Frame size: 3
• Embedded standard I/O (digital and analog)
• Supports control modes: V/Hz, Sensorless Vector Control, Full Vector Control with encoder
• Modular expansion architecture for optional communication and safety modules
• Open-type IP00 design for control panel integration

Technical Specifications

• Input Voltage: 3-phase, 380–480V AC
• Output Current: 27 A
• Frequency Range: 0–599 Hz
• Motor Power Rating: 11 kW (15 HP)
• Enclosure Type: Open (IP00)
• Mounting: Panel mount
• Operating Temperature: 0°C to +50°C (up to +60°C with derating)
• Communication: Optional adapters (not included)
• Dimensions (approx.): 460 mm H x 200 mm W x 230 mm D
• Certifications: UL, CE, cULus, CSA, RoHS

Application Areas

• Pumps and fans
• Conveyor and material transport systems
• Industrial processing equipment
• OEM equipment requiring flexible drive control
• Automated machinery

Advantages

• Integrated I/O for simplified system control
• Modular design allows tailored expansion
• Reliable performance in varied industrial conditions
• Easy configuration using Studio 5000 or Connected Components Workbench
• Supports a wide range of motor control strategies
