Allen-Bradley | 20AD034A0AYNANC0 |PowerFlex 70

Product Description: Allen-Bradley 20AD034A0AYNANC0

The Allen-Bradley 20AD034A0AYNANC0 is a PowerFlex 70 AC drive rated for 20 HP (15 kW), designed for high-performance industrial motor control. This drive offers multiple control modes, including Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), and Vector Control with encoder feedback. It includes an internal dynamic braking transistor, a standard HIM (Human Interface Module), and no communication adapter (optional).

Key Features

• Motor power: 15 kW (20 HP)
• Output current: 34 A
• Input voltage: 3-phase, 240V AC
• Frame size: D
• Integrated dynamic braking transistor

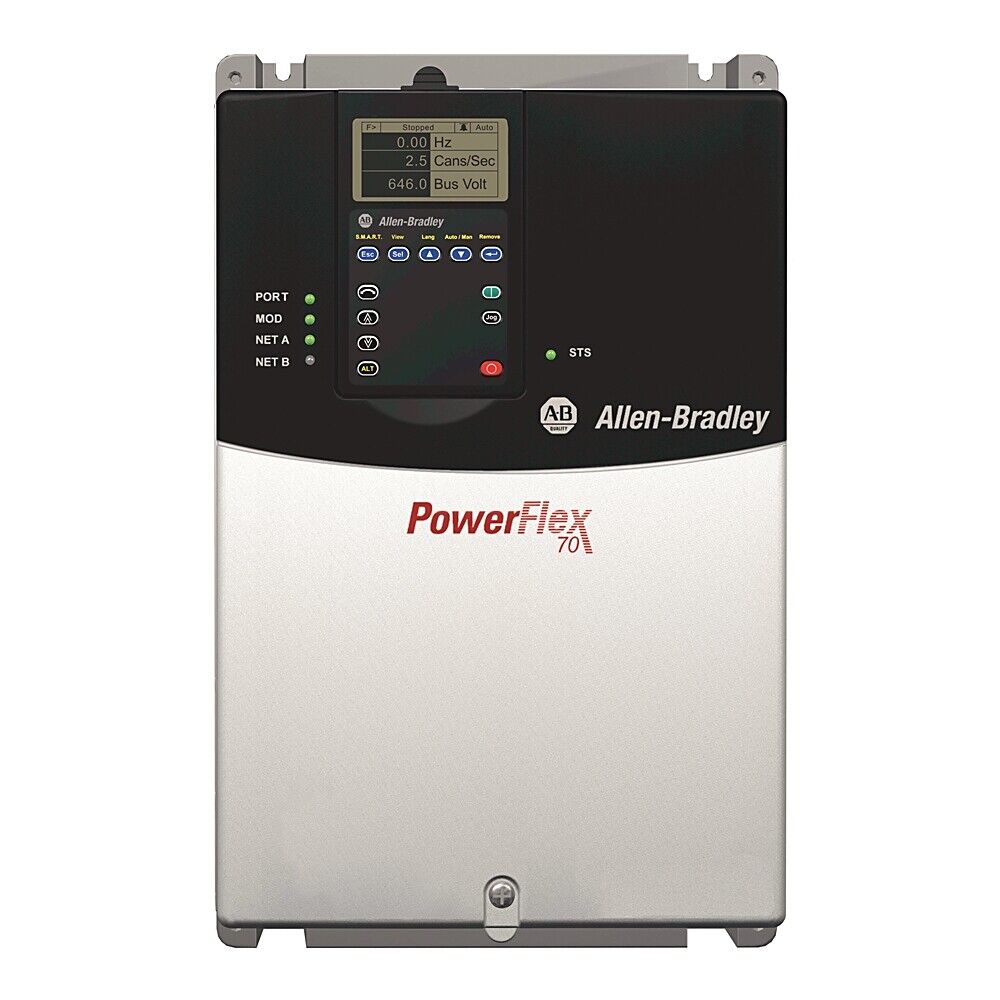

• Standard keypad (HIM) included for local control
• Modular design supporting optional communication and feedback cards
• Suitable for panel mounting in control cabinets

Technical Specifications

• Input Voltage: 3-phase, 200–240V AC
• Output Current: 34 A
• Frequency Range: 0–400 Hz
• Motor Power Rating: 15 kW (20 HP)
• Control Modes: V/Hz, Sensorless Vector, Full Vector Control
• Enclosure Type: Open (IP20)
• Mounting: Panel mount
• Communication: No adapter installed (optional adapters available)
• Braking: Internal dynamic braking transistor
• Operating Temperature: 0°C to +50°C (up to +60°C with derating)
• Dimensions (approx.): 406 mm H x 180 mm W x 230 mm D
• Certifications: UL, CE, cULus, CSA, RoHS

Application Areas

• Pumps, fans, and blowers
• Light to medium-duty conveyors
• Industrial mixers and tools
• HVAC control systems
• OEM systems requiring compact motor control

Advantages

• Integrated dynamic braking support for deceleration control
• Flexible motor control with selectable modes
• Standard HIM for easy operation and diagnostics
• Compact design fits in tight control panels
• Modular expansion capability for network integration
