Product Description: Allen-Bradley 2098-DSD-020-SE

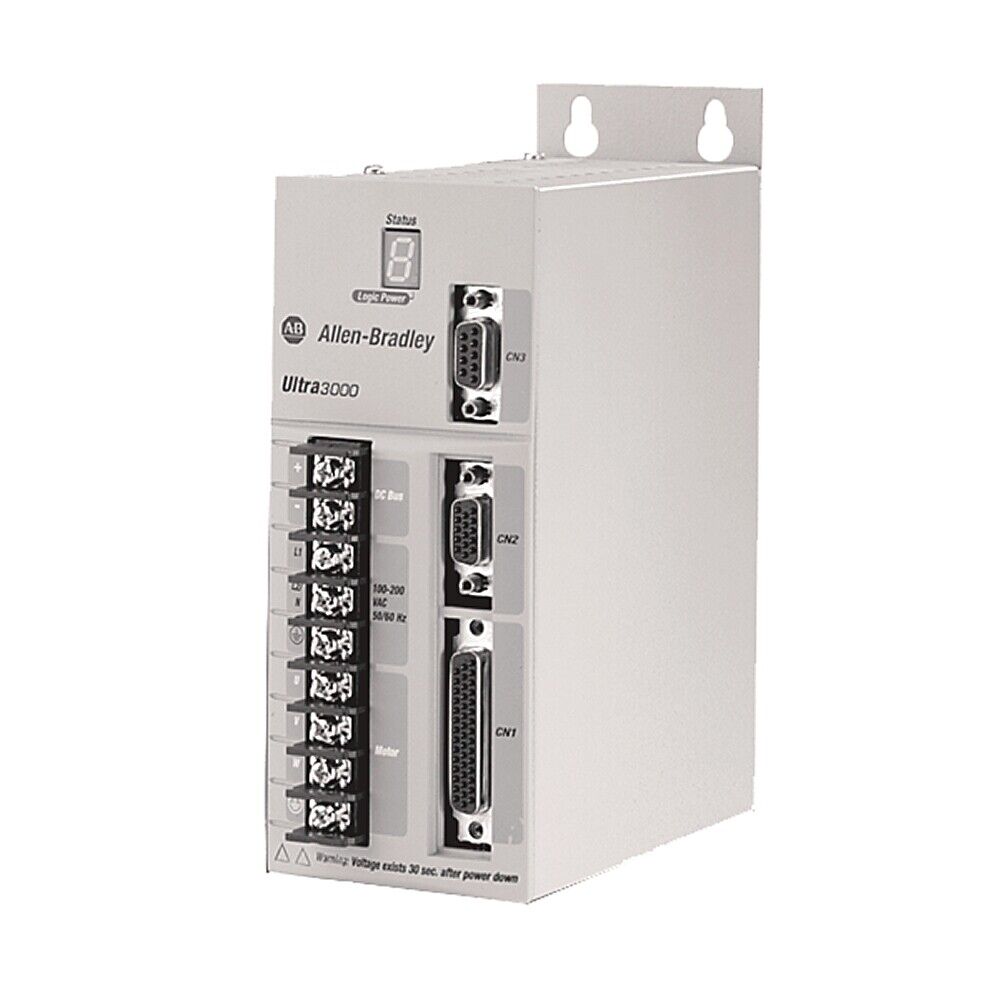

The Allen-Bradley 2098-DSD-020-SE is an Ultra3000 digital servo drive with integrated SERCOS interface, designed for high- performance, high-speed motion control applications. It provides up to 20 A peak output current and supports precise control of rotary and linear servo motors. With advanced diagnostics, flexible feedback support, and compatibility with RSLogix and UltraWARE software, it is ideal for multi-axis systems requiring tight synchronization and integration.

Key Features

• 20 A peak, 10 A continuous output current
• Integrated SERCOS digital fiber- optic interface
• Supports VPL, MPL, and other Allen-Bradley servo motors
• Multiple feedback options including EnDat, SSI, resolver, and incremental encoders
• DIN or panel mountable compact design
• Built-in diagnostic LEDs and fault indication
• Compatible with UltraWARE and Studio 5000 environments

Technical Specifications

• Input Voltage: 120–240V AC, 1-phase or 3-phase
• Output Current: 20 A peak, 10 A continuous
• Communication: SERCOS (fiber-optic)
• Feedback Support: Resolver, EnDat, SSI, incremental encoders
• Digital Inputs: 8
• Digital Outputs: 4
• Analog Inputs: 2
• Motor Types: Rotary and linear servo motors
• Mounting: Panel or DIN rail
• Cooling: Internal fan-cooled
• Operating Temperature: 0°C to 50°C (32°F to 122°F)

Application Areas

• Multi-axis motion systems
• Pick-and-place machines
• Packaging and bottling lines
• Material handling and robotics
• Precision converting and labeling systems

Advantages

• Reliable, high-speed communication with SERCOS interface
• Compact, scalable solution for small to medium axis loads
• Flexible feedback compatibility for diverse applications
• Built-in diagnostics reduce troubleshooting time
• Seamless integration with Rockwell Automation controllers
