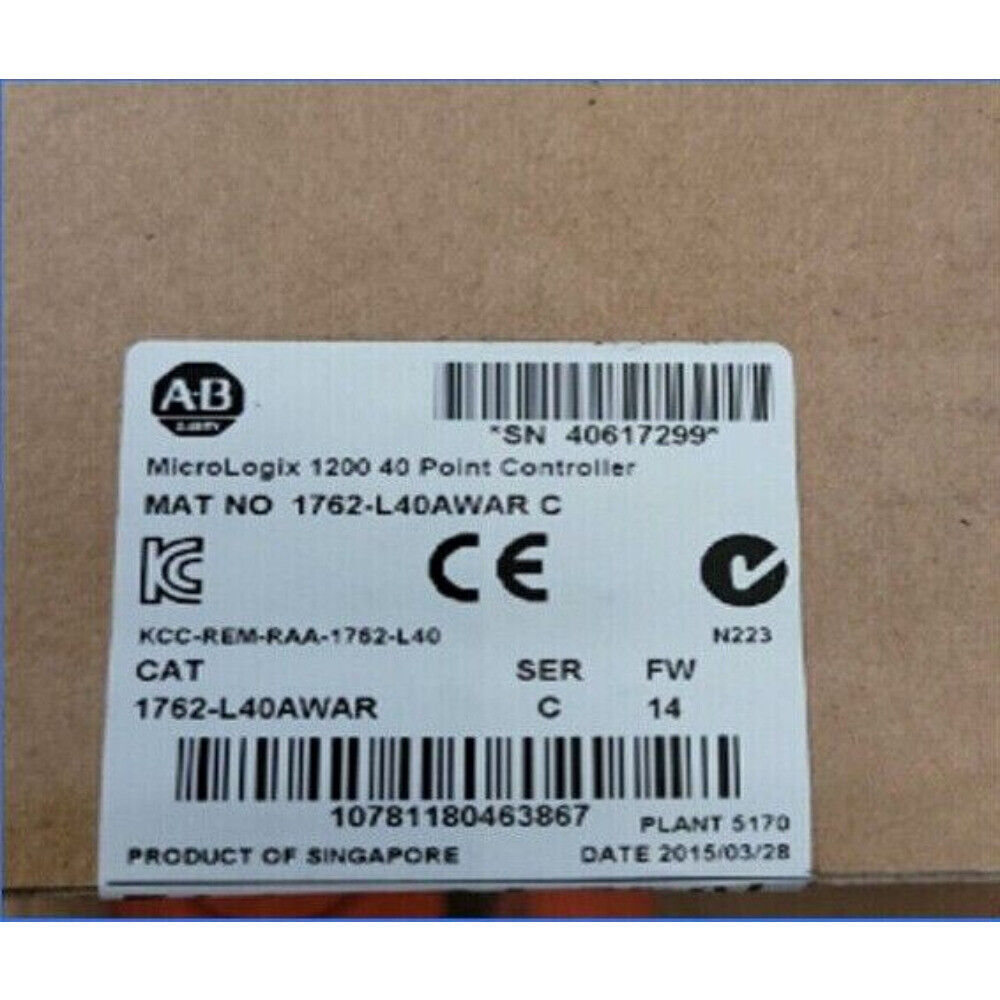

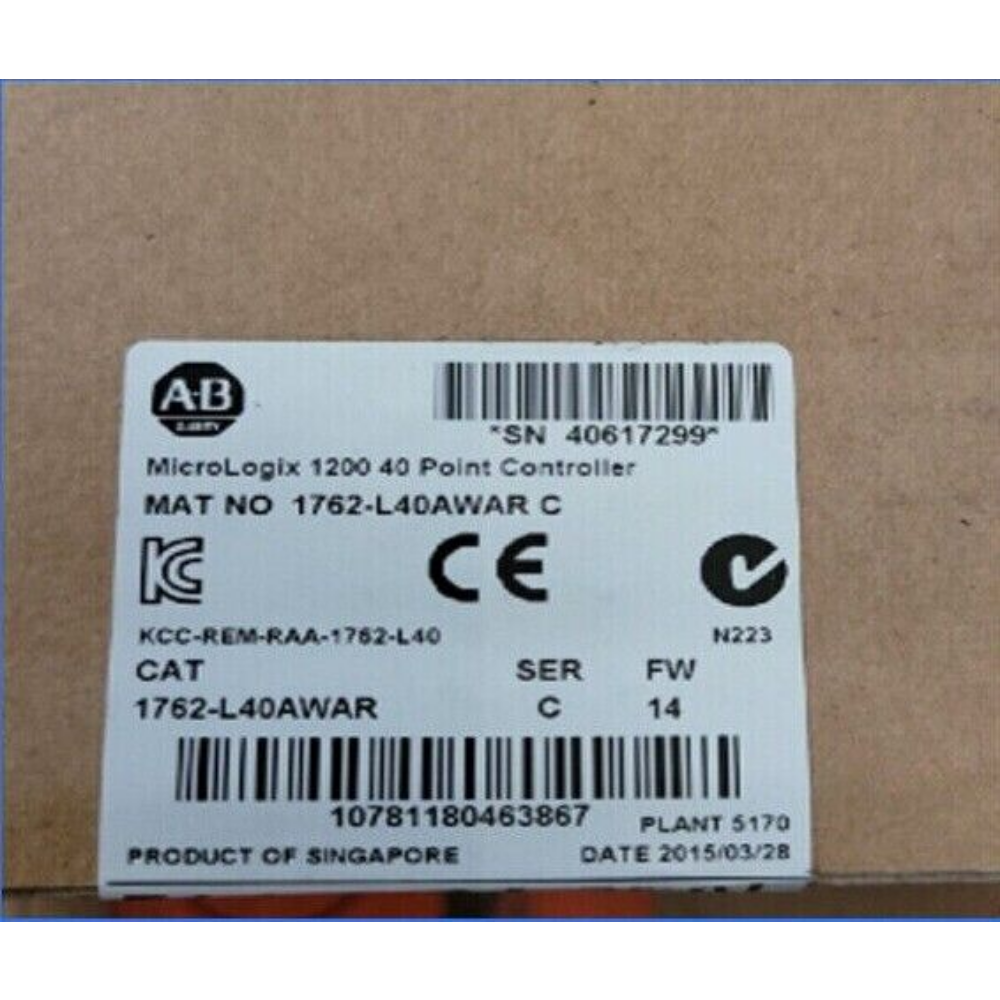

MicroLogix 1200 | Allen-Bradley | 1762-L40AWAR MicroLogix 1200 40 Point Controller Spot Goods Brand New in Box!

Product Description: Allen-Bradley 1762-L40AWA

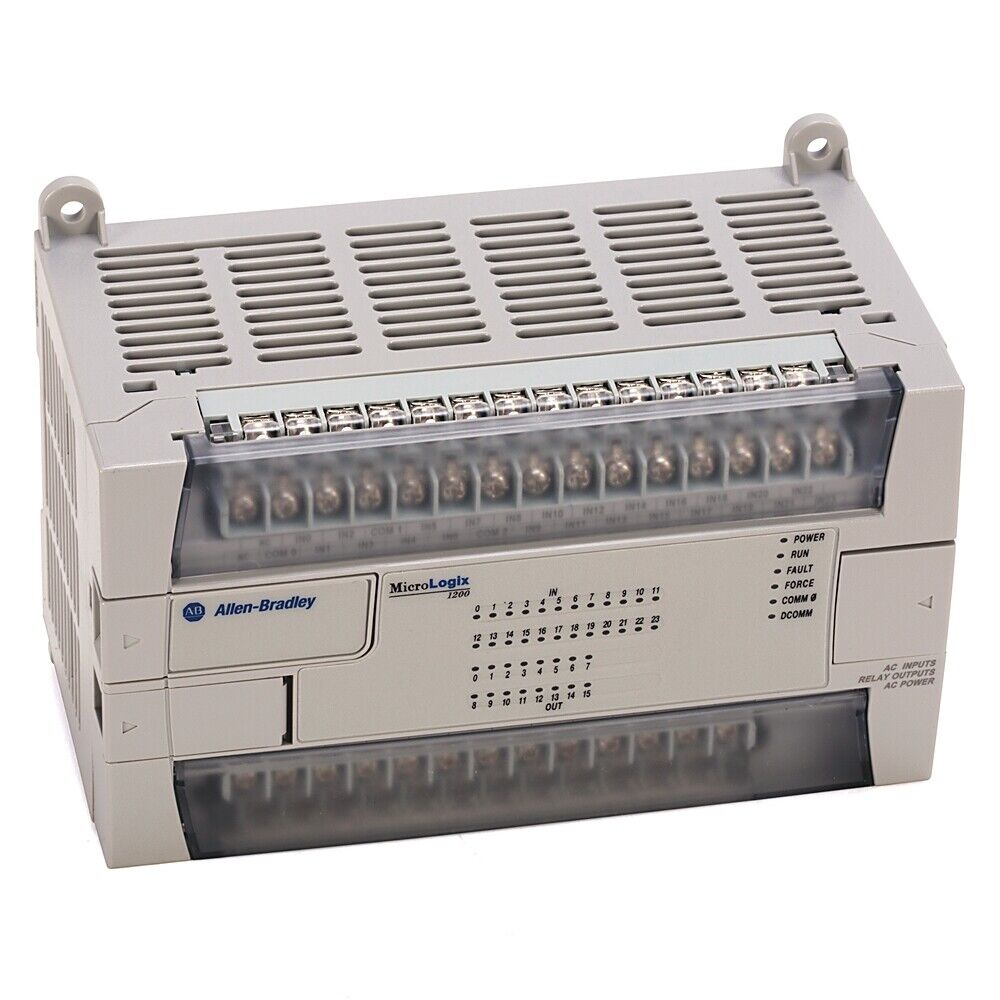

The Allen-Bradley 1762-L40AWA is a MicroLogix 1200 controller equipped with AC input sensing and relay output switching, ideal for small to mid-sized automation tasks. It offers a total of 40 digital I/O points and supports expansion via MicroLogix 1762 I/O modules. Designed for simplicity and reliability, this model is well-suited for industrial applications that utilize high-voltage input signals and require flexible output control.

Key Features

• 40 total embedded I/O points:
• 24 digital inputs (120V AC)
• 16 relay outputs (AC/DC switching capability)
• Built-in RS232/RS485 combo communication port
• Supports up to 6 MicroLogix 1762 expansion I/O modules
• 6 high-speed counter inputs (DC only)
• Program and data retention via battery-backed memory
• Compact and rugged design for industrial environments

Technical Specifications

• Digital Inputs: 24 (120V AC)
• Relay Outputs: 16 (mechanical relays, up to 2A per point, 8A per common)
• Communication Port: 1 × RS232/RS485 combo
• User Memory: 7 KB
• Expansion Capability: Supports up to 6 additional 1762 I/O modules
• High-Speed Counter Inputs: 6 (DC signals required)
• Power Supply: 120/240V AC
• Mounting: DIN rail or panel mount
• Operating Temperature: 0°C to 55°C
• Dimensions: Approx. 90 x 150 x 87 mm (H x W x D)

Application Areas

• Industrial control panels with AC sensors and actuators
• Small conveyor or machine control systems
• Building automation and environmental control
• Packaging and bottling equipment
• OEM machinery requiring flexible relay outputs

Advantages

• Handles high-voltage input directly with no need for conversion
• Relay outputs support both AC and DC load control
• Expandable architecture supports future system growth
• Easy integration with legacy and modern communication networks
• Compact design helps reduce panel space and installation time
