Allen-Bradley | 1756-L82ES | GuardLogix5580

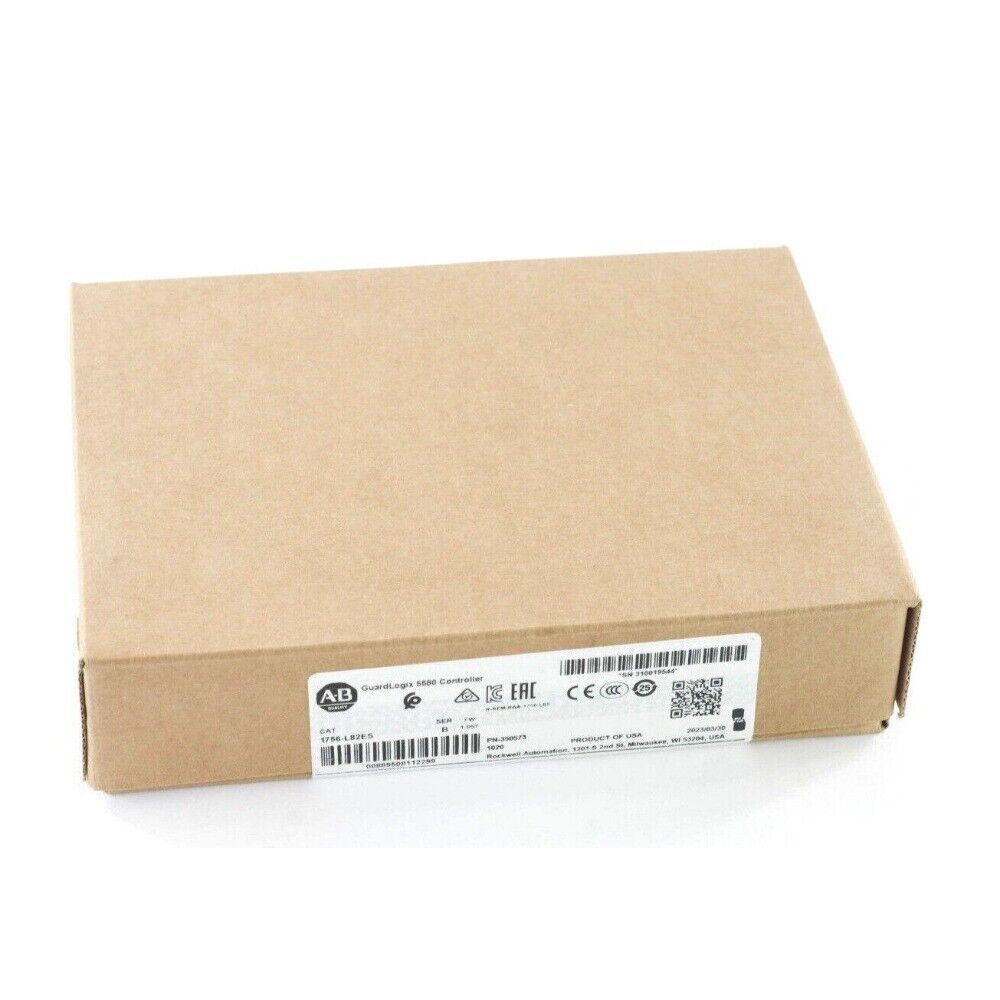

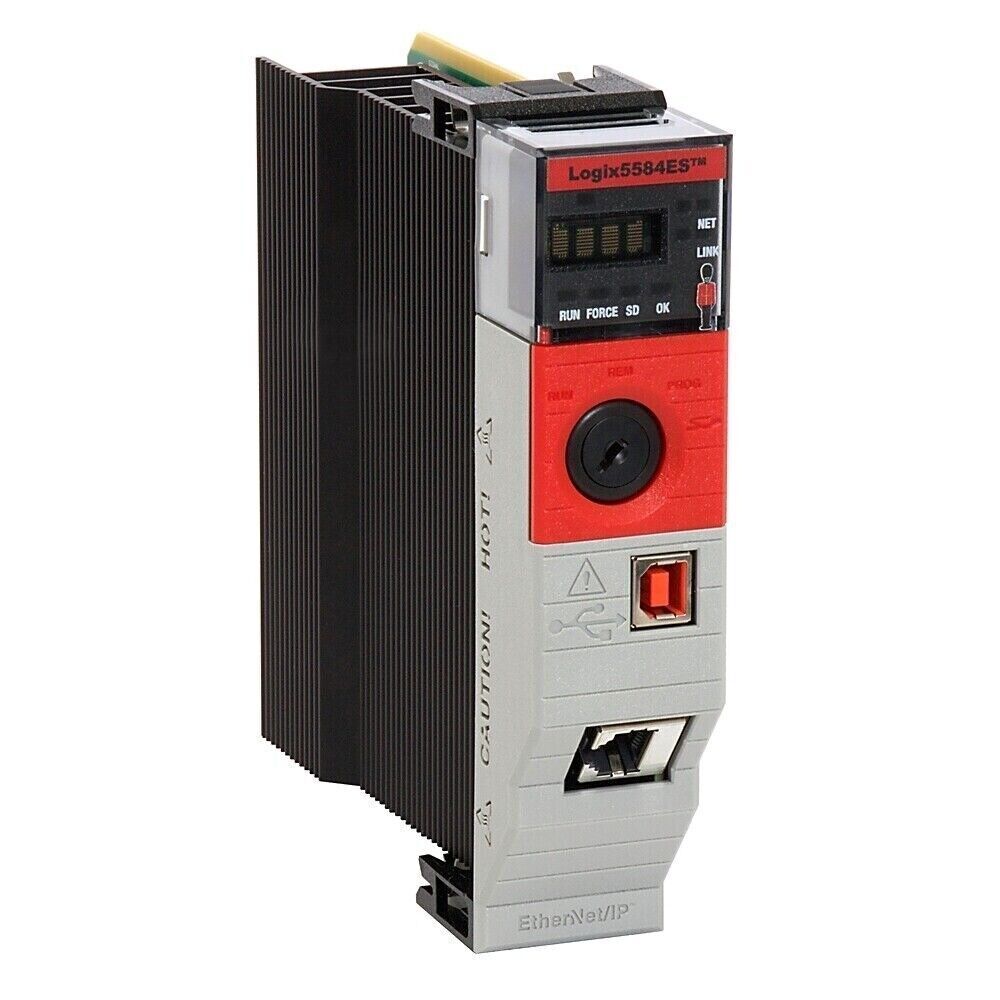

Product Description: Allen-Bradley 1756-L82ES

The Allen-Bradley 1756-L82ES is a high-performance GuardLogix 5580 controller that combines standard logic and safety control in a single unit. It provides 10 MB of standard user memory and 5 MB of safety memory and is designed for demanding applications that require integrated functional safety, high-speed processing, and large I/O capacity. This controller supports SIL 3 / PLe / Category 4 safety applications and integrates seamlessly with Studio 5000 and Logix-based architectures.

Key Features

• 10 MB standard logic memory
• 5 MB safety memory for safety-certified applications
• Supports up to 300 EtherNet/IP devices and 256 nodes
• Up to 100 safety devices and 40 safety axes
• 1 GB embedded EtherNet/IP port (dual ports for DLR or star topology)
• Supports integrated motion over EtherNet/IP
• Built-in security features: controller-based user authentication and authorization
• Enhanced processing speed and I/O responsiveness
• Compatible with Studio 5000 Logix Designer software
• Ideal for large-scale safety-critical and motion-intensive systems

Technical Specifications

• Standard Memory: 10 MB
• Safety Memory: 5 MB
• Safety Rating: SIL 3, PLe, Category 4
• Communication:
• 2 x EtherNet/IP ports (1 Gbps, embedded switch)
• 1 x USB 2.0 (programming and diagnostics)
• Motion Control: Up to 100 motion axes over EtherNet/IP
• Safety Devices: Up to 100 supported
• Safety Axes: Up to 40
• I/O Capacity: Up to 300 EtherNet/IP modules
• Backplane Compatibility: ControlLogix 1756 chassis
• Power Consumption: 5V DC, 1.5 A
• Operating Temperature: 0°C to +60°C
• Mounting: Chassis mount (1756 series)
• Enclosure: Open type (IP20)
• Certifications: UL, CE, cULus, TÜV, RoHS

Application Areas

• Large-scale safety automation systems
• Automotive production lines
• High-speed packaging and converting systems
• Chemical and process industries requiring functional safety
• Complex material handling with coordinated motion and safety control

Advantages

• Combines high-performance logic and certified safety in one controller
• Reduces panel space and wiring through integration
• Supports extensive motion and I/O with fast cycle times
• Enhanced cybersecurity features for modern industrial networks
• Simplifies safety compliance through integrated safety diagnostics and programming
