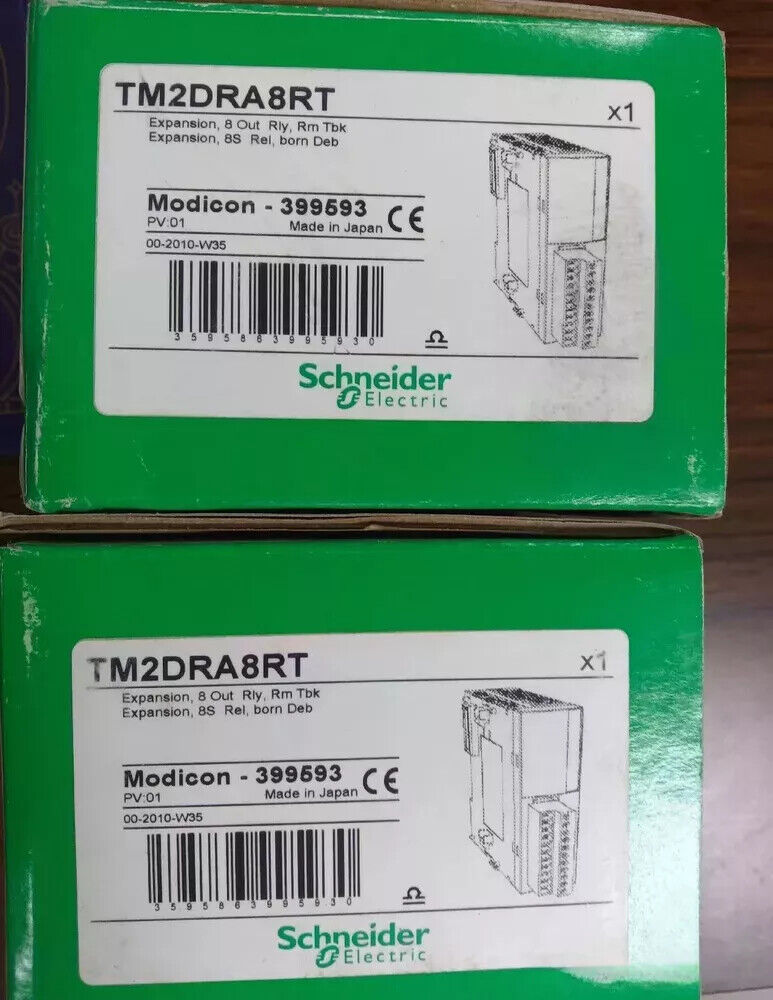

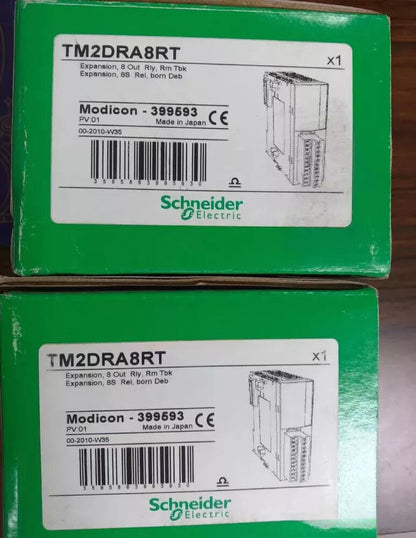

Product Description: Schneider Electric TM2DRA8RT

The Schneider Electric TM2DRA8RT is an 8-channel discrete output module in the Modicon TM2 range, designed to expand the I/O capabilities of Twido and Modicon logic controllers. It offers 8 relay outputs that support both AC and DC voltage switching, making it ideal for general- purpose industrial control applications requiring isolated load control.

Key Features

• 8 relay output channels
• Output voltage range: 24 VDC to 250 VAC
• Maximum output current: 2 A per channel
• Output type: Relay contacts (SPST – normally open)
• Outputs grouped into 1 group of 8 with shared common
• Integrated LED indicators for each channel
• Removable terminal block for wiring convenience
• DIN rail mountable

Technical Specifications

• Minimum switching voltage: 5 V
• Minimum switching current: 10 mA
• Maximum resistive load: 2 A at 250 VAC or 30 VDC
• Total current for module: 8 A max
• Contact life: 100,000 cycles at full load
• Response time: ON and OFF ≤ 10 ms
• Electrical isolation: 500 V between channels and logic circuits
• Power supply: Provided by the base controller
• Operating temperature: 0°C to +55°C
• Storage temperature: -40°C to +70°C
• Relative humidity: 5% to 95% non- condensing
• Protection rating: IP20
• Dimensions (W x H x D): Approx. 35 mm x 90 mm x 70 mm
• Weight: Approx. 0.2 kg

Application Areas

• Industrial machine control
• Lighting and solenoid valve actuation
• Building automation
• General-purpose switching of AC/DC loads
• OEM panel designs requiring modular output expansion

Advantages

• Relay outputs support both AC and DC switching
• Electrically isolated channels improve system safety
• Compact modular design saves panel space
• LED status indicators aid in diagnostics
• Compatible with Twido and Modicon logic controllers
