Modicon TM2| Schneider | TM2DRA16RT PLC Module Fast Shipping New In Box

Product Description: Schneider Electric TM2DRA16RT

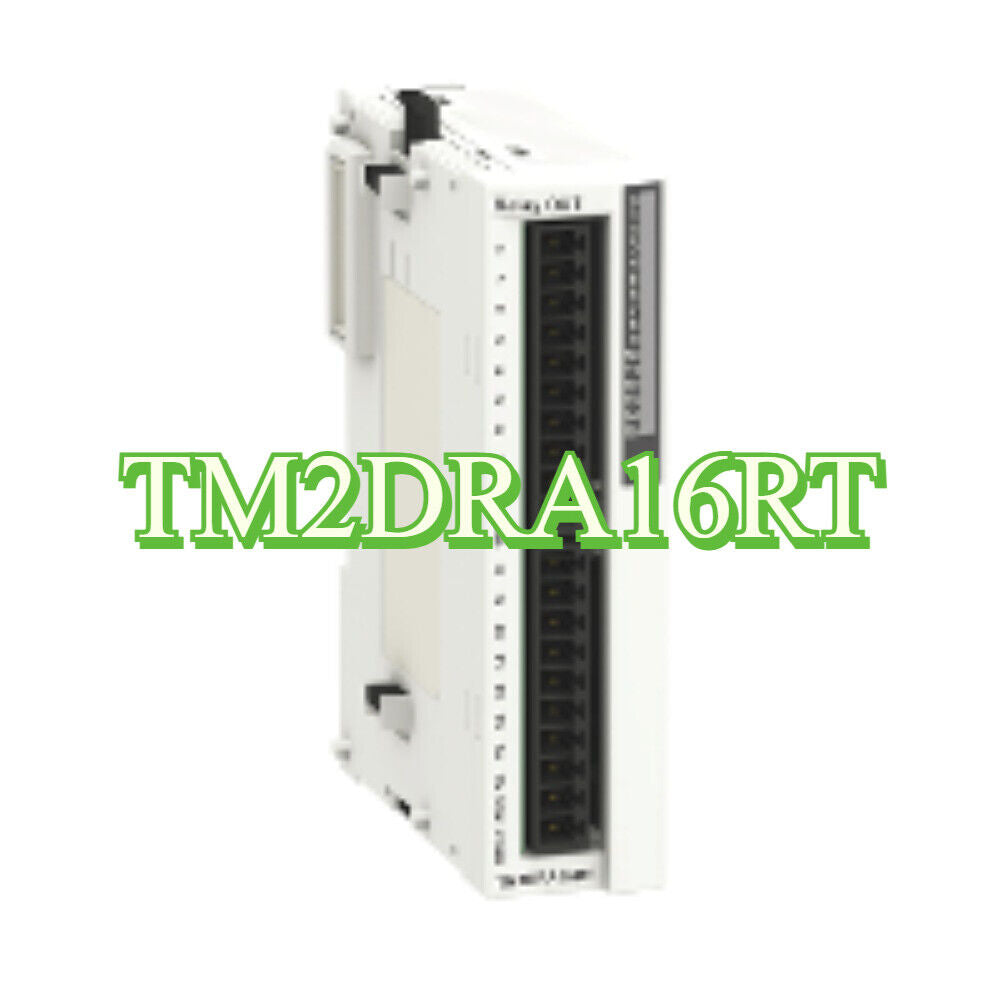

The Schneider Electric TM2DRA16RT is a discrete output expansion module for the Modicon TM2/Twido programmable logic controller platforms. It provides 16 relay-type output channels, capable of switching both AC and DC loads. This module is ideal for applications requiring electrical isolation and flexible output switching within compact machine control systems.

Key Features

• 16 discrete relay output channels
• Output type: Relay (mechanical contacts)
• Rated voltage: 24 VDC / 250 VAC
• Output current: 2 A per channel
• Electrical isolation between channels
• Common point grouping: 2 groups of 8 channels
• LED indicators for output status
• Removable terminal blocks for easy wiring
• DIN rail mountable

Technical Specifications

• Minimum switching voltage: 5 V
• Minimum switching current: 10 mA
• Maximum resistive load: 250 VAC or 30 VDC, 2 A
• Total module output current: 8 A max
• Relay response time: Typically ≤10 ms (ON/OFF)
• Electrical durability: 100,000 cycles at rated load
• Mechanical durability: ≥10 million operations
• Power supply: Via TM2 bus from main controller
• Operating temperature: 0°C to +55°C
• Storage temperature: -40°C to +70°C
• Protection rating: IP20
• Dimensions (W x H x D): Approx. 35 mm x 90 mm x 70 mm
• Weight: Approx. 0.2 kg

Application Areas

• Machine automation
• Packaging and labeling systems
• Material handling and conveyors
• General-purpose industrial control
• OEM equipment requiring isolated output switching

Advantages

• Relay outputs support both AC and DC loads
• Electrically isolated channels improve system reliability
• Compact and modular design for space-constrained panels
• Easy installation and maintenance with removable terminals
• Seamless integration with TM2/Twido PLC architectures
