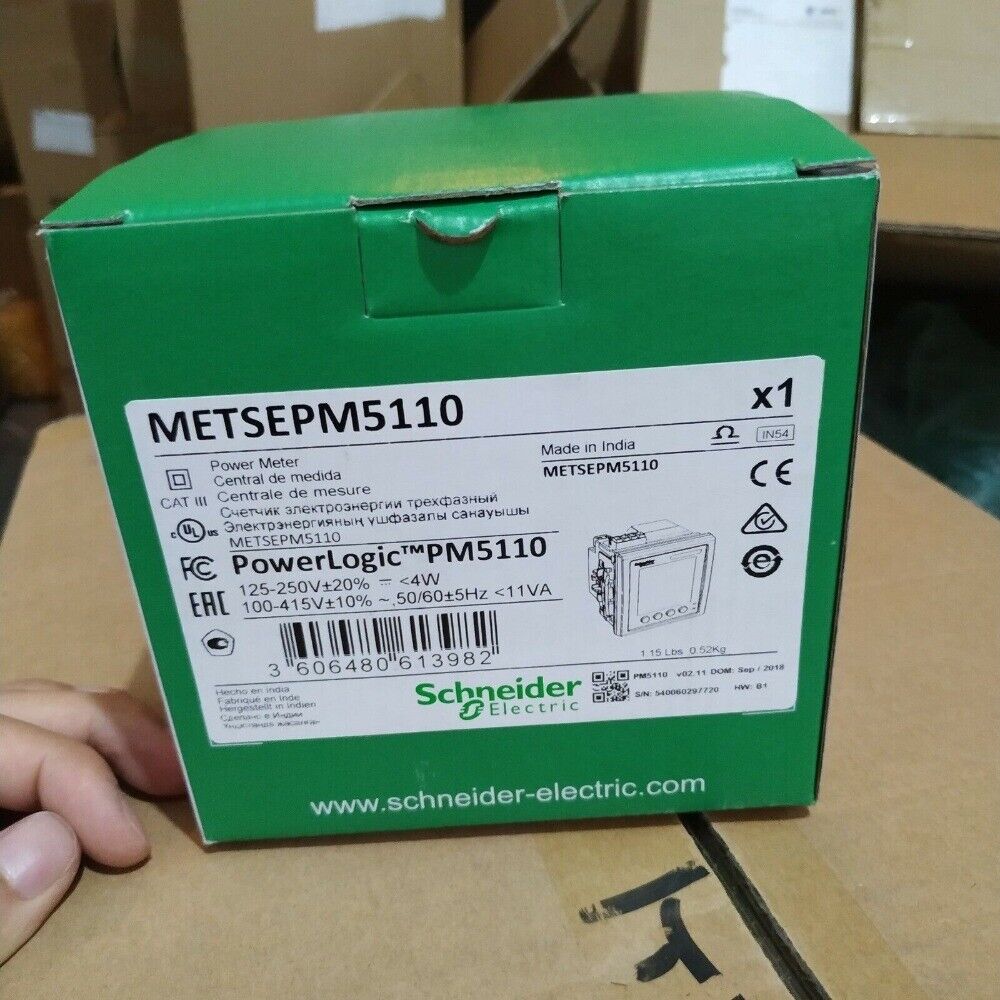

Product Description: Schneider Electric METSEPM5110

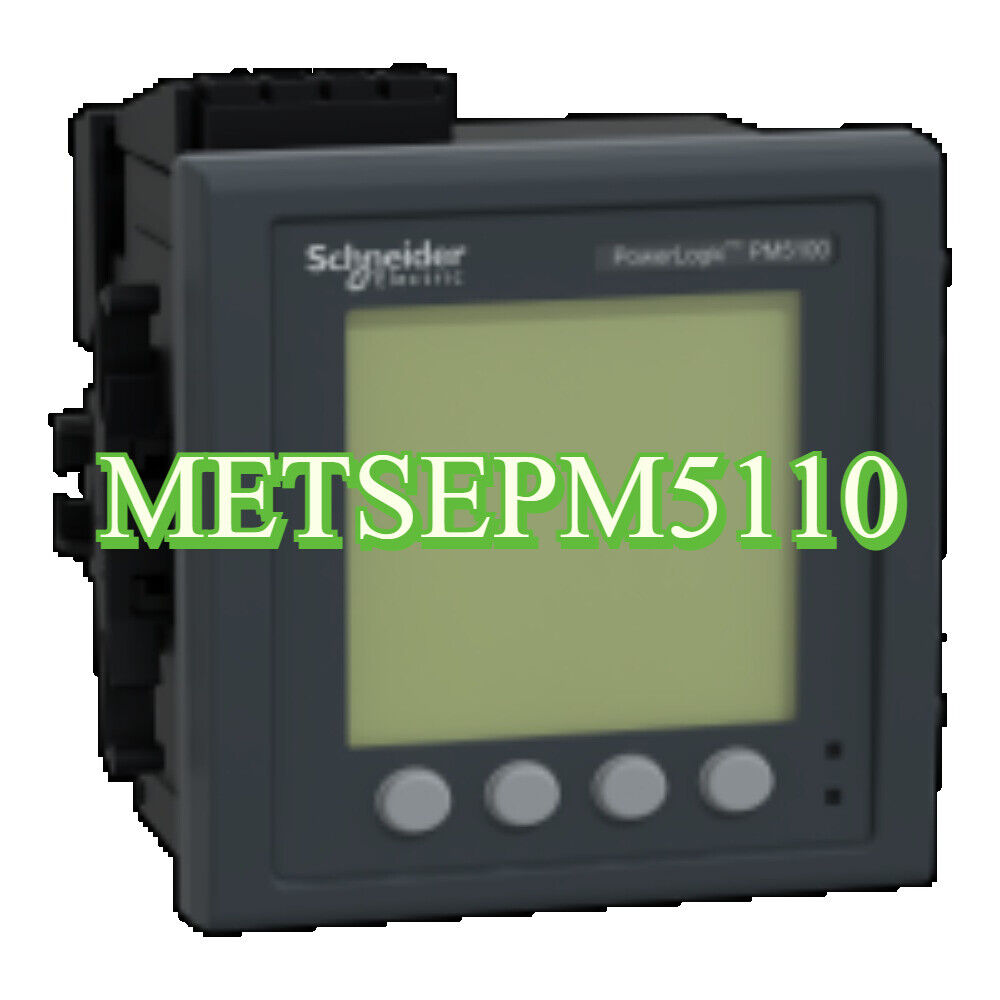

The Schneider Electric METSEPM5110 is a multifunction power meter from the PowerLogic PM5000 series, designed for accurate and real- time monitoring of electrical parameters in low-voltage networks. It features a compact 96 x 96 mm form factor, large LCD display, and essential energy and power measurements for energy management and cost allocation applications.

Key Features

• Suitable for 3-phase and single-phase systems
• Voltage and current measurement (true RMS)
• Power measurements: Active, reactive, apparent power
• Energy measurements: kWh, kVARh (import/export/total)
• Power factor, frequency, demand monitoring
• Class 1 accuracy (active energy) according to IEC 62053-21
• Backlit LCD screen with 4 lines and navigation keys
• Modbus RTU communication via RS485 port
• Compact size with DIN 96 x 96 mm panel cutout
• Pulse output for energy metering or alarms

Technical Specifications

• Rated voltage: 277/480 V AC (phase to neutral/phase to phase)
• Input voltage range: 57 to 276 V L-N, 100 to 480 V L-L
• Rated current: 1 A or 5 A via external CTs
• Frequency: 50/60 Hz ±5%
• Display resolution: 0.001 for kW, kVA, and PF
• Communication: RS485, Modbus RTU (2-wire)
• Power supply: 100 to 415 V AC or 125 to 250 V DC
• Operating temperature: -25°C to +70°C
• Storage temperature: -40°C to +85°C
• Protection rating: IP52 (front), IP30 (body)
• Mounting: Panel mount
• Dimensions (W x H x D): 96 mm x 96 mm x approx. 72 mm
• Weight: Approx. 0.4 kg

Application Areas

• Commercial and industrial energy monitoring
• Electrical distribution panels
• Power factor correction and load management
• Data centers and facility management systems
• Cost allocation and sub-metering

Advantages

• Provides essential electrical measurements for cost and energy management
• Easy installation with panel-mount design
• Communication- ready for integration into energy management systems
• Reliable and accurate metering in harsh environments
• Ideal entry-level solution for basic energy monitoring
