Product Description: Schneider Electric XBTN401

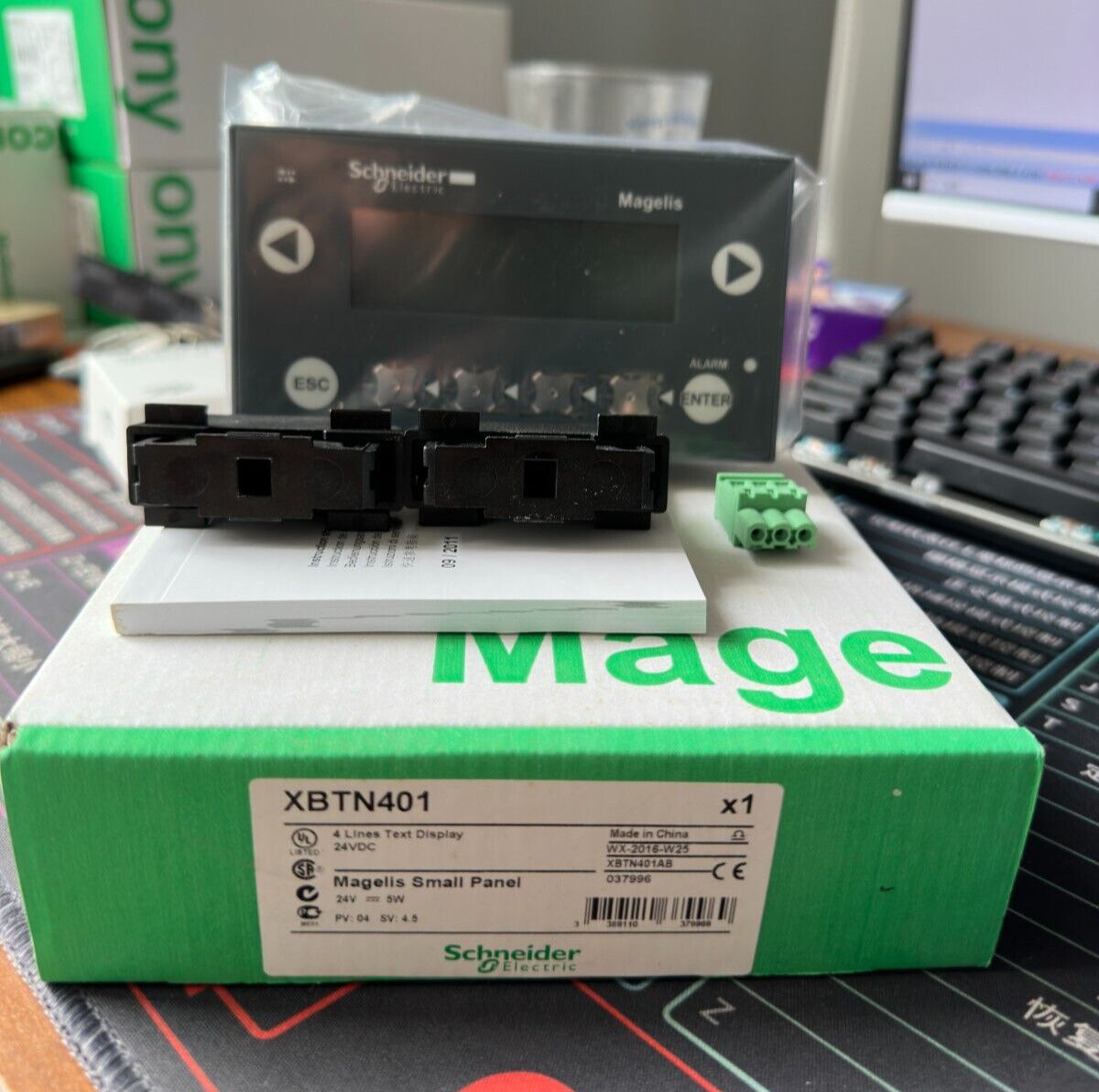

The Schneider Electric XBTN401 is an operator terminal from the Magelis XBT-N series, designed for basic machine interface operations. It features a monochrome LCD display with four lines of 20 characters and is equipped with a keypad interface. This terminal supports Modbus communication via RS485 and is suitable for simple control and monitoring tasks in compact automation systems.

Key Features

• Display: Monochrome LCD, 4 lines of 20 characters
• Communication: RS485 serial port (Modbus protocol)
• Input method: Keypad with tactile membrane keys
• Supply voltage: 24 V DC
• Backlighting: LED, with auto-off function
• Compatible software: XBTL1000 for configuration
• Front panel sealing: IP65 when mounted

Technical Specifications

• Display area: 73 mm x 25 mm
• Viewing angle: 45° horizontal, 20° vertical
• Power consumption: Approximately 5 W
• Memory: Internal memory for messages and configuration
• Communication port: 1 x RS485 (Modbus RTU)
• Operating temperature: 0°C to +50°C
• Storage temperature: -20°C to +60°C
• Relative humidity: 10% to 85% non-condensing
• Dimensions (W x H x D): 138 mm x 98 mm x 43 mm
• Panel cut-out: 119 mm x 92 mm
• Weight: Approximately 0.4 kg

Application Areas

• Compact industrial machines
• Pump and fan control panels
• HVAC systems
• Water treatment equipment
• OEM control panels requiring basic HMI functions

Advantages

• Simple and cost- effective interface for basic applications
• Easy configuration with Schneider’s XBTL1000 software
• Reliable keypad operation in industrial environments
• Compact design fits into space-constrained panels
• Front panel sealing ensures protection in dusty or humid areas
