Harmony GXU | Schneider | HMIGXU5512 Touch Screen Free Shipping New In Box

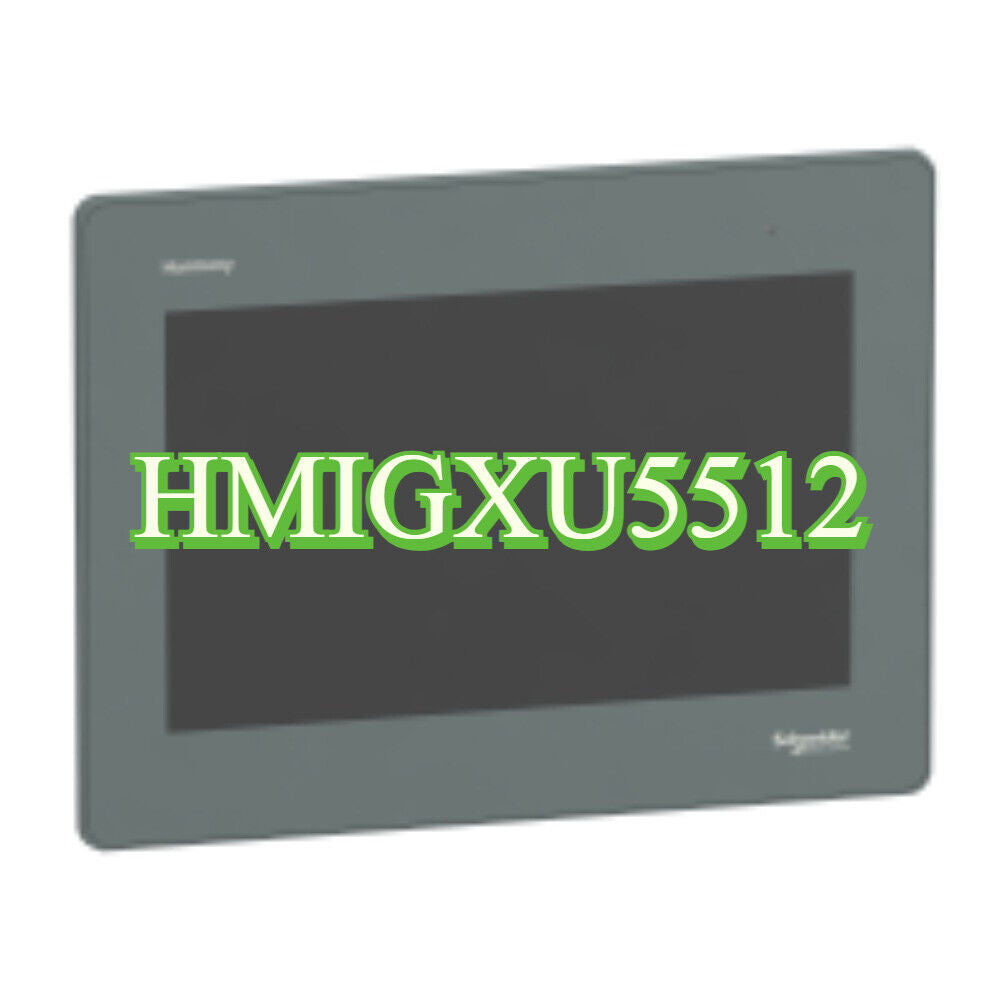

Product Description: Schneider Electric HMIGXU5512

The Schneider Electric HMIGXU5512 is an advanced graphic terminal from the Harmony GXU series, designed for machine and process operator interface applications. It features a 12.1-inch TFT touchscreen with 800 x 600 resolution and supports multiple communication interfaces, including Ethernet, serial, and USB ports. This HMI is ideal for integration with Schneider Electric PLCs and other industrial automation systems.

Key Features

• Display size: 12.1 inches
• Display type: TFT LCD with LED backlight
• Resolution: 800 x 600 pixels (SVGA)
• Touchscreen: Resistive, 1024 x 1024 resolution
• Color support: 65,536 colors
• Processor: 32-bit RISC CPU
• Memory:
  • Application memory: 128 MB Flash
• Built-in interfaces:
  • 1 x Ethernet port (10/100 Mbps)
• Input voltage: 24 VDC (18–30 VDC range)

Technical Specifications

• Backlight lifespan: Approx. 50,000 hours
• Rated power consumption: 13.2 W
• Operating temperature: 0°C to +50°C
• Storage temperature: -20°C to +60°C
• Relative humidity: 10% to 90%, non-condensing
• Protection rating: IP65 (front), IP20 (rear)
• Panel cutout dimensions: 301 mm x 227 mm
• Overall dimensions (W x H x D): 317 mm x 243 mm x 56 mm
• Weight: Approx. 2.5 kg

Application Areas

• Machine operation and monitoring
• Process control and supervision
• Packaging and labeling equipment
• Food and beverage production lines
• Water treatment and HVAC systems

Advantages

• High-resolution display with intuitive touchscreen interface
• Wide connectivity with Ethernet, USB, and serial ports
• Compatible with EcoStruxure Machine Expert and Vijeo Designer
• Fanless design with long operating life
• Compact installation with robust environmental resistance
