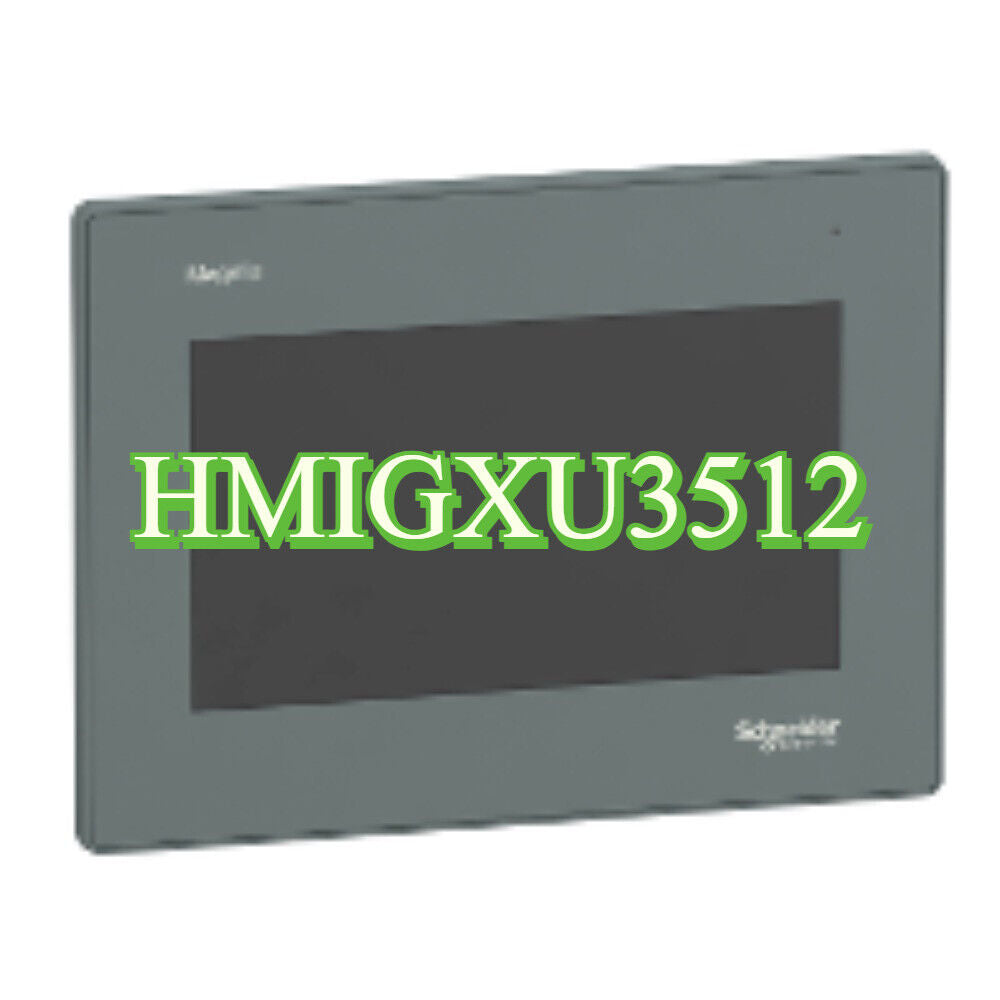

Harmony GXU | Schneider | HMIGXU3512 Touch Screen HMIGXU3512 Fast Shipping

Product Description: Schneider Electric HMIGXU3512

The Schneider Electric HMIGXU3512 is a high-performance 7-inch HMI from the Harmony GXU series, built for modern industrial control applications. Featuring a bright, wide-format TFT touchscreen with 800 x 480 resolution, it offers reliable and intuitive operator interface functionality. The device includes Ethernet, serial, and USB ports, providing flexible connectivity for automation systems.

Key Features

• Display size: 7 inches
• Display type: TFT LCD with LED backlight
• Resolution: 800 x 480 pixels (WVGA)
• Touchscreen type: Analog resistive
• Color display: 65,536 colors (16-bit)
• Processor: 32-bit RISC CPU
• Memory:
  • Flash memory: 128 MB
• Communication interfaces:
  • 1 x Ethernet 10/100 Mbps (RJ45)
• 1 x SD card slot

Technical Specifications

• Power supply: 24 VDC (operating range 18–30 VDC)
• Power consumption: Approx. 8 W
• Backlight lifespan: ≥ 50,000 hours
• Operating temperature: 0°C to +50°C
• Storage temperature: -20°C to +60°C
• Relative humidity: 10% to 90%, non-condensing
• Protection rating:
  • Front: IP66
• Mounting: Panel mount (standard 186 mm × 127 mm cut-out)
• Dimensions (W x H x D): Approx. 200 mm × 146 mm × 56 mm
• Weight: Approx. 1.1 kg
• Programming software: EcoStruxure Operator Terminal Expert

Application Areas

• Industrial machine control panels
• Packaging and labeling systems
• HVAC and pump station management
• Utilities and infrastructure control
• General process monitoring and control

Advantages

• Compact and robust HMI for small to medium-sized applications
• High-resolution wide-screen display for clear visualization
• Versatile connectivity through Ethernet, serial, and USB
• SD card support for backup and data transfer
• Full integration with Schneider Electric automation solutions
