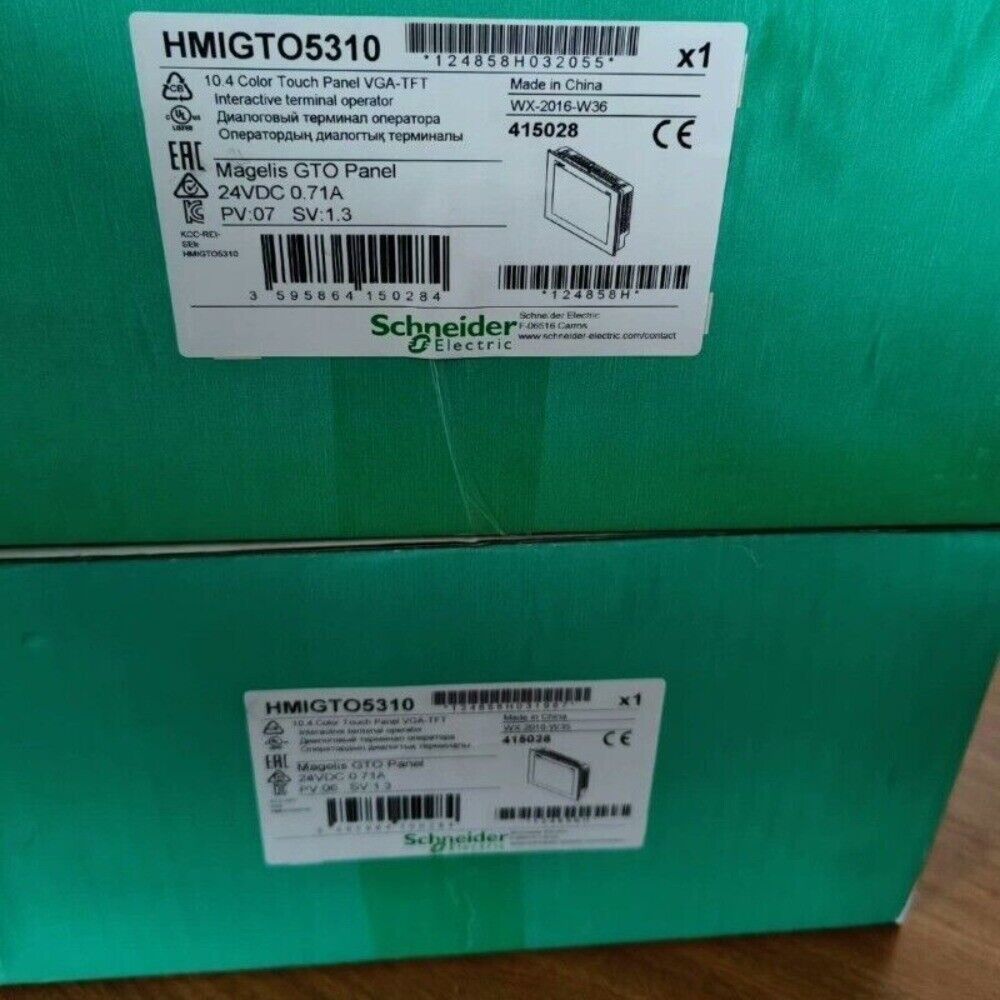

Product Description: Schneider Electric HMIGTO5310

The Schneider Electric HMIGTO5310 is an advanced HMI from the Harmony GTO series, featuring a 10.4-inch TFT color touchscreen. It provides high- resolution display capabilities, fast processing, and robust connectivity options including Ethernet, serial, and USB interfaces. This model is designed for high-performance machine and process operator interface tasks in industrial environments.

Key Features

• Display size: 10.4 inches
• Display type: TFT LCD with LED backlight
• Resolution: 640 x 480 pixels (VGA)
• Touchscreen type: Resistive
• Colors: 65,536 (16-bit)
• Processor: RISC 32-bit CPU
• Memory:
  • Application memory: 128 MB Flash
• Communication ports:
  • 1 x Ethernet 10/100 Mbps
• Backlight lifespan: Approx. 50,000 hours

Technical Specifications

• Input power: 24 VDC (18–30 VDC)
• Power consumption: 16 W
• Operating temperature: 0°C to +50°C
• Storage temperature: -20°C to +60°C
• Relative humidity: 10% to 90% non-condensing
• Protection rating:
  • Front: IP66
• Cut-out dimensions: 271 mm x 213 mm
• Overall dimensions (W x H x D): 288 mm x 226 mm x 56 mm
• Weight: Approx. 2.2 kg
• Programming software: Vijeo Designer

Application Areas

• Industrial machinery control panels
• Packaging and assembly systems
• Process control and SCADA integration
• Water treatment and HVAC
• Energy and utility management

Advantages

• High-performance graphics for complex visualization
• Multiple communication ports for flexible connectivity
• Long backlight life and rugged construction
• Easy integration into Schneider Electric automation systems
• Remote access and diagnostics via Ethernet
