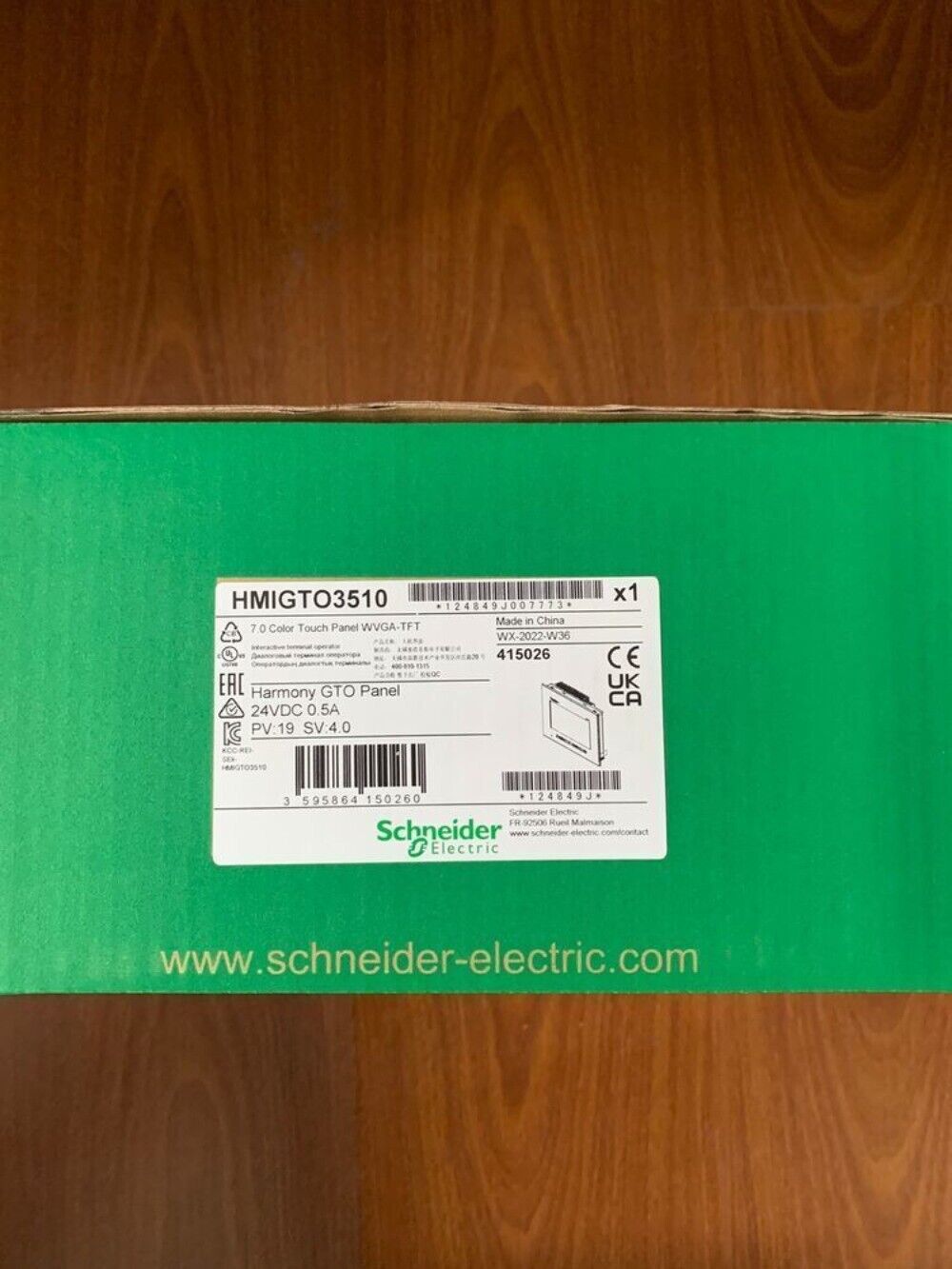

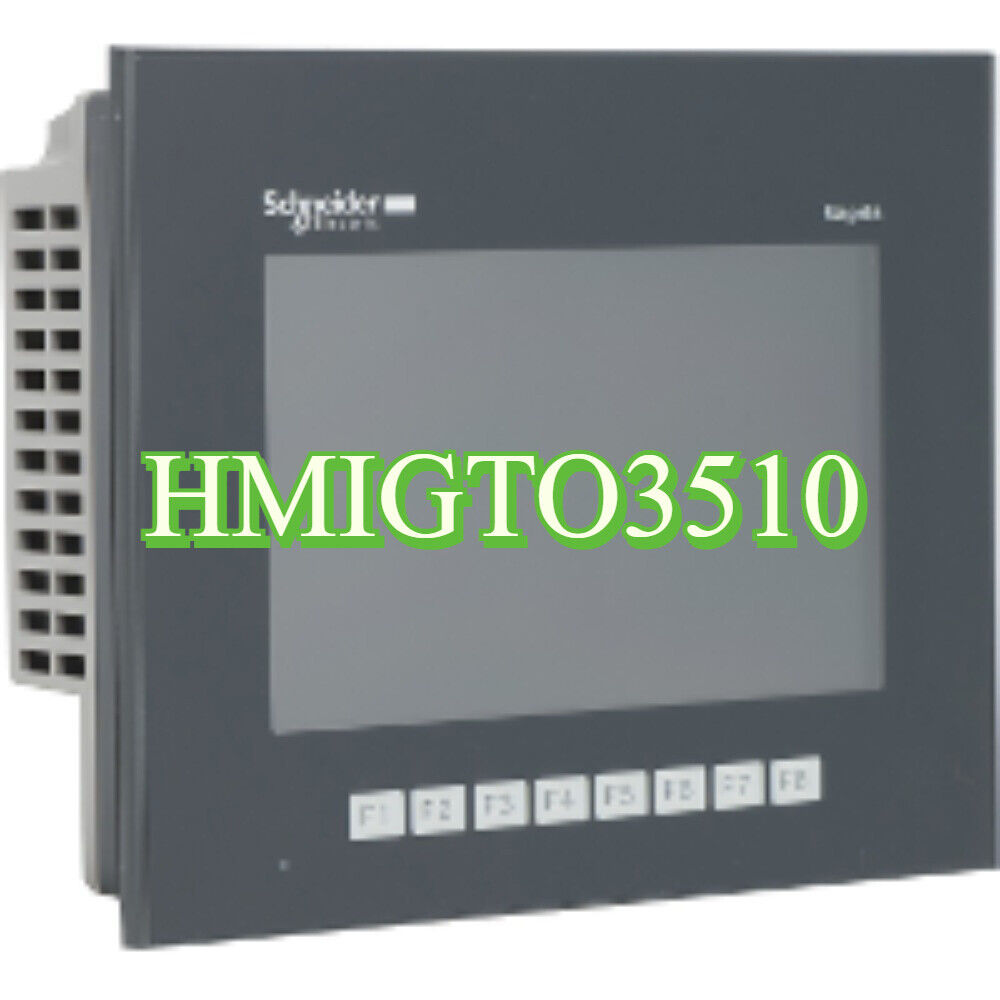

Product Description: Schneider Electric HMIGTO3510

The Schneider Electric HMIGTO3510 is a compact, high- performance HMI from the Harmony GTO series. It features a 7-inch widescreen TFT touchscreen designed for industrial machine interfaces, offering intuitive user interaction, flexible communication options, and excellent display clarity. It is suitable for both standalone and networked control panel applications.

Key Features

• Display size: 7 inches
• Display type: TFT color LCD with LED backlight
• Resolution: 800 × 480 pixels (WVGA)
• Touchscreen type: Analog resistive
• Color depth: 65,536 colors (16-bit)
• Processor: 32-bit RISC CPU
• Memory:
  • Flash memory: 128 MB
• Communication ports:
  • 1 x Ethernet 10/100 Mbps (RJ45)

Technical Specifications

• Power supply: 24 VDC (18–30 VDC)
• Power consumption: Approx. 10 W
• Backlight lifespan: 50,000 hours (typical)
• Operating temperature: 0°C to +50°C
• Storage temperature: -20°C to +60°C
• Relative humidity: 10% to 90%, non-condensing
• Protection rating:
  • Front: IP66
• Mounting type: Panel mount
• Panel cut-out dimensions: 186 mm × 127 mm
• Overall dimensions (W x H x D): Approx. 200 mm × 146 mm × 56 mm
• Weight: Approx. 1.0 kg
• Programming software: Vijeo Designer

Application Areas

• Machine control panels
• Packaging and bottling systems
• HVAC and building automation
• Pump stations and utility management
• Food and beverage processing lines

Advantages

• High-resolution, compact display with durable touchscreen
• Versatile communication for easy integration
• IP66-rated front face for industrial environments
• USB and SD card support for data backup and transfer
• Seamless compatibility with Schneider Electric automation platforms
