Lexium 62| Schneider | LXM62DD15D21000 Servo drives Brand New genuine product free shipping

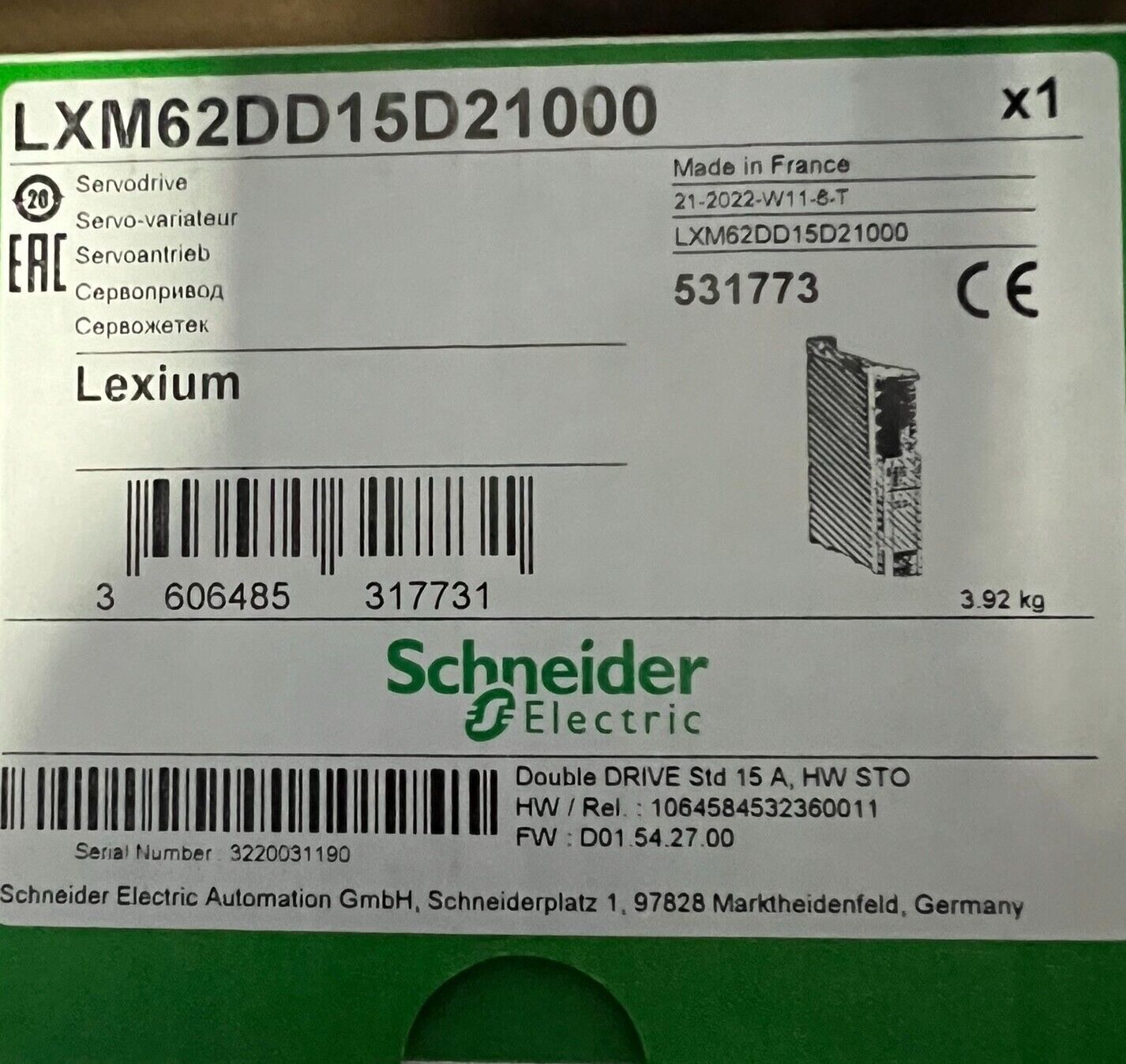

Product Description: Schneider Electric LXM62DD15D21000

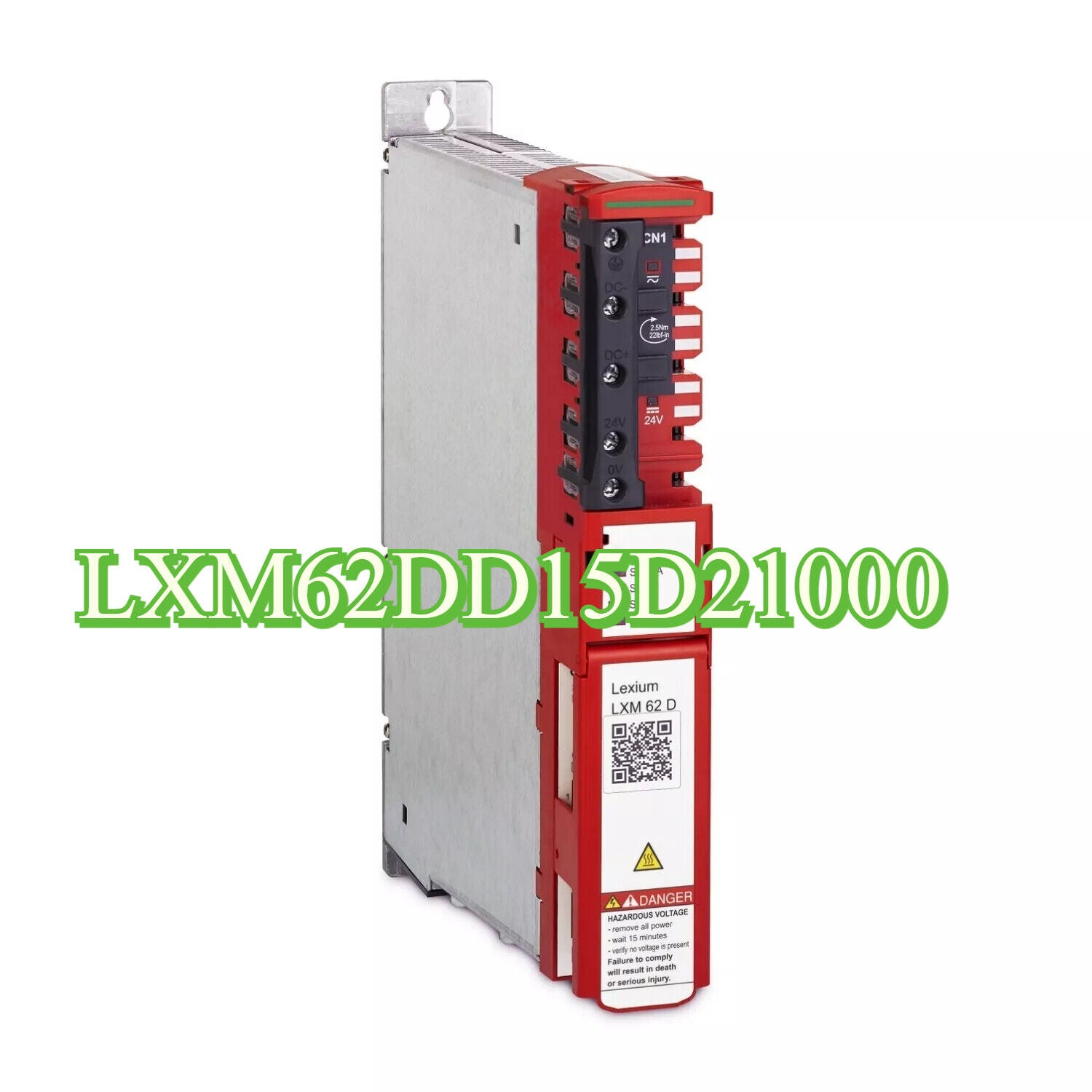

The Schneider Electric LXM62DD15D21000 is a Lexium 62 double drive module designed for multi-axis motion control applications in complex machines. It combines two servo drive channels into a single compact unit, each rated at 1.5 A continuous current. Operating with a DC bus voltage of 565 V DC, it is part of the PacDrive 3 automation platform and communicates via an integrated EtherCAT interface.

Key Features

• Dual-axis drive module
• Rated continuous current: 1.5 A per channel
• Maximum peak current: Up to 4.5 A per channel
• DC bus voltage: 565 V DC nominal
• Communication: Integrated EtherCAT interface
• Control modes: Position, velocity, and torque control
• Integrated diagnostics and status LEDs
• Fanless passive cooling
• Compact design for space-efficient installation

Technical Specifications

• Motor types supported: Synchronous servo motors (BCH2, BMH, BSH series)
• Bus communication: EtherCAT, cycle time ≤ 1 ms
• Power supply: Via shared DC bus from power supply module
• Cooling: Convection (fanless)
• Mounting: Panel or backplate, vertical position
• Protection rating: IP20
• Operating temperature: 0°C to +50°C
• Storage temperature: -25°C to +55°C
• Dimensions (W x H x D): Approx. 50 mm x 270 mm x 230 mm
• Weight: Approx. 3.5 kg

Application Areas

• Packaging machinery
• Printing and labeling systems
• Material handling and robotic applications
• Electronics and assembly lines
• Multi-axis automation systems

Advantages

• Compact dual-axis drive reduces panel space and wiring
• High performance with EtherCAT for fast, synchronized motion control
• Part of Schneider’s integrated PacDrive 3 architecture
• Fanless design minimizes maintenance
• Ideal for scalable, decentralized motion control solutions
