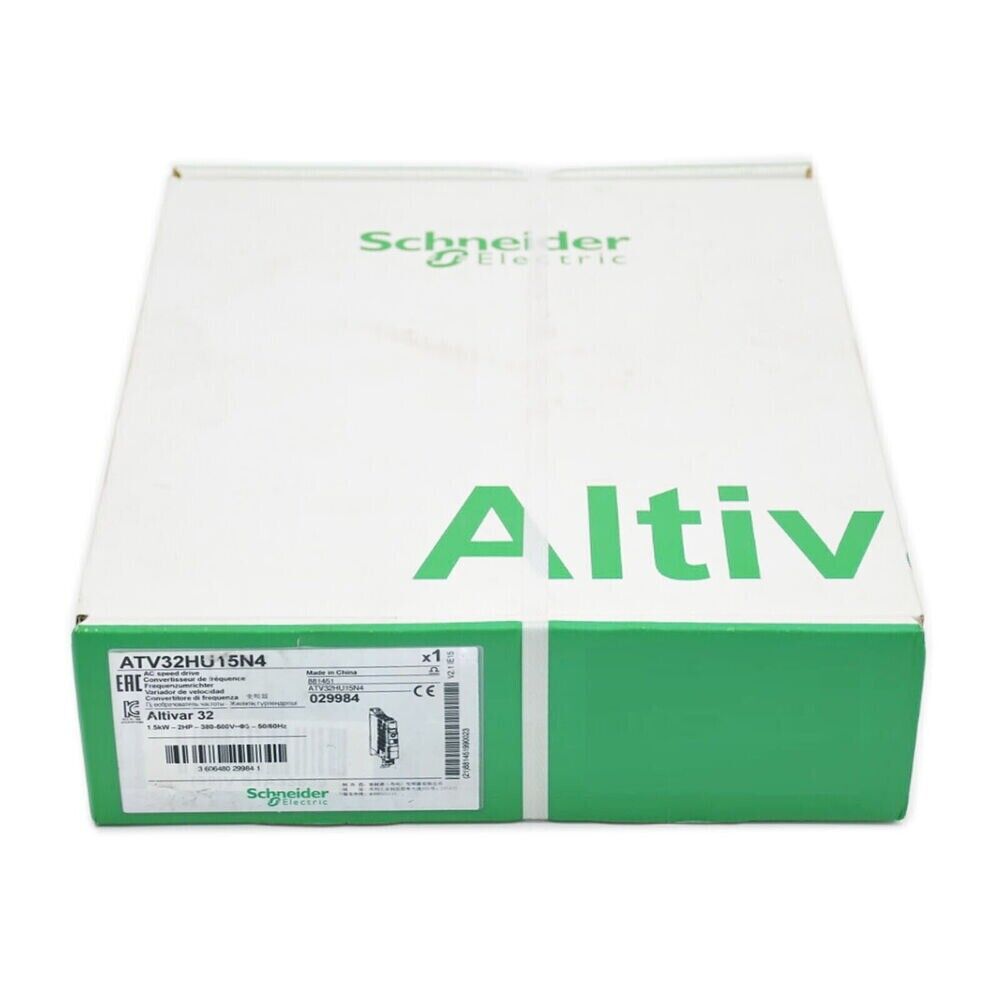

Altivar 32 (ATV32) | Schneider | ATV32HU15N4 Inverter ATV32HU15N4 New In Box Fast Shipping

Product Description: Schneider Electric ATV32HU15N4

The Schneider Electric ATV32HU15N4 is a high- performance variable speed drive designed for controlling three-phase asynchronous and synchronous motors in a wide range of industrial applications. With a rated power of 1.5 kW (2 HP), this drive operates on a 3-phase 380–500 V AC supply. It combines advanced motor control, integrated safety features, and communication capabilities in a compact design ideal for OEMs and machine builders.

Key Features

• Motor power rating: 1.5 kW (2 HP)
• Input voltage: 380–500 V AC, 3-phase
• Output voltage: 0–500 V AC, 3-phase
• Output frequency: 0.1 to 599 Hz
• Control modes: V/F, sensorless flux vector control (SVC), and permanent magnet motor control
• Integrated safety function: Safe Torque Off (STO)
• Communication: Built-in Modbus and CANopen
• Optional communication modules: Ethernet/IP, Profibus DP, DeviceNet, etc.
• Integrated braking transistor
• Conformal coating (IEC 60721-3-3 Class 3C3)

Technical Specifications

• Rated output current: 3.7 A
• Line current: 4.1 A
• Overload capacity: 150% for 60 seconds
• Switching frequency: Adjustable from 2 to 16 kHz
• EMC filter: Integrated (C3 category)
• Cooling: Fan-cooled
• Operating temperature: -10°C to +50°C without derating
• Storage temperature: -25°C to +70°C
• Humidity: 5% to 95%, non-condensing
• Mounting: DIN rail or panel
• Dimensions (W x H x D): 75 mm x 232 mm x 173 mm
• Weight: Approx. 2.6 kg

Application Areas

• Packaging and printing machines
• Conveyor systems
• Pumps, fans, and compressors
• Material handling equipment
• Machine tools and industrial automation

Advantages

• Advanced motor control with multiple operating modes
• Compact and flexible for tight cabinet layouts
• Integrated safety and communication for efficient machine integration
• High customization through expansion cards and plug-in options
• Optimized for OEMs requiring scalable performance
