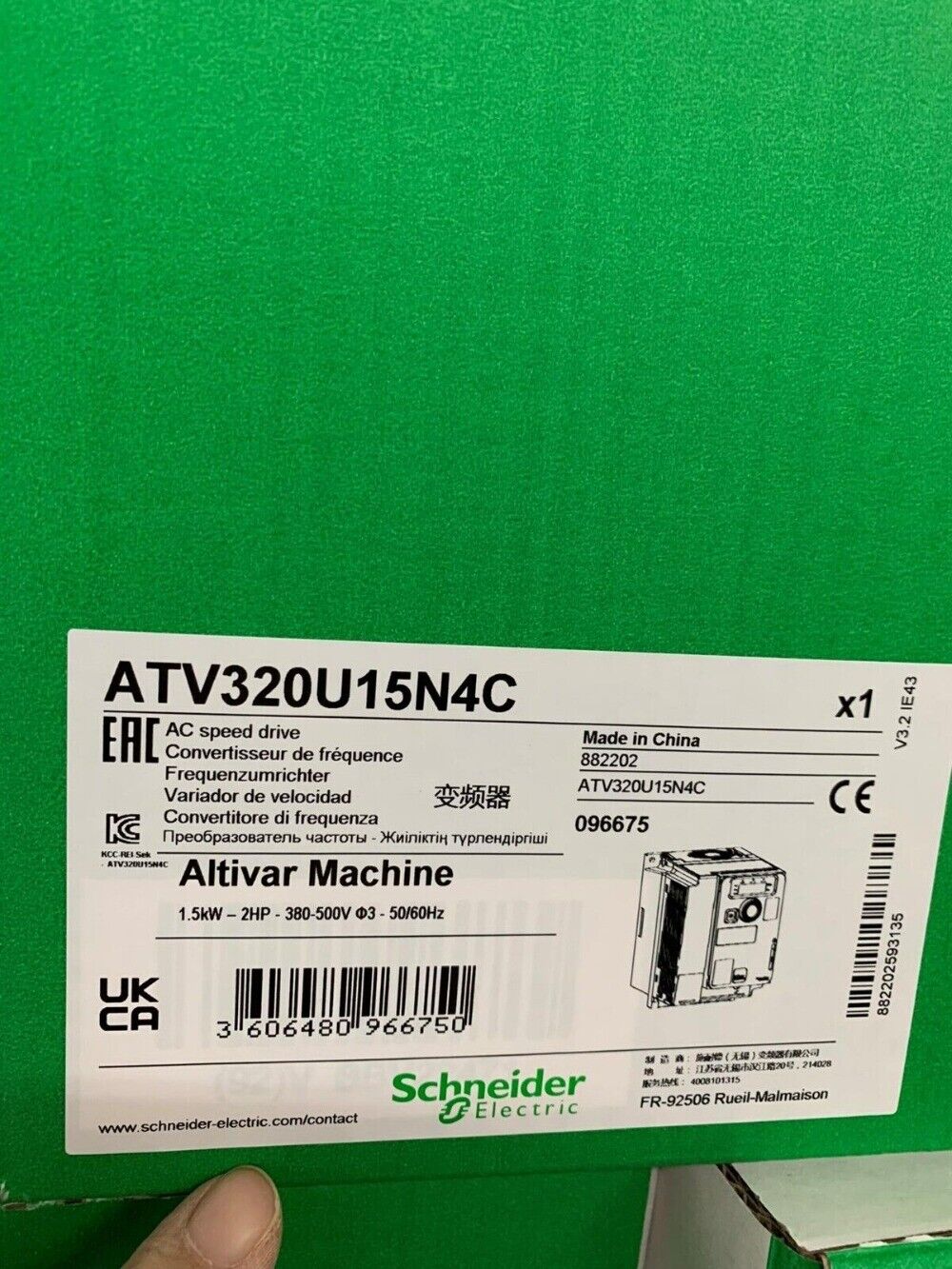

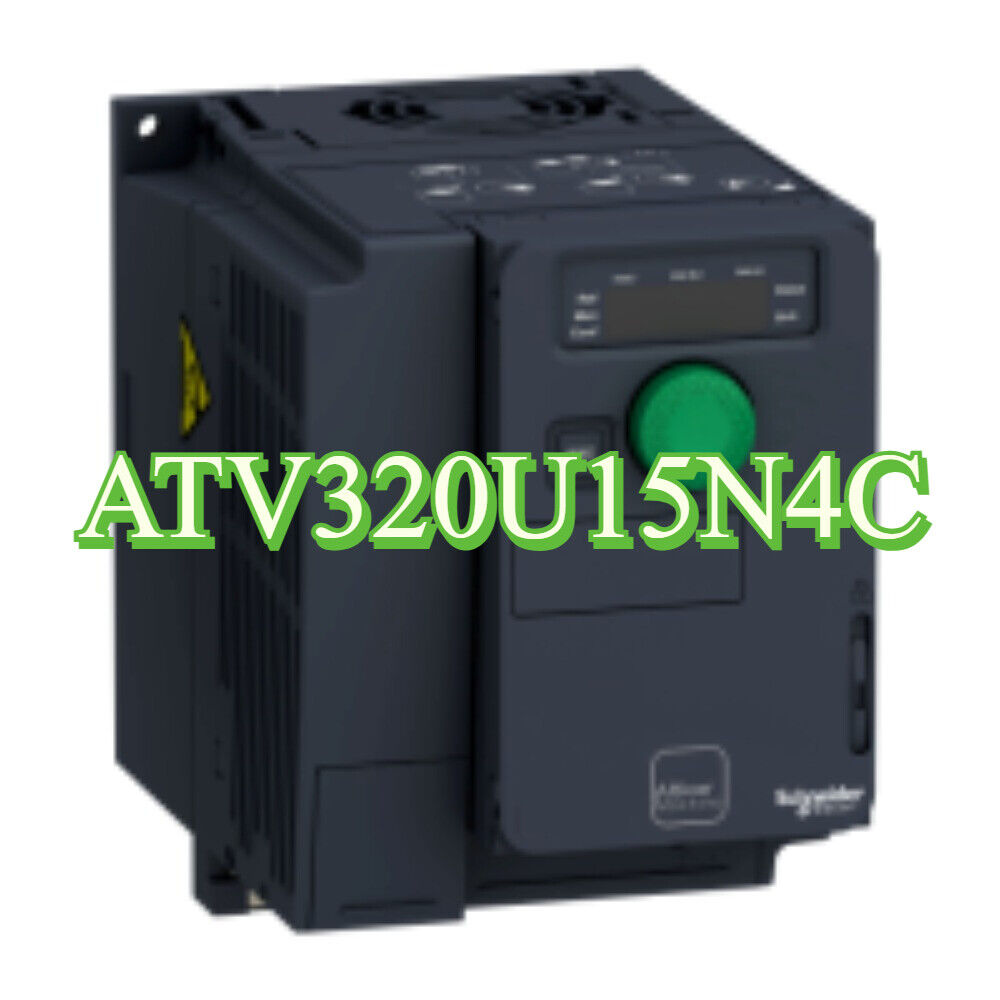

Product Description: Schneider Electric ATV320U15N4C

The Schneider Electric ATV320U15N4C is a compact variable speed drive from the Altivar 320 series, designed for use with 3-phase asynchronous and synchronous motors. It is rated for 1.5 kW (2 HP) motors and operates with a 3-phase 380–500 V AC input. The compact design and integrated safety features make it ideal for OEMs and machine builders seeking high performance with minimal space requirements.

Key Features

• Rated motor power: 1.5 kW (2 HP)
• Input voltage: 380–500 V AC, 3-phase
• Output voltage: 0–500 V, 3-phase
• Output frequency: 0.1–599 Hz
• Control modes: V/F, sensorless flux vector control (SVC), and permanent magnet motor control
• Integrated Modbus and CANopen communication
• Built-in safety: Safe Torque Off (STO) as standard
• Conformal coated electronics (IEC 60721-3-3 class 3C3)
• IP20 enclosure, compact book format

Technical Specifications

• Nominal line current: 4.1 A
• Maximum output current: 3.7 A
• Switching frequency: Adjustable from 2 to 16 kHz
• Overload capacity: 150% for 60 seconds
• Integrated EMC filter (category C3)
• Ambient temperature: -10°C to +50°C without derating
• Storage temperature: -25°C to +70°C
• Humidity: 5% to 95% non-condensing
• Mounting: DIN rail or panel mounting
• Dimensions (W x H x D): 73 mm x 143 mm x 148 mm
• Weight: Approx. 1.3 kg

Application Areas

• Material handling systems
• Packaging and labeling machines
• Pump and fan control
• Textile, wood, and food processing machinery
• OEM and compact panel designs

Advantages

• Compact footprint ideal for small enclosures
• High- performance motor control with multiple operating modes
• Integrated safety function improves machine reliability
• Ready-to-use communication interfaces for fast integration
• Robust design for industrial environments
