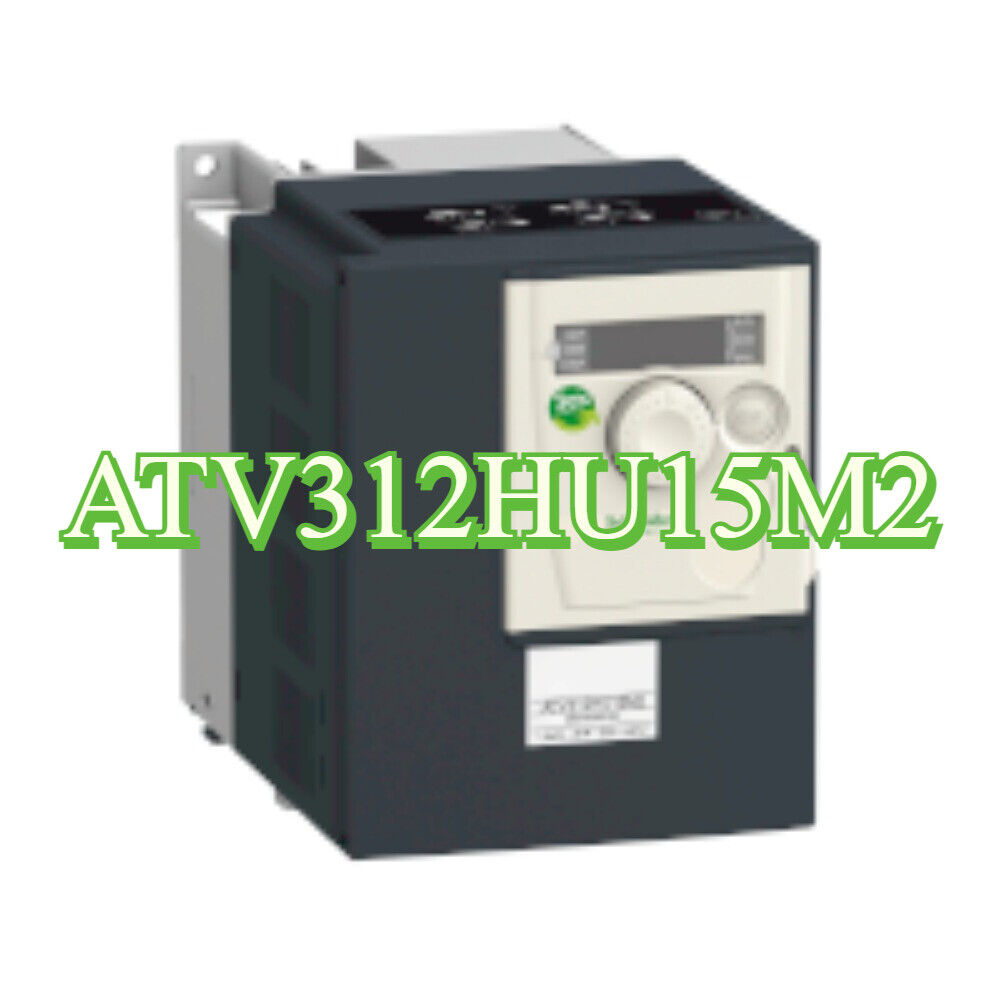

Product Description: Schneider Electric ATV312HU15M2

The Schneider Electric ATV312HU15M2 is a compact variable speed drive designed for controlling three-phase asynchronous motors in industrial and commercial applications. It is powered by a single-phase 200–240 V AC supply and provides 3-phase motor control for loads up to 1.5 kW (2 HP). This drive is suitable for a wide range of machinery, offering advanced control features in a space- saving format.

Key Features

• Motor power: 1.5 kW (2 HP)
• Input voltage: 200–240 V AC, single-phase
• Output voltage: 3-phase 0 to 240 V AC
• Output frequency: 0.5 to 500 Hz
• Control modes: V/F, sensorless flux vector control (SVC)
• Integrated Modbus serial communication (RS485)
• Built-in EMC filter (Category C2)
• Built-in keypad with LED display and control buttons
• IP20 protection with removable terminal blocks

Technical Specifications

• Nominal line current: 10.2 A
• Output current: 7.1 A
• Overload capacity: 150% for 60 seconds
• Switching frequency: Adjustable from 2 to 16 kHz (default 4 kHz)
• Operating temperature: -10°C to +50°C (without derating)
• Storage temperature: -25°C to +70°C
• Relative humidity: 5% to 95%, non-condensing
• Cooling: Integrated fan
• Mounting: DIN rail or panel
• Dimensions (W x H x D): 100 mm x 143 mm x 170 mm
• Weight: Approximately 1.6 kg

Application Areas

• HVAC systems (fans, blowers)
• Pumps and compressors
• Packaging and conveying machines
• OEM machinery requiring simple motor control
• General-purpose industrial automation

Advantages

• Compact and robust design suitable for limited-space installations
• Built-in communication and control interface for easy integration
• Enhanced motor control features for energy efficiency
• Conformal-coated electronics for harsh environments
• Quick commissioning and easy operation
