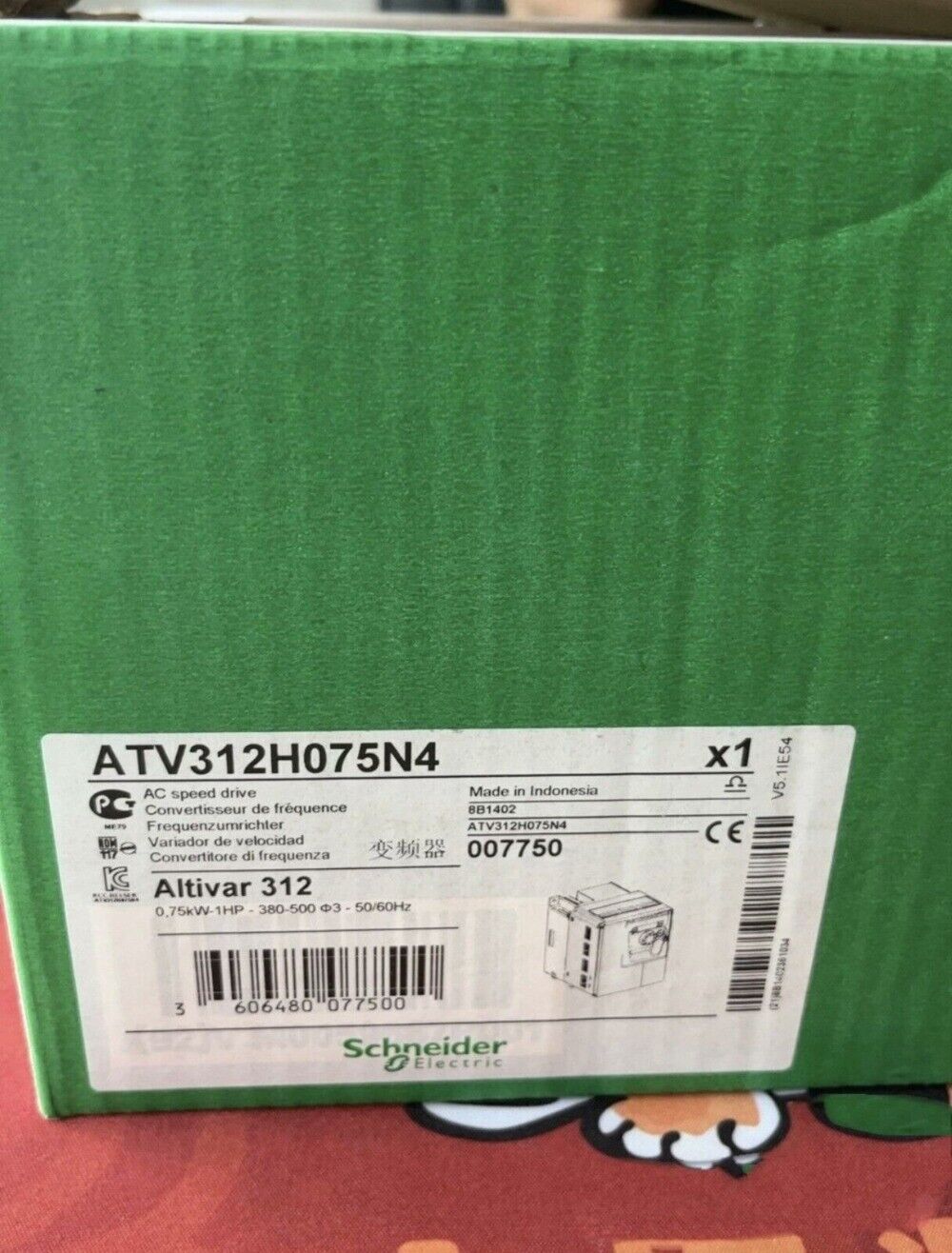

Product Description: Schneider Electric ATV312H075N4

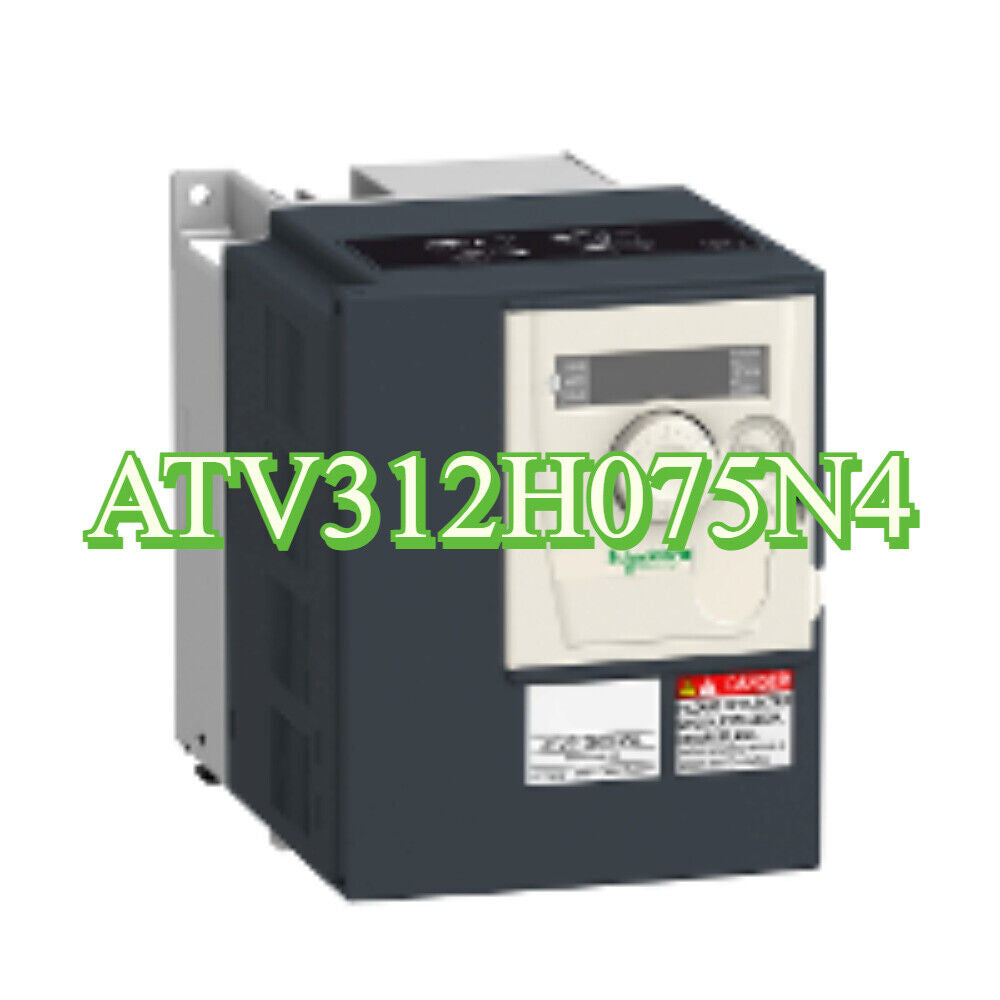

The Schneider Electric ATV312H075N4 is a 3-phase variable speed drive designed for controlling asynchronous motors in industrial and commercial environments. Rated at 0.75 kW (1 HP), it operates with a 3-phase 380–500 V AC power supply. The drive is compact, reliable, and equipped with integrated functions for simple and advanced applications including conveyors, pumps, and packaging machinery.

Key Features

• Motor power: 0.75 kW (1 HP)
• Supply voltage: 380–500 V AC, 3-phase
• Output voltage: 3-phase 0 to 500 V AC
• Output frequency: 0.5 to 500 Hz
• Control modes: V/F, sensorless flux vector control (SVC), and pump/fan specific functions
• Built-in Modbus communication (RS485)
• Integrated EMC filter (category C2)
• LED and 4-digit display for status and parameters
• IP20 protection with removable terminal blocks

Technical Specifications

• Line current: 2.4 A
• Output current: 2.1 A
• Overload capacity: 150% for 60 seconds
• Switching frequency: Adjustable, 2 to 16 kHz (default 4 kHz)
• Ambient operating temperature: -10°C to +50°C without derating
• Storage temperature: -25°C to +70°C
• Relative humidity: 5% to 95%, non-condensing
• Cooling: Integrated fan
• Mounting: DIN rail or panel mounting
• Dimensions (W x H x D): 72 mm x 143 mm x 148 mm
• Weight: Approx. 1.5 kg

Application Areas

• Packaging and labeling equipment
• Conveyors and material transport systems
• HVAC systems and pump controls
• Small machinery requiring reliable motor control
• Industrial automation systems

Advantages

• Compact design for space-saving installations
• Versatile control functions for various load types
• Integrated protections ensure drive and motor safety
• Easy setup and parameterization via keypad or software
• Standard Modbus communication simplifies integration
