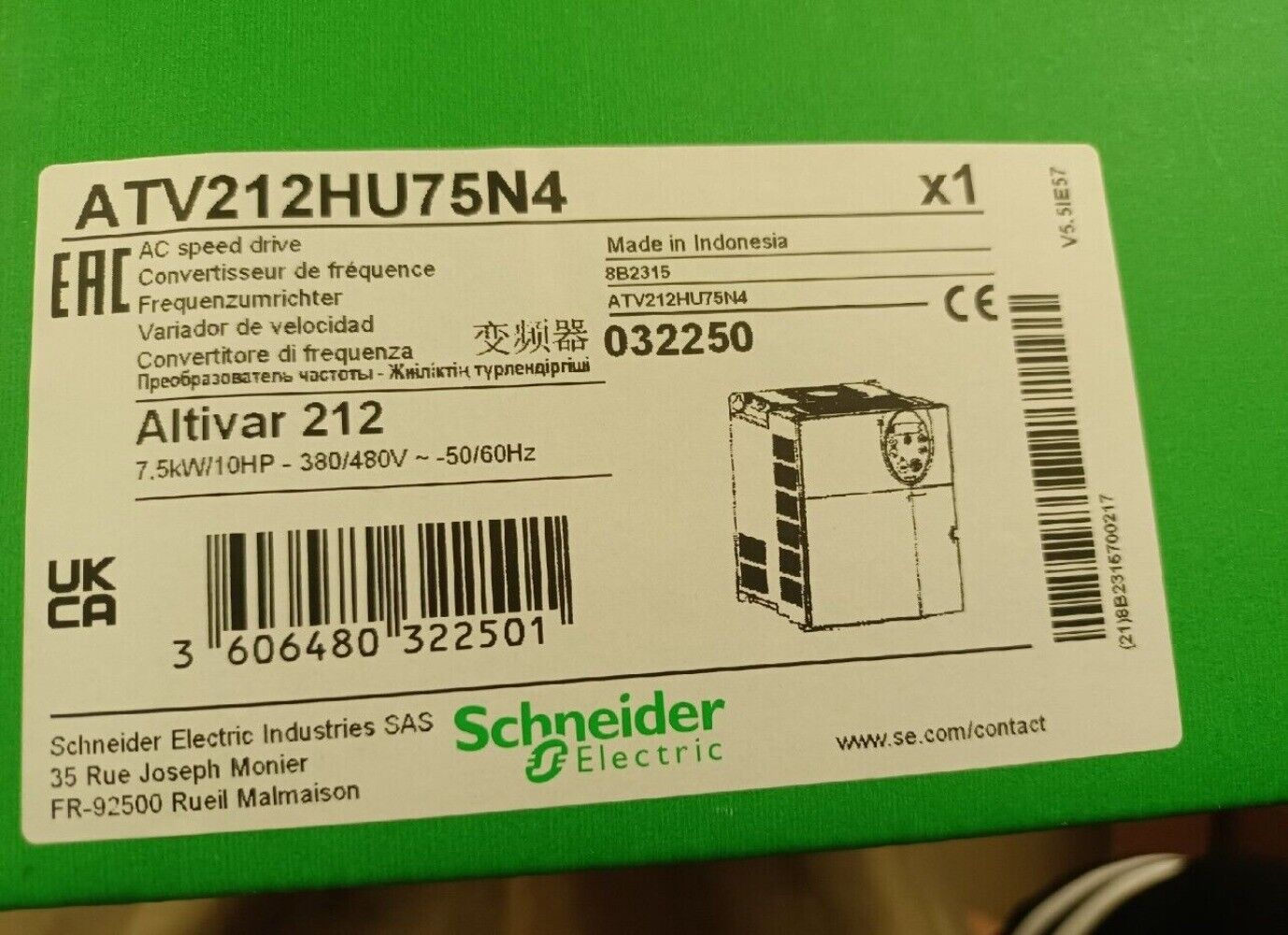

Product Description: Schneider Electric ATV212HU75N4

The Schneider Electric ATV212HU75N4 is a high- efficiency variable speed drive designed specifically for HVAC applications, including pumps, fans, and compressors. It supports 3-phase 380–480 V AC input and delivers 3-phase output for motors up to 7.5 kW (10 HP). The ATV212 offers energy savings, simplified operation, and seamless integration into building management systems.

Key Features

• Motor power rating: 7.5 kW (10 HP)
• Input voltage: 380–480 V AC, 3-phase
• Output voltage: 3-phase 0 to 480 V AC
• Output frequency: 0.5 to 200 Hz
• Control mode: Variable torque, optimized for HVAC
• Integrated Modbus and BACnet communication
• Integrated EMC filter (Category C1/C2)
• Built-in keypad and LED status display
• IP21 protection with top cover (standard version is IP20)

Technical Specifications

• Rated output current: 17.6 A
• Line current: 18.3 A
• Overload capacity: 110% for 60 seconds
• Switching frequency: Fixed at 4 kHz
• Energy saving function: Automatic Energy Optimizer (AEO)
• Operating temperature: -10°C to +50°C (without derating)
• Storage temperature: -25°C to +70°C
• Humidity: 5% to 95%, non-condensing
• Cooling: Integrated fan
• Mounting: Wall or panel
• Dimensions (W x H x D): Approx. 180 mm x 260 mm x 180 mm
• Weight: Approx. 5.8 kg

Application Areas

• HVAC systems in commercial buildings
• Pump control in water treatment or irrigation
• Ventilation systems
• Air handling units and cooling towers
• Energy-efficient motor control in facility management

Advantages

• Optimized for fan and pump applications
• Energy-saving functions reduce operating costs
• Easy to configure with built-in keypad and presets
• Standard support for building automation protocols
• Reliable performance and long service life
