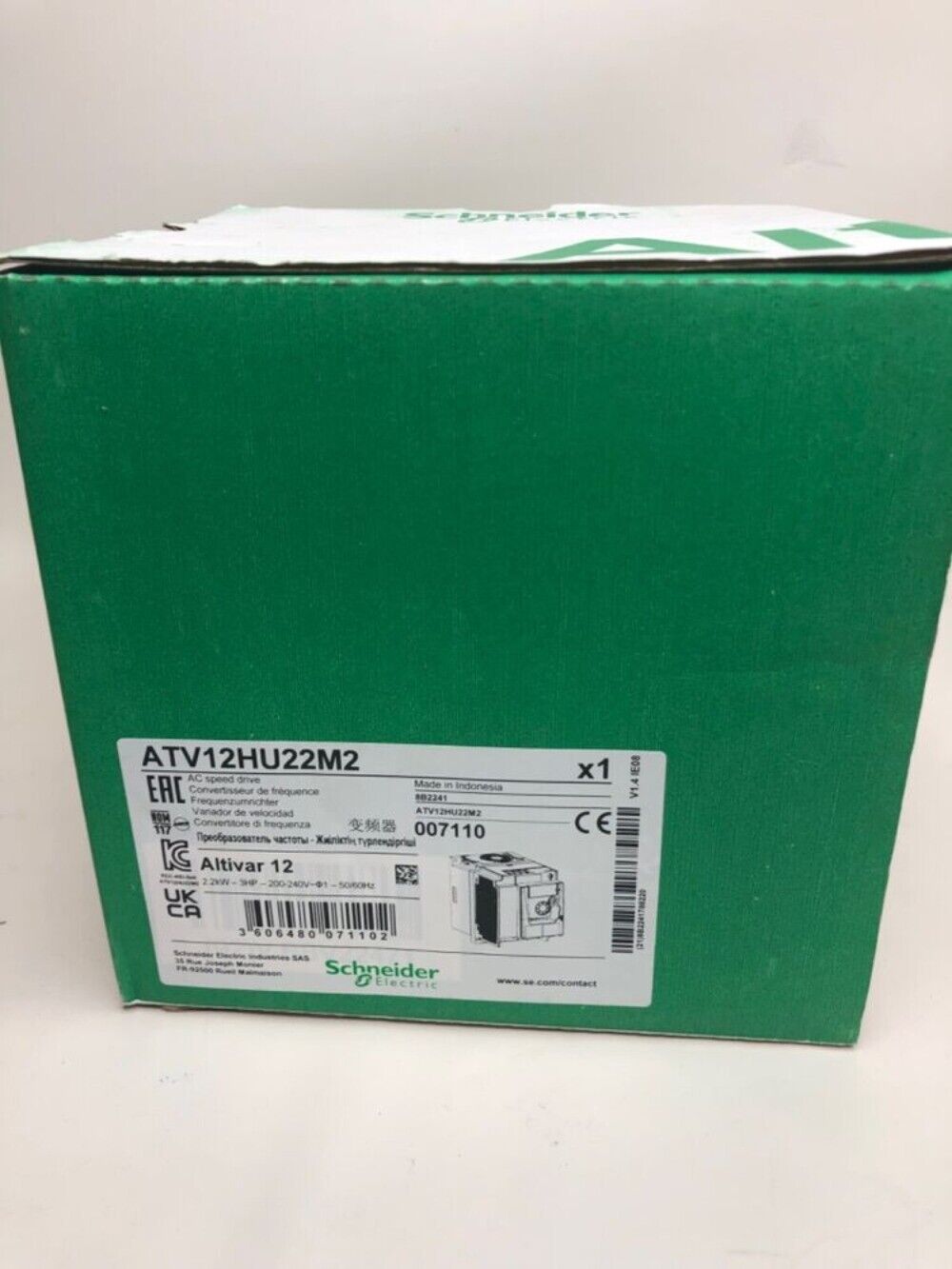

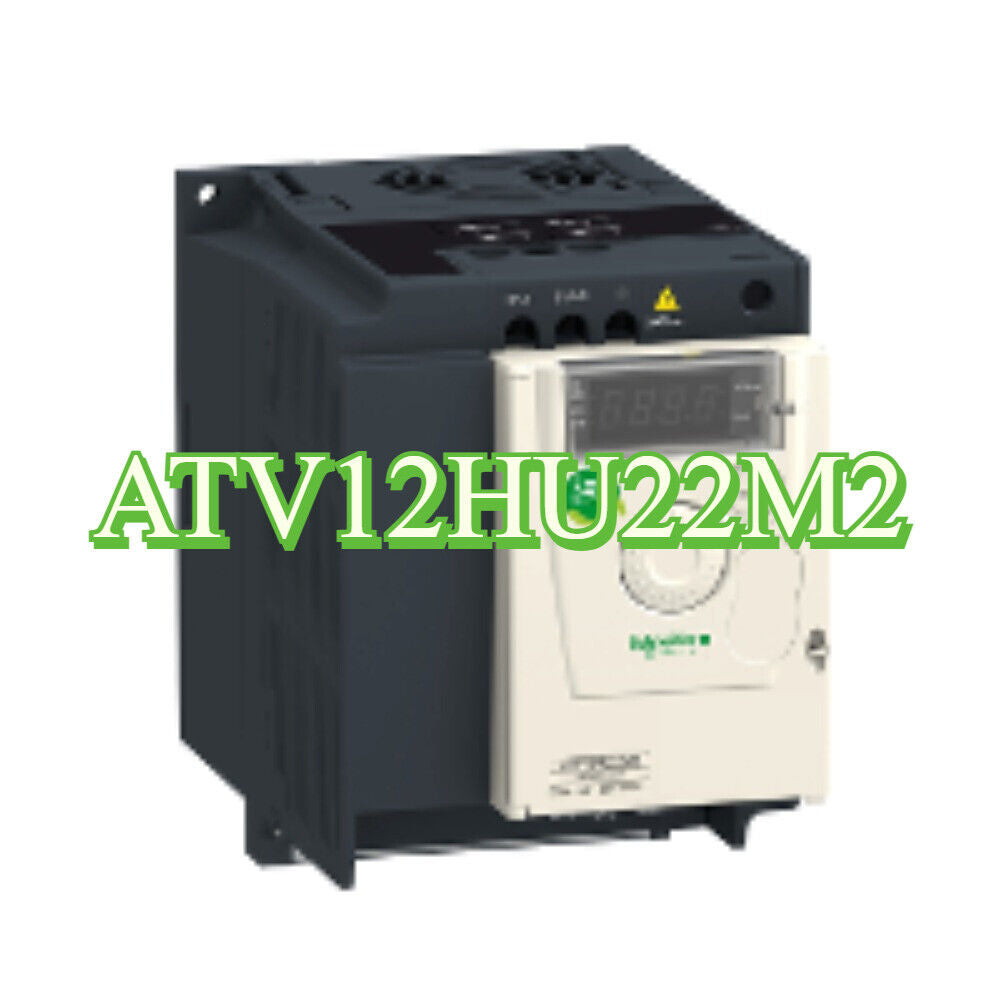

Product Description: Schneider Electric ATV12HU22M2

The Schneider Electric ATV12HU22M2 is a compact and versatile variable speed drive designed for controlling three-phase asynchronous motors in simple industrial and commercial applications. It operates on a 200–240 V single- phase AC power supply and delivers a 3-phase output suitable for motors up to 2.2 kW (3 HP). This drive is well-suited for standalone machinery, HVAC applications, and other general-purpose control tasks.

Key Features

• Motor power rating: 2.2 kW (3 HP)
• Input voltage: 200–240 V AC, single-phase
• Output voltage: 3-phase 0–240 V AC
• Output frequency: 0.5 to 400 Hz
• Control modes: V/F (volts per hertz), sensorless flux vector control
• Integrated Modbus RTU communication over RS485
• Built-in potentiometer for manual speed adjustment
• Compact design with integrated EMC filter (C1)
• IP20 enclosure protection

Technical Specifications

• Rated input current: 13.2 A
• Nominal output current: 9.6 A
• Switching frequency: Adjustable, default 4 kHz (up to 16 kHz)
• Overload capacity: 150% for 60 seconds
• Protection functions: Overvoltage, undervoltage, short-circuit, motor overload, overheating
• Cooling: Integrated fan
• Operating temperature: -10°C to +50°C without derating
• Storage temperature: -25°C to +70°C
• Relative humidity: 5% to 95%, non-condensing
• Mounting: DIN rail or panel mount
• Dimensions (W x H x D): 100 mm x 143 mm x 170 mm
• Weight: Approx. 1.6 kg

Application Areas

• Pumps and fans
• HVAC systems
• Conveyors and small machines
• Packaging and assembly equipment
• General-purpose speed and torque control

Advantages

• Easy to install and operate in compact control panels
• High reliability with integrated protection functions
• Built-in communication for remote control and monitoring
• Quick commissioning with built-in keypad and potentiometer
• Cost-effective solution for standard motor control tasks
