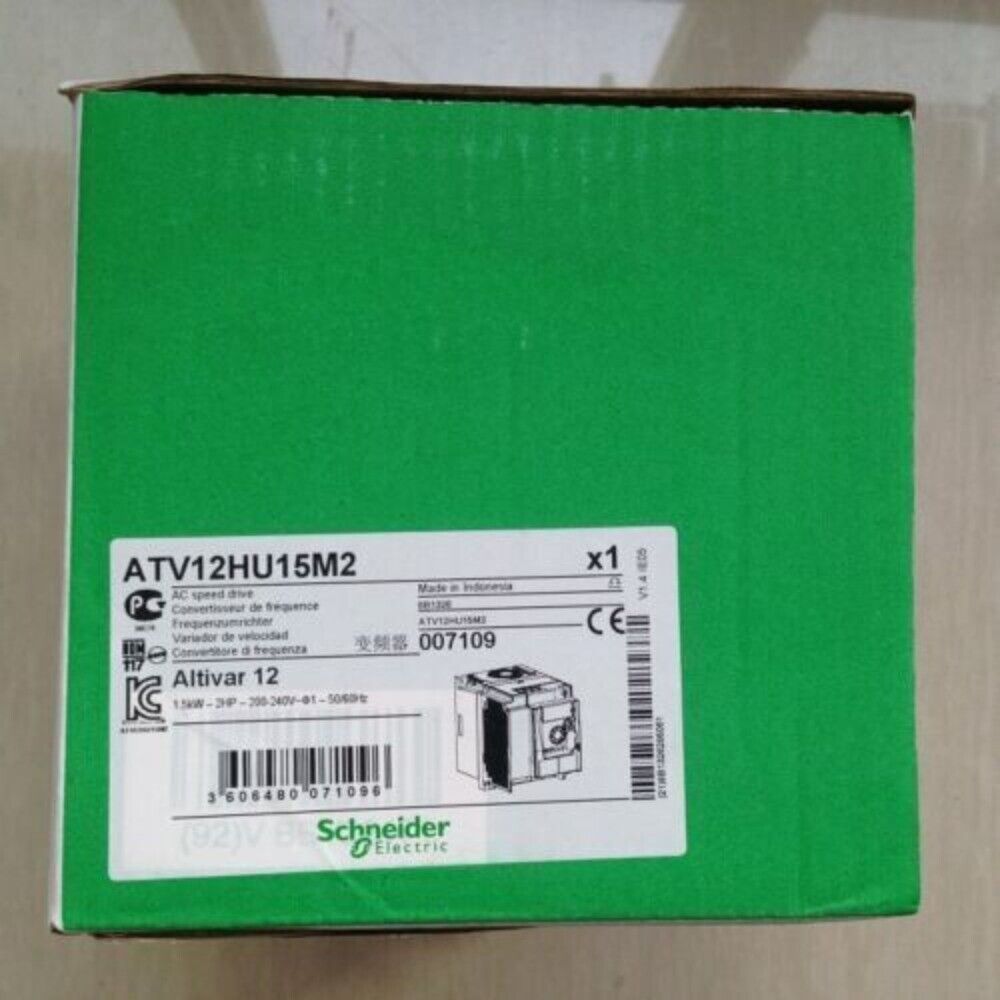

Product Description: Schneider Electric ATV12HU15M2

The Schneider Electric ATV12HU15M2 is a compact and versatile variable speed drive designed for controlling asynchronous motors in simple industrial and commercial applications. It supports single-phase 200–240 V input and provides 3-phase output to drive motors up to 1.5 kW (2 HP). This model offers built-in motor protection, integrated logic functions, and simple installation in control panels.

Key Features

• Motor power rating: 1.5 kW (2 HP)
• Input voltage: 200–240 V AC, single-phase
• Output voltage: 3-phase 0–240 V
• Output frequency: 0.5–400 Hz
• Integrated EMC filter (category C1)
• Built-in potentiometer for manual speed control
• Integrated Modbus serial communication (RS485)
• Local control via terminal strip and keypad
• Conformal coating for harsh environments (IEC 60721-3-3 class 3C3)

Technical Specifications

• Nominal input current: 10.2 A
• Output current: 7.1 A
• Switching frequency: Adjustable, default 4 kHz (up to 16 kHz)
• Control mode: V/F (volts per frequency) and constant torque
• Motor compatibility: 3-phase asynchronous motors
• Overload capacity: 150% for 60 seconds
• Protection functions: Overcurrent, short circuit, overvoltage, undervoltage, overheating
• Degree of protection: IP20
• Operating temperature: -10°C to +50°C (without derating)
• Storage temperature: -25°C to +70°C
• Relative humidity: 5% to 95%, non-condensing
• Mounting: DIN rail or panel mount
• Dimensions (W x H x D): 72 mm x 143 mm x 148 mm
• Weight: Approximately 1.1 kg

Application Areas

• Pumps and fans
• Conveyors and small machinery
• HVAC systems
• OEM equipment
• General-purpose speed control applications

Advantages

• Compact size ideal for limited panel space
• Easy to set up with integrated display and control features
• Built-in communication for system integration
• Reliable performance with extensive protection features
• Cost-effective drive for small motor applications
