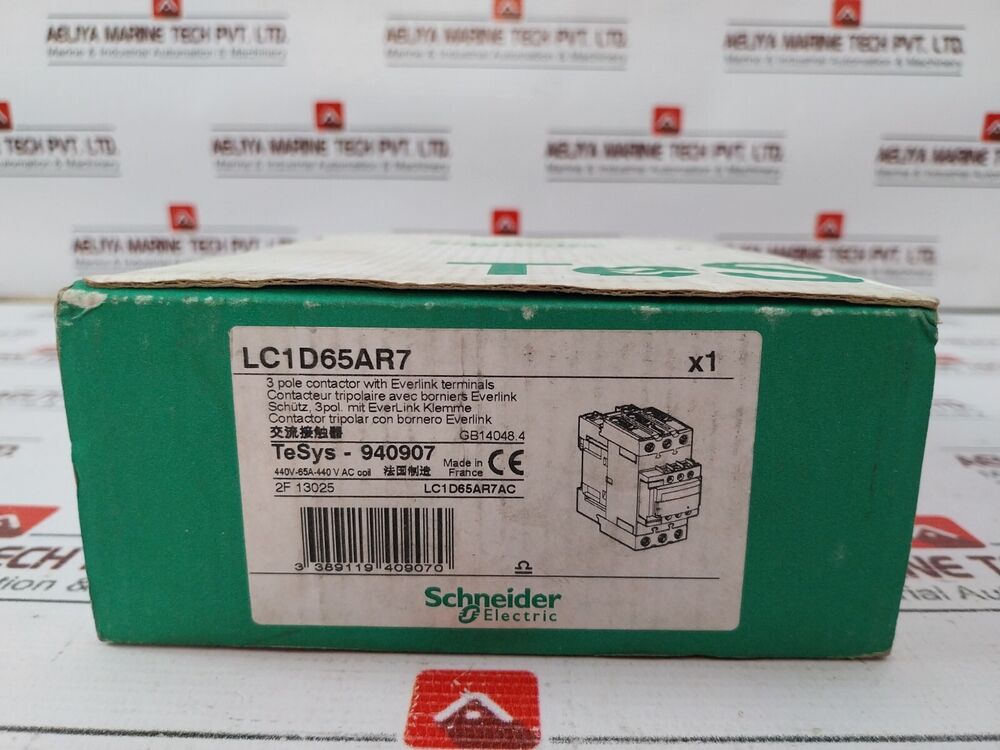

TeSys D | Schneider | LC1D65AR7 3 Pole Contactor 690v- 50/60hz 80a Brand New

Product Description: Schneider Electric LC1D65AR7

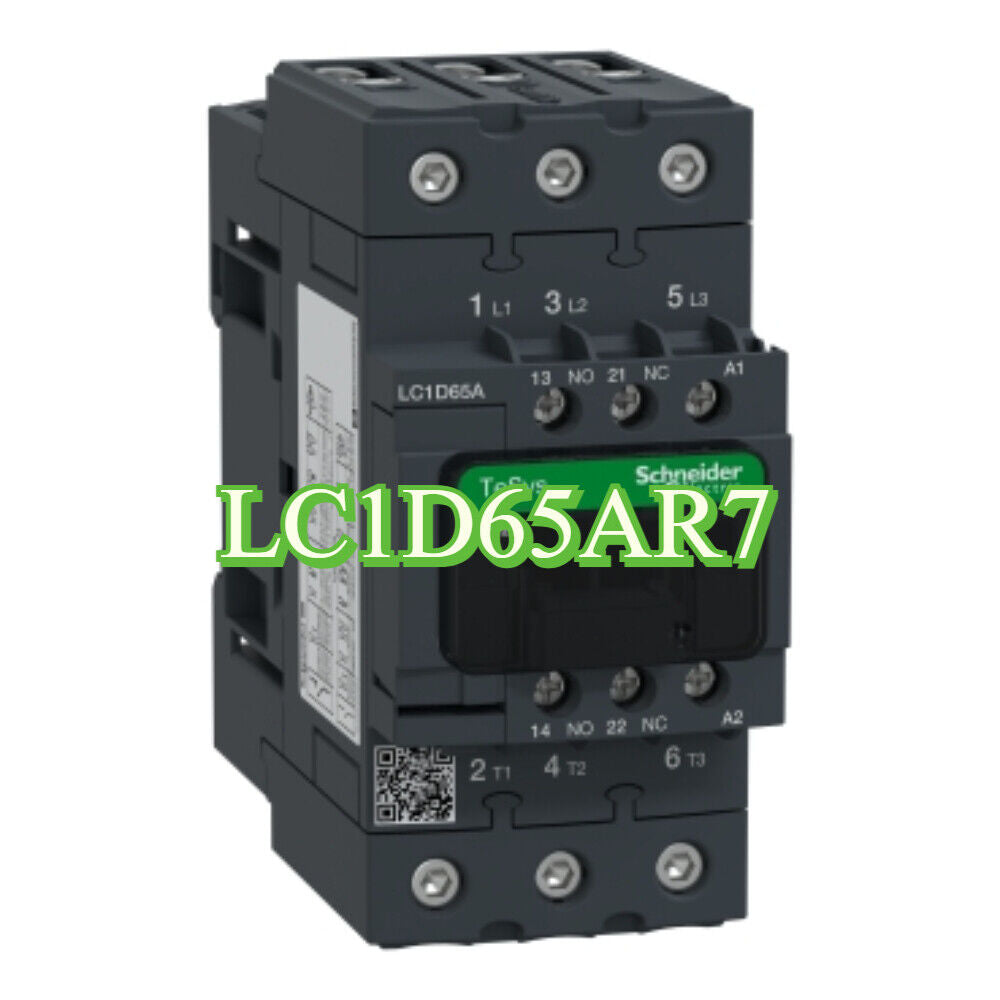

The Schneider Electric LC1D65AR7 is a 3-pole AC contactor from the TeSys D range, designed for controlling motors up to 30 kW (at 400 V) and resistive loads up to 65 A in AC-3 utilization category. This model includes a 230 V AC control coil and is equipped with one normally open and one normally closed auxiliary contact for control circuit applications.

Key Features

• 3 main poles for power switching
• Rated operational current: 65 A (AC-3 at 400 V)
• Motor rating: Up to 30 kW at 400 V
• Control voltage: 230 V AC 50/60 Hz
• Auxiliary contacts: 1 NO + 1 NC built-in
• DIN rail or panel mounting
• Compact design: 77 mm width

Technical Specifications

• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• AC-1 operational current: 100 A
• Coil power consumption: Approx. 45 VA (inrush), 5.5 VA (holding)
• Mechanical durability: 10 million operations
• Electrical durability: 1 million operations (AC-3)
• Conforming standards: IEC 60947-4-1, UL, CSA
• Operating temperature: -5°C to +60°C
• Protection rating: IP20 (with terminal shrouds)
• Terminal capacity: Up to 2 x 25 mm² solid or flexible cable
• Weight: Approximately 0.95 kg

Application Areas

• Motor control centers
• HVAC and pumping systems
• Conveyors and machine tools
• Lighting and resistive load control
• Industrial automation systems

Advantages

• High switching capacity for industrial loads
• Reliable performance with long mechanical life
• Built-in auxiliary contacts for circuit feedback
• Easy mounting and wiring
• Compliant with international standards
