TeSys D | Schneider | LC1D65ABD 24VDC contactor 3Poles 65A

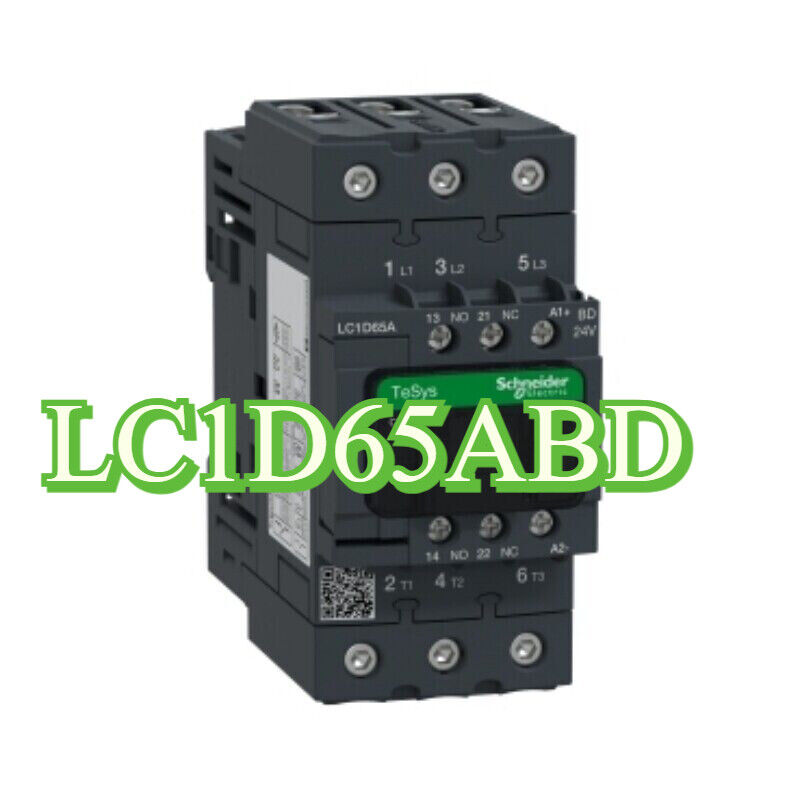

Product Description: Schneider Electric LC1D65ABD

The Schneider Electric LC1D65ABD is a high-performance 3-pole AC contactor from the TeSys D series, used for switching and controlling motors up to 30 kW at 400 V. It features a 24 V DC low-consumption coil and is designed for direct-on-line motor starting or load switching applications in industrial and commercial environments.

Key Features

• Number of poles: 3P
• Rated current (AC-3): 65 A
• Motor power rating:
  • 30 kW at 400 V AC (AC-3)
• Control voltage: 24 V DC (low- consumption coil)
• Built-in auxiliary contacts: 1 N/O + 1 N/C
• Compatible with DIN rail and panel mounting
• Compact and robust design
• Ideal for frequent switching and control operations

Technical Specifications

• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• AC-1 current rating: 100 A
• Electrical durability: 1 million operations (AC-3)
• Mechanical durability: 10 million operations
• Coil power consumption: Approx. 3.5 W
• Operating temperature: -5°C to +60°C
• Storage temperature: -40°C to +80°C
• Degree of protection: IP20 (with terminal cover)
• Terminal type: Screw clamp
• Dimensions (W x H x D): Approx. 85 mm x 129 mm x 134 mm
• Weight: Approx. 1.35 kg

Application Areas

• Motor starters for industrial machinery
• Pump and fan control systems
• HVAC equipment
• Conveyors and material handling
• General-purpose load switching

Advantages

• Strong performance in motor and resistive load control
• Long mechanical and electrical life for demanding applications
• Energy-efficient DC coil reduces power consumption
• Integrated auxiliary contacts for control circuit integration
• Easy to mount and maintain
