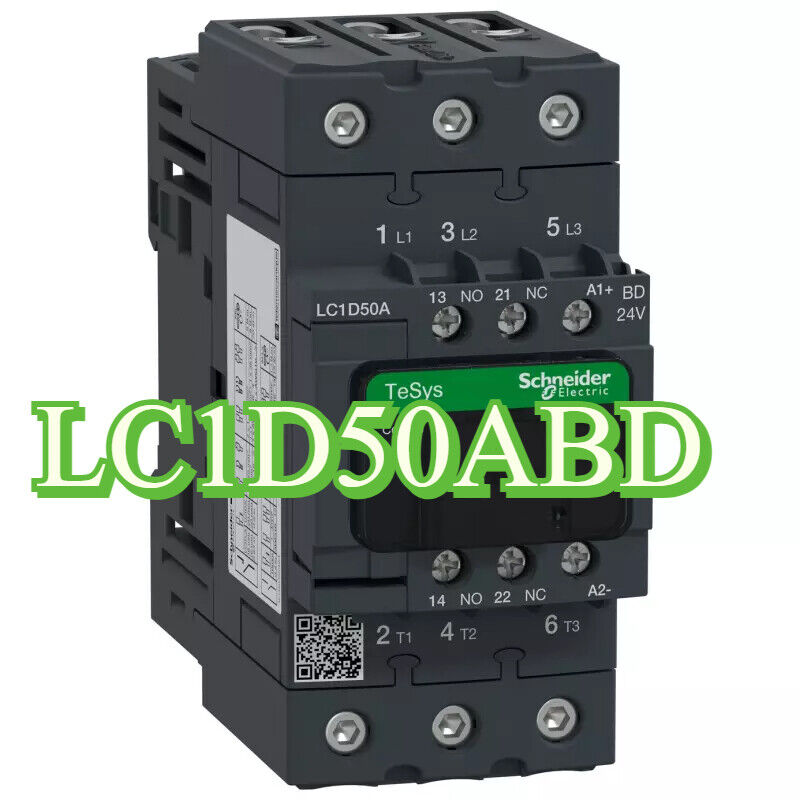

Product Description: Schneider Electric LC1D50ABD

The Schneider Electric LC1D50ABD is a 3-pole AC contactor from the TeSys D series, designed for controlling motors and other loads up to 25 kW at 400 V AC. It features a 24 V DC low-consumption coil and is suitable for use in industrial applications that require high reliability and long service life. The contactor is also equipped with built-in auxiliary contacts for control circuit integration.

Key Features

• Number of poles: 3P
• Rated current (AC-3): 50 A
• Motor power rating:
  • 25 kW at 400 V AC (AC-3)
• Control voltage: 24 V DC
• Built-in auxiliary contacts: 1 N/O + 1 N/C
• High electrical and mechanical durability
• DIN rail and panel mounting options
• Low-power consumption DC coil with suppression

Technical Specifications

• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• AC-1 current rating: 80 A
• Electrical durability: 1 million cycles (AC-3)
• Mechanical durability: 10 million cycles
• Coil consumption: ~3.5 W
• Operating temperature: -5°C to +60°C
• Storage temperature: -40°C to +80°C
• Protection rating: IP20
• Terminal type: Screw clamp
• Dimensions (W x H x D): Approx. 85 mm x 129 mm x 128 mm
• Weight: Approx. 1.2 kg

Application Areas

• Motor starters and contactor assemblies
• HVAC systems
• Pumps, fans, compressors
• Conveyors and general industrial machinery
• Lighting and resistive load switching

Advantages

• Compact design with powerful switching capability
• Energy- efficient DC coil with low inrush current
• Built-in auxiliary contacts for flexible control
• Reliable performance with high service life
• Easy integration into Schneider Electric control panels
