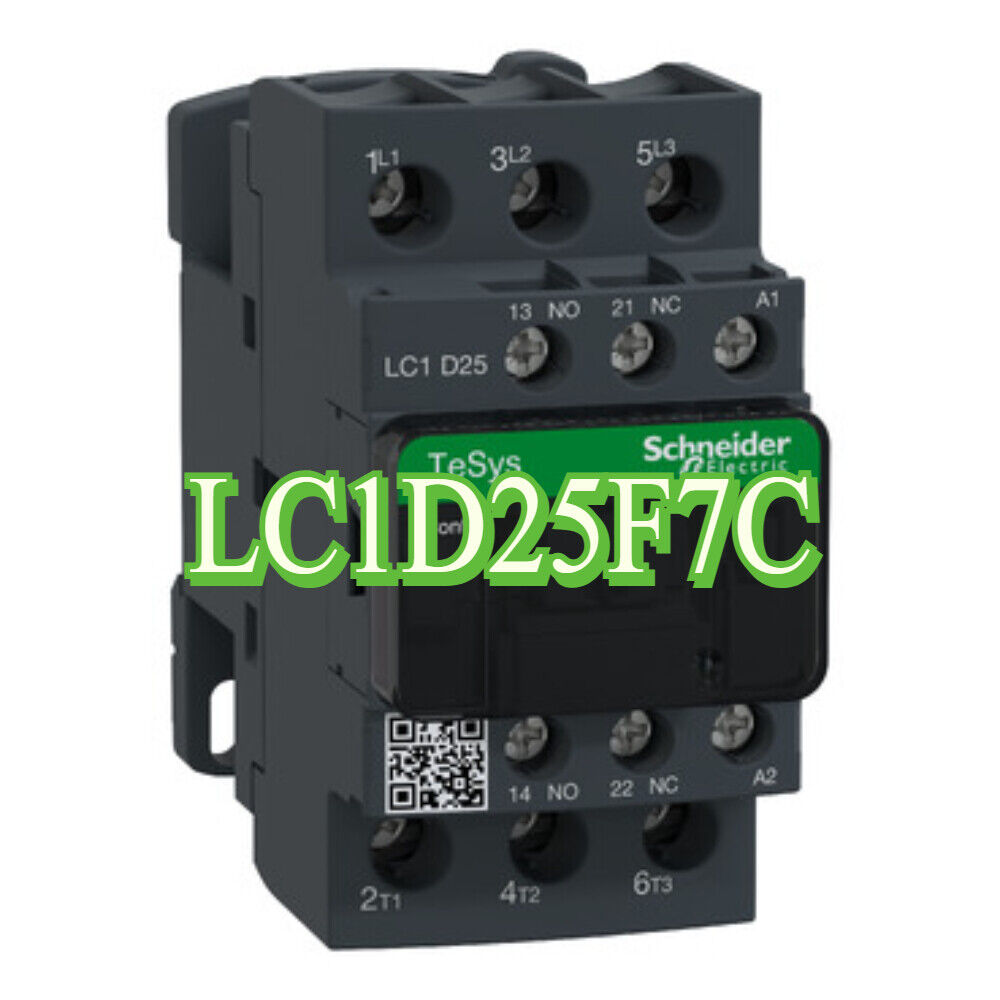

Product Description: Schneider Electric LC1D25F7C

The Schneider Electric LC1D25F7C is a 3-pole AC contactor from the TeSys D series, designed for motor control applications up to 11 kW (at 400 V). It is suitable for switching and controlling motors and resistive loads in industrial and commercial environments. The contactor includes a 110 V AC 50/60 Hz coil and features a compact, modular design.

Key Features

• 3-pole contactor with AC-3 rating
• Rated operational current: 25 A (AC-3 at 400 V)
• Control voltage: 110 V AC, 50/60 Hz
• Auxiliary contacts: 1 Normally Open (NO) + 1 Normally Closed (NC) built-in
• Suitable for motor control up to 11 kW at 400 V
• DIN rail or panel mounting
• Compact width: 45 mm

Technical Specifications

• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Frequency: 25–400 Hz (main contacts), 50/60 Hz (coil)
• Mechanical durability: 10 million operations
• Electrical durability: 1.6 million operations (AC-3 at 440 V)
• Operating temperature range: -5°C to +60°C
• Connections: Screw clamp terminals
• Degree of protection: IP20 (without enclosure)
• Conforms to standards: IEC 60947-4-1, UL, CSA

Application Areas

• Motor starters and control panels
• HVAC systems
• Pumping systems
• Lighting circuits
• General automation in industrial and commercial buildings

Advantages

• Reliable and compact motor switching
• Pre-installed auxiliary contacts for flexibility
• High electrical and mechanical durability
• Easy installation on DIN rail or backplate
• Compliant with international standards for global use
