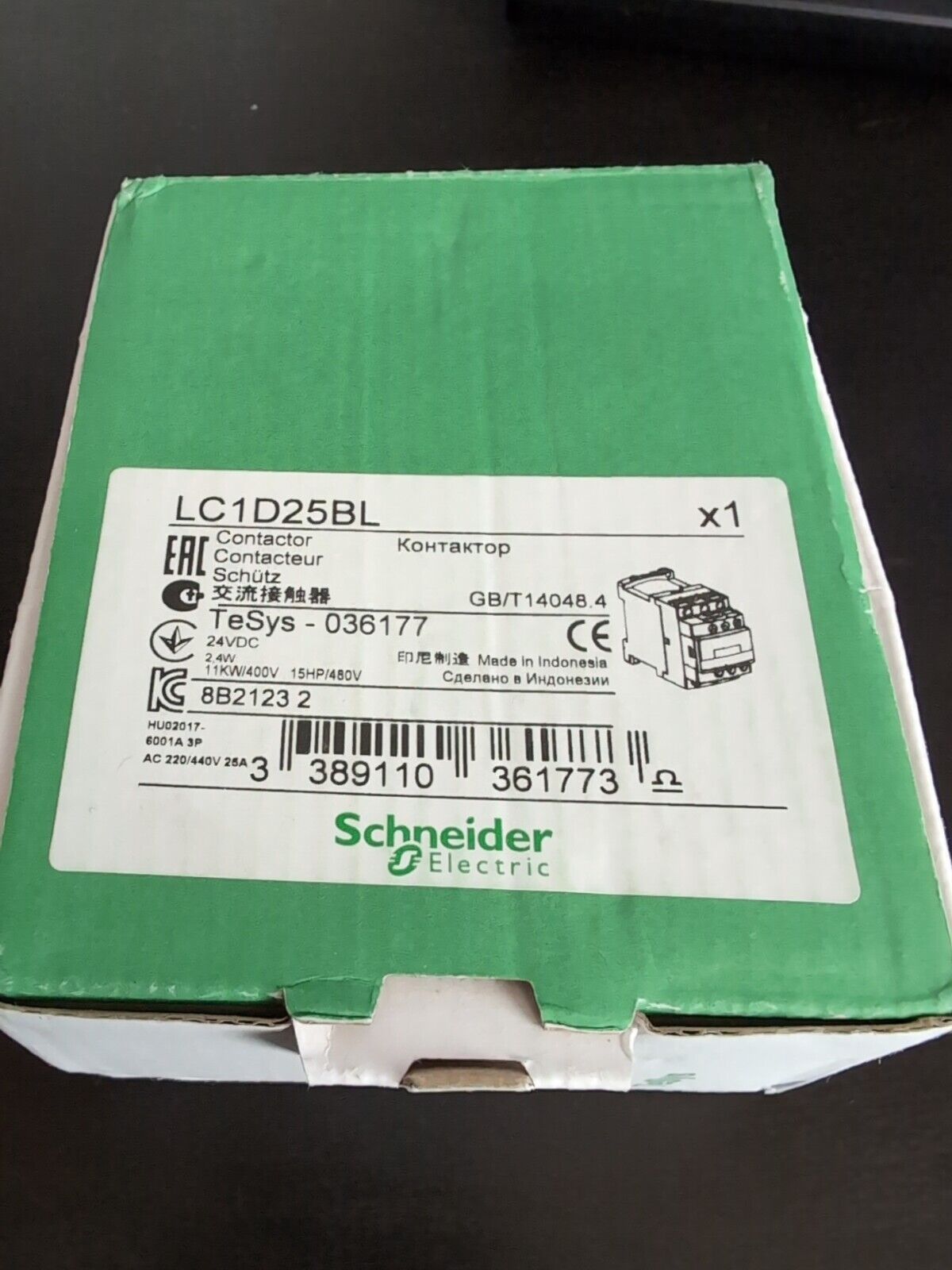

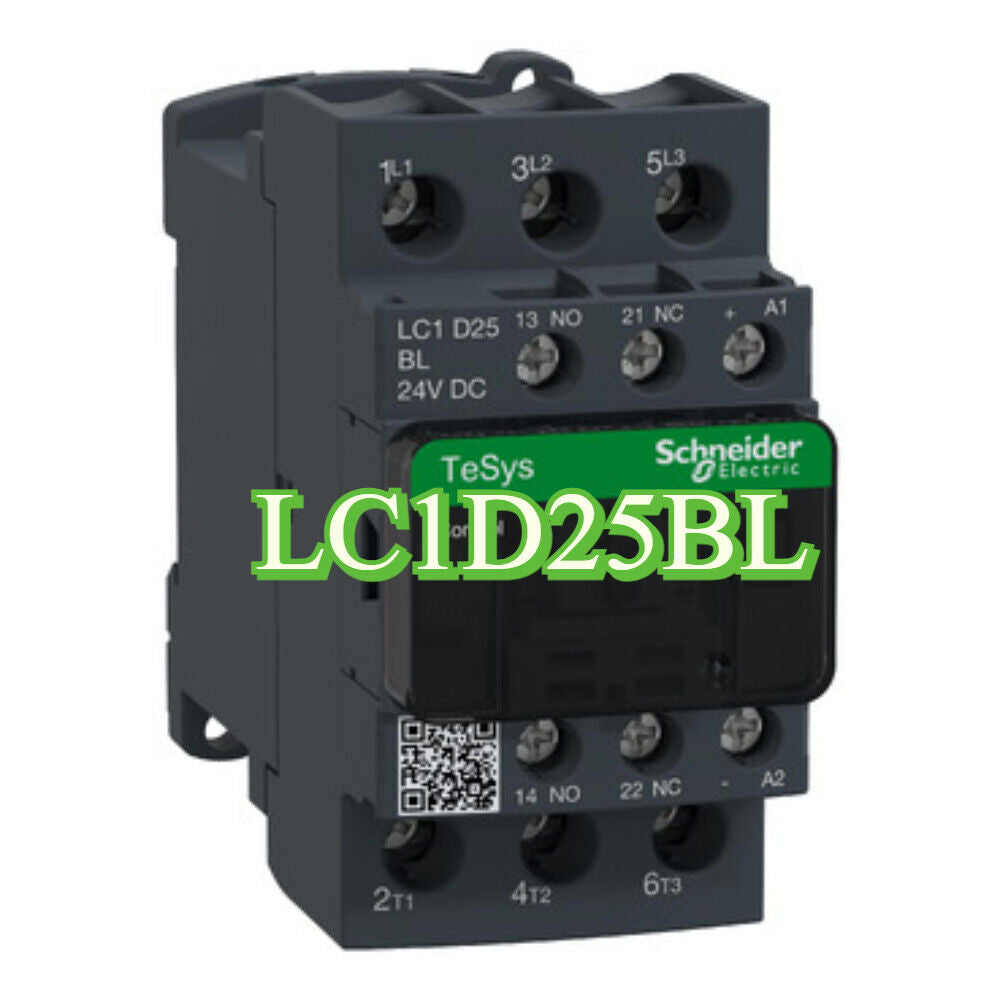

Product Description: Schneider Electric LC1D25BL

The Schneider Electric LC1D25BL is a 3-pole AC contactor from the TeSys D series, designed for controlling motors up to 11 kW (at 400 V) or resistive loads. It is equipped with a 24 V DC coil and features high electrical and mechanical durability. This contactor is commonly used in industrial motor starters and control panels, providing reliable switching and control.

Key Features

• 3 main poles
• Rated operational current: 25 A (AC-3 duty at 400 V)
• Control coil voltage: 24 V DC
• Built-in auxiliary contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
• Suitable for motors up to 11 kW at 400 V
• Compact 45 mm width for space-saving installations
• DIN rail and panel mountable

Technical Specifications

• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Operational frequency: 25–400 Hz
• Mechanical durability: 10 million operations
• Electrical durability: 1.6 million operations (AC-3 at 440 V)
• Auxiliary contact rating: AC-15 (B300), DC-13 (R300)
• Coil power consumption: 3.5 W in hold, 7.5 W in inrush
• Operating temperature: -5°C to +60°C
• Storage temperature: -40°C to +80°C
• Protection rating: IP20 (without enclosure)
• Standards: IEC 60947-4-1, UL, CSA

Application Areas

• Motor starters and protection systems
• HVAC control panels
• Pumps, fans, and compressors
• Conveyors and machine tools
• General industrial automation

Advantages

• Reliable and compact contactor for motor switching
• DC coil allows for quieter operation and better control response
• Integrated auxiliary contacts reduce component count
• High durability ensures long service life
• Easy to install and wire
