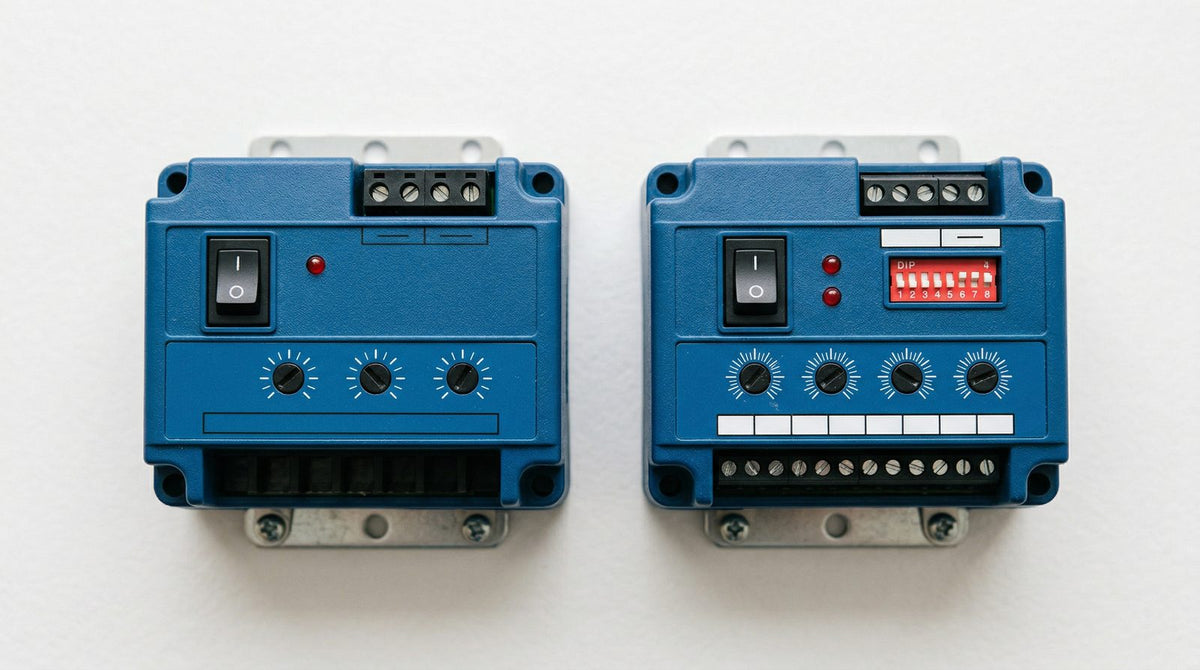

RM7800 vs RM7840: Which Flame Safeguard Controller Do You Need?

Both the Honeywell RM7800 and RM7840 are 7800 SERIES flame safeguard controllers that mount on the same Q7800 wiring subbase. They look similar, share the same flame amplifier compatibility, and both supervise the burner startup sequence from purge through run. So why does one cost more — and when does that premium actually pay off?

The difference comes down to timing flexibility. This guide breaks down exactly what separates these two controllers so you can choose the right one for your burner application.

Quick Comparison

When to Choose the RM7800

The RM7800 is the right choice when your burner installation matches one of Honeywell's standard timing profiles. Most commercial gas and oil boilers from major OEMs (Cleaver-Brooks, Hurst, Superior) ship with an RM7800 variant because their burner sequences align with the factory-fixed timing.

Choose the RM7800 if:

• You are doing a like-for-like replacement — the existing burner was designed around RM7800 timing, and the replacement should match exactly.
• Your insurance carrier or authority having jurisdiction (AHJ) requires a specific model — many boiler inspection reports list the controller by part number, and changing to a different series may trigger a re-inspection.
• Simplicity is the priority — no DIP switches or timing cards to configure means fewer opportunities for misconfiguration during commissioning.
• You want proven reliability — the RM7800 has the longest field track record of any Honeywell flame safeguard controller.

Popular RM7800 Models

• RM7800E1010 — Measured purge, 120 VAC, gas/oil
• RM7800L1012 — Standard purge, 120 VAC
• RM7800L1079 — Standard purge, 120 VAC
• RM7800L1087 — Standard purge, 120 VAC

When to Choose the RM7840

The RM7840 earns its place when the burner's timing requirements fall outside the RM7800's fixed windows. This is more common than you might expect — custom burner packages, waste-oil systems, dual-fuel installations, and high-altitude sites often need timing adjustments that the RM7800 simply cannot provide.

Choose the RM7840 if:

• Your burner needs a non-standard purge time — some jurisdictions require extended purge periods (90+ seconds) for specific fuel types or combustion chamber volumes.
• The pilot is slow to establish — heavy fuel oil, waste oil, or low-BTU gas pilots can take longer than 10 seconds to stabilize, requiring an extended ignition trial window.
• You are retrofitting a burner to a different boiler — the original timing assumptions no longer apply, and the RM7840 lets you dial in the correct sequence without replacing the entire control panel.
• Post-purge is required — some applications need the blower to continue running after burner shutdown to clear residual combustion products.
• You want one controller model for multiple burner setups — the RM7840's adjustability means you can stock fewer spare parts and configure on-site.

Available RM7840 Models

• RM7840L1018 — Programmable LF&HF controller, adjustable purge & pilot timing
• RM7840L1075 — Programmable LF&HF controller, extended purge capability

Understanding the Part Number Suffix

The suffix after "RM7800" or "RM7840" encodes important configuration details:

When replacing an RM7800 with an RM7840 (or vice versa), do not assume the suffix carries over. An RM7800L1012 does not map directly to an "RM7840L1012." Consult the Honeywell Burner Control Cross-Reference for correct replacement mapping.

Can You Swap One for the Other?

Physically, yes — both mount on the same Q7800 subbase and use the same flame amplifiers. Functionally, there are considerations:

Replacing RM7800 with RM7840

This is common and generally straightforward. The RM7840 can be configured to match the RM7800's original timing. The risk is misconfiguration — if the DIP switches or timing card are set incorrectly, the burner may have unsafe purge or ignition intervals. Always verify settings against the original equipment manufacturer's (OEM) commissioning data.

Replacing RM7840 with RM7800

This is riskier. If the RM7840 was installed because the burner needs non-standard timing, replacing it with an RM7800 (which cannot be adjusted) may result in:

• Insufficient purge time — a safety hazard
• Ignition trial too short for the pilot to prove — repeated lockouts
• No post-purge — residual combustion products in the firebox

Only replace an RM7840 with an RM7800 if you have confirmed that the RM7800's fixed timing meets the burner's requirements and local code.

What About Upgrading to EC7800?

If you are choosing between these two controllers for a new installation or a major retrofit, consider the EC7800 series as a third option. The EC7800 offers:

• All the timing flexibility of the RM7840 plus more
• Digital self-diagnostics and fault history via the S7800A1142 Keyboard Display Module
• Same Q7800 subbase compatibility

For existing installations where the RM7800 or RM7840 is working well, there is no urgency to upgrade. But for new builds, the EC7800 is increasingly the standard specification.
