The Ultimate Preventive Maintenance Checklist for Your PLC System

Key Takeaways

To make your PLC maintenance plan work, always remember these four key ideas.

• Be Consistent: A checklist only helps if you use it all the time. A simple plan you follow is better than a perfect plan you ignore.
• Write Everything Down: Keep a log for each machine. Note what you checked, what you found, and what you fixed. This history makes it easier to solve future problems.
• Make the Checklist Fit Your Needs: Change this checklist to match your specific machines and workplace. For example, a dusty factory needs more frequent cleaning.
• Always Put Safety First: Never get careless with safety rules, even for routine jobs.

Programmable Logic Controllers (PLCs) are the brains behind factory machines. Keeping them in good shape is key to preventing sudden shutdowns and expensive fixes. Many people only fix things when they break, which is called reactive maintenance. This is a bad habit because when a key part fails, the whole production line has to stop while you rush to repair it.

A much smarter approach is PLC preventive maintenance. This involves regularly scheduled check-ups to find and fix small issues before they become catastrophic failures. Following a checklist is a great way to maintain your PLC system, helping it last longer and run without issues.

Why Your PLC System Needs Preventive Maintenance

Setting up a regular maintenance plan for your PLC is a smart move that helps your business run better and saves money. By checking it regularly, you switch from putting out fires to preventing them from starting. Here are the main benefits:

• Keeps Production Running: Regular checks help you find and fix small issues before they cause a major shutdown. This means less unexpected downtime and more products getting made.
• Makes Your Equipment Last Longer: Your automation hardware is a big investment. Good maintenance protects that investment by helping your PLCs work for many more years.
• Improves Safety: A system that's in good condition is a safer system. It's less likely to fail in a way that could put workers at risk.
• Saves Money in the Long Run: Spending a little on maintenance now saves a fortune later. You'll avoid costly emergency repairs, lost production time, and the high price of rush-ordering replacement parts.

Safety First: Critical Protocols Before You Touch Your PLC

Before working on any PLC, remember: your safety comes first. Factory machines use powerful electricity and can be dangerous if you're not careful. Always follow these key safety steps before you start:

Lock It Out (LOTO)

This is your most important safety step. Lock the power off and tag it. This ensures no one can accidentally turn the machine on while you're working on it.

Wear Your Safety Gear (PPE)

Always wear the right protective gear. This usually means safety glasses and gloves, but some jobs require special clothing to protect against electrical flashes.

Read the Manual

Keep the machine and PLC manuals nearby. They have specific instructions and safety warnings you must follow.

Get Approval

Always get the okay from your supervisor before starting work. Make sure you are authorized to do the job safely.

A good maintenance plan for your PLC is broken into simple, regular checks. You don't have to do everything all at once. Instead, you can follow a schedule that includes quick weekly scans, more detailed quarterly checks, and a full system check-up once a year.

Weekly Checks (The 15-Minute Scan)

These quick, simple checks are designed to catch obvious problems early. They can be performed with minimal disruption and require no special tools.

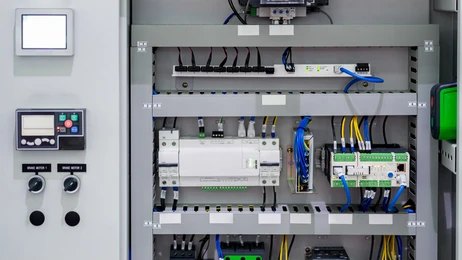

Visually Inspect the Cabinet

Look inside the PLC enclosure. Is there a buildup of dust, dirt, or moisture? Dust can act like a blanket, trapping heat and causing components to overheat. Moisture can lead to short circuits and corrosion. The cabinet should be clean and dry.

Check the Indicator Lights (LEDs)

The LEDs on the front of the CPU and I/O modules are the PLC's voice. Check that the "Power" and "Run" lights are solid green. Note any flashing or solid red "Fault" lights, as these indicate an immediate problem that needs investigation. A lit "BAT" (Battery) light is a critical warning that the memory backup battery is low.

Confirm Proper Ventilation

Most control cabinets have fans or vents to dissipate heat. Place your hand near the exhaust vent to feel for airflow. Make sure cooling fans are spinning and that vents are not blocked by boxes, jackets, or other items. Overheating is a primary cause of electronic failure.

Secure the Environment

Check that the cabinet door is securely closed and latched. This keeps out dust, moisture, and contaminants. Also, ensure the area around the cabinet is clear of obstructions, debris, and liquids that could create a hazard.

Quarterly Checks (The Deeper Dive)

Every few months, you should do a more detailed check. It takes more time, but it's very important for finding hardware problems before they get worse.

Check the Wires and Connections

First, make sure the power is completely off by following the Lockout/Tagout (LOTO) rules. Once it's safe, look closely at the spots where wires are screwed into the PLC and its parts. You should check for any burn marks or dark spots, as these are signs of overheating from a loose wire. Also, look for any cracked or peeling wire covers (insulation). Finally, gently pull on each wire to make sure it is tight and secure. This is a necessary step because machine vibrations can make wires come loose over time.

Make Sure All Parts Are Plugged in Tightly

Gently push on all the PLC parts—like the main CPU, the power supply, and all the input/output (I/O) cards. You want to make sure they are snapped in securely to the rack they sit in. If a part comes loose from vibration, it can cause random errors that are very difficult to track down.

Clean or Change the Cabinet Filters

The air filters on the control cabinet are what stop dust from getting inside. If a filter gets clogged with dirt, cool air can't get through, and the PLC can overheat. You should clean or replace the filters regularly. Check the filter's manual for a schedule, or do it more often if your workplace is very dusty.

Check the Power Supply Voltage

While the PLC's power is on, you need to carefully use a properly working multimeter to check its voltage. This is a key step to make sure the PLC is getting clean and steady power. You need to check two things:

• The power going into the PLC's power supply.
• The power coming out of the power supply, which is what runs the PLC itself (this is usually around 24 volts DC).

The voltage for both should be stable (not jumping around) and very close to the target number listed in the manual. An unsteady power supply is a common cause of random and confusing PLC errors.

Annual Checks (The Full System Health Audit)

Once a year, your PLC system needs a full check-up. This deep inspection is needed to keep it running well for years to come and to make sure its program is safe and correct. This is the most detailed part of your entire maintenance plan.

Perform a Full Program Backup

This is arguably the most critical annual task. Connect to the programmable logic controller with the programming software and upload the entire program. This operation requires engineers to have a deep understanding and practice of PLC programming. Save this backup in at least two secure locations (e.g., a network drive and a local computer). Add a date and comments to the filename. A verified backup is your only lifeline if the CPU fails and its memory is lost.

Replace the Backup Battery

The small battery inside the PLC is what saves your program if the main power goes out. These batteries don't last forever, so you should plan to replace them as a precaution. Do not wait for the "BAT" warning light to turn on. It's best to replace the battery every couple of years during your scheduled maintenance. To avoid losing the program, you must usually replace the battery while the PLC's main power is still ON. Warning: This can be dangerous. Always check the manual for your exact PLC model to know the safe and correct steps before you do anything.

Check Terminal Torque

Over time, thermal cycles (heating and cooling) and vibration can cause screw-down terminals to loosen. Use a calibrated torque screwdriver to tighten all power, communication, and I/O wiring connections to the manufacturer's specified torque value. Overtightening can be just as bad as undertightening.

Check the System's Fault Log

Use your PLC programming software to open the system's fault log. This is a list of all the errors the PLC has recorded over time.

Your goal is to look for errors that happen over and over again. For example, if you see the same error message for a specific part, it could be a sign that the part is starting to fail or that there's a problem with a connected sensor.

This log gives you important clues that can help you find and fix hidden problems before they cause a shutdown.

Audit Your Spare Parts

Check your collection of spare parts. Make sure you have spares for the most important PLC components, like the main CPU, the power supply, and the most common I/O cards you use in your factory. A broken part can shut down your line, and it's a much bigger problem if a replacement will take weeks to be delivered.

Also, check that your spare parts are stored correctly. They should be kept in a clean, dry place that is safe from static electricity to make sure they work when you need them.

4 FAQs about PLC Maintenance

Q1: How often should I really back up my PLC program?

A: You should back up your PLC program at least once a year. Most importantly, you must always create a new backup right after you make any change to the program, even if it's just a small one.

Q2: What's the most common cause of PLC failure?

A: The most common culprits are I/O module failures (from issues with connected sensors/actuators), power supply problems (from unstable line voltage or age), and environmental stress (excessive heat, vibration, or contamination).

Q3: My "BAT" (Battery) light is on. What should I do?

A: The "BAT" light is a serious warning. It means the backup battery that saves your program is almost dead. If the main power to the PLC goes out, its memory will be erased, and you will lose the entire program.

You need to replace the battery as soon as possible. To avoid losing the program, it is very important to replace the battery while the PLC's main power is still ON.

Q4: Can I use a regular vacuum to clean a PLC cabinet?

A: This is not recommended. Standard vacuums can generate a large amount of static electricity (ESD - Electrostatic Discharge), which can instantly destroy sensitive electronic components. Use a designated ESD-safe vacuum or low-pressure, clean, dry compressed air to blow out dust.

Build a Reliable PLC Maintenance Plan

Your PLC is built to be tough, but it's not unbreakable. By focusing on preventing problems instead of just fixing them, you put yourself in charge of your factory's machines. A steady, well-recorded maintenance program is one of the best ways to boost your factory's output and ensure it succeeds for years to come.
