How to Backup and Restore a PLC Program: A Simple Step-by-Step Guide

The instructions inside a Programmable Logic Controller (PLC) are the brains behind modern automation. When that logic is lost, the machinery is useless. This article shows you a straightforward, universal process for performing a PLC program backup and restoring it when needed. While the software for different brands like Siemens, Allen-Bradley, or Mitsubishi may look different, the core steps and principles are the same. Following them can save you from massive headaches and lost revenue.

Why You Must Have a Regular PLC Backup

Knowing the risks shows why a good PLC backup is so important. It's a key job for any team that keeps machines running right.

Protect Against Hardware Failure

PLCs are strong, but they can break. A power surge from lightning can fry a chip. Too much heat or shaking can also cause damage over time. If a PLC fails, you have to replace it. With no backup, the code is lost for good. A new PLC program backup lets you put the code on a new PLC and get it running again in hours instead of weeks.

Prevent Problems from Human Error

People make mistakes. A tech might delete a line of code by accident. An operator could enter a wrong number and stop the machine. A good backup lets you quickly put the old PLC program back. This turns a big problem into a simple fix.

Update and Change Programs Safely

You will need to change the PLC program to make the machine faster or add a new part. Always make a full backup before you change any code. If the new changes cause problems, you can easily go back to the old program that worked.

Recover from Disasters

Big problems like fires, floods, or computer attacks can damage your machines. A good recovery plan explains how to get things working again. Being able to restore a PLC program is a key part of that plan. Always verify the integrity of your backup files before restoring, to ensure they haven't been corrupted or tampered with during a cyber incident. This saves the critical code that makes your machines work.

What You Need Before Backing Up Your PLC

Getting your things in order before you connect to the PLC will make the job faster and safer. A little bit of prep time helps you avoid common problems.

The Right PLC Software

You need the right software for your PLC's brand and model. For example, use TIA Portal for newer Siemens PLCs, or Studio 5000 for Rockwell controllers. The wrong software won't work.

The Correct Communication Cable

You can connect to the PLC in different ways. Most new PLCs use a normal Ethernet cable. Older or smaller PLCs might need a special USB adapter or a custom cable. Check that you have the right cable for your machine.

A Reliable Laptop or PC

Your computer must have the PLC software on it, and it needs to work well. If you're out on the factory floor, be sure your laptop battery is full, or you can plug it in. If the computer dies during a restore, it can break the PLC's program.

PLC communication information

When you are connecting over a network, you are in need for PLC IP address. You can either look for it in a pre-printed tag on a control box or in machine wiring diagrams.

A Safe Storage Facility

Select a safe location where you can safely store your backup file. Set a special directory for it in your computer, a network share or a USB stick. Where possible, use secure and access-controlled storage (such as a password-protected server or encrypted cloud service). PLC programs are part of your plant's intellectual property and should be protected from unauthorized access. Do not save it directly on your desktop in case you might delete it by mistake.

Part 1: Step-by-Step Guide to Backing Up a PLC Program (The "Upload")

With your tools ready, you can now perform the backup. In the world of PLCs, taking a program from the controller and saving it to your computer is called an "upload."

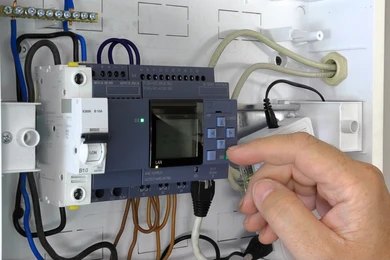

Step 1: Connect Your Hardware

First, make a physical connection. Plug your communication cable at the right port at the PLC and at the other side on your laptop. Secure the connections.

Step 2: Launch Software and Establish Communication

Open your laptop's programming software. This software is the key tool for all PLC operations (including basic PLC programming). You will need to set up the communications path so the software understands how it should locate the PLC. Typically you would set up the network type (e.g., Ethernet/IP) and browse for or enter the PLC's address manually. Once you identify the controller with software it can make an "online" connection.

Step 3: Conduct the Upload

Once you are online with the PLC, search for a command such as "Upload from Device," "Backup," or "Read from PLC." The actual wording differs with software. The software program then would read the complete project—the logic, hardware configuration, as well as values for data—all out of the PLC's memory and transfer it to your computer.

Step 4: Save and Document Your Backup File

When you complete an upload, you will be prompted by software if you'd like to save your project. Yes, you should. That is a critical step. Store the file in the safe location you set up in an earlier step. Add a descriptive file name. A handy format is machine name, project name, date: Packaging-Line-5_Main-Program_2025-08-27.ACD. Then you won't be mixed up later.

Part 2: Step-by-Step Guide to Restoring a PLC Program (The "Download")

Restoring is more important than backing up since it writes over the controller's memory. When you send a program from your PC to a PLC in PLC-speak, it is referred to as a "download."

Step 1: Identify and Open the Proper Backup File

Prior to connecting it to anything, find the actual backup file you desire. Double-check its name and date so you are sure it is the proper version. A machine may be harmed if you load the wrong PLC program. Open this file within your programming program.

Step 2: Connect to the Target PLC

Just like with a backup, connect your laptop to the PLC with the correct cable and establish an online connection using the programming software.

Step 3: Stop the PLC's Processor

You can't alter the program when the PLC is currently operating the machine. The software will require you to change the PLC's mode to either "PROGRAM" or "STOP." Before doing so, make sure the machine is in a safe state. Follow your company's lockout/tagout (LOTO) and safety protocols if required. This prevents unexpected movement or accidents while restoring the PLC program.

Step 4: Carry Out the Download (Restore)

With the proper project open and the PLC in program mode, locate the "Download to Device" command. The software is now going to compile the project and transmit it over the cable to the PLC, replacing whatever was in its memory. You may or may not be prompted for confirmation a few times. Double-check those prompts carefully before you click on "Yes."

Step 5: Verify and Return to "Run" Mode

Once the download finishes successfully, the software will give you the option to switch the PLC back to "RUN" mode. After doing so, carefully observe the machine. Verify that it starts up correctly and all functions are working as they did before.

Best Practices for PLC Backup Management

Creating a backup is just the first step. Proper management ensures your backups are useful when you actually need them. Following a few simple rules will keep your files organized and reliable.

Maintain Version Control

Do not just save over your old backup file with a new one. Keep a few of the most recent versions. You can add a version number to your file name, such as V1.1 or V1.2. This helps if you discover the most recent change introduced a problem and you need to go back further.

Create a Schedule

Do not wait for a problem to occur. Make PLC program backup a part of your standard preventive maintenance tasks. For critical machines, a quarterly or even monthly backup is a smart policy, even if no changes have been made.

Use the 3-2-1 Rule

This is a data-security standard that works perfectly here. Keep at least three total copies of your most important backups. Store them on two different types of media (e.g., your laptop's hard drive and a network server). Keep one copy in a different physical location (off-site), such as on a cloud drive or a USB stick stored in a fireproof safe.

4 FAQs About PLC Program Backup and Restore

Q1: How often should I back up my PLC program?

A: You should perform a backup immediately after any changes are made to the logic. For critical machines, it's a good practice to create a fresh backup on a regular schedule, like every quarter, even if nothing has changed.

Q2: Can I use a backup from one PLC on a different model?

A: Typically, no. A backup is specific to the PLC model and its exact hardware configuration (the input/output cards attached to it). Moving a program to different hardware is a more involved migration process, not a simple restore.

Q3: What is the difference between "upload" and "download" for PLCs?

A: The terms are the opposite of what you might expect. You upload from the PLC up to your PC to create a backup. You download from your PC down to the PLC to perform a restore.

Q4: What if I lost the original project file and only have the program on the PLC?

A: This is a perfect scenario for an upload. By connecting to the PLC and performing an upload, you can recreate the project file on your computer. Keep in mind, most PLCs do not store rung comments, variable descriptions, or documentation inside memory. They usually only retain raw logic and tag numbers. Unless the programmer deliberately stored this data in the controller, uploaded files may look less descriptive and harder to read.

Protect Your PLC Programs with a Final Backup Check

Securing your PLC programs is not hard, but it is critically necessary. A regular routine backup is the least expensive insurance you can buy for unforeseeable and costly downtime. Take ten minutes today to connect to a critical machine and make a brand-new, completely annotated PLC backup. It is a simple step that can prevent a whole operation disaster in the future.
