Preventa XPS | Schneider | XPS-AF5130 Preventa XPS AF Safety Relay XPSAF5130

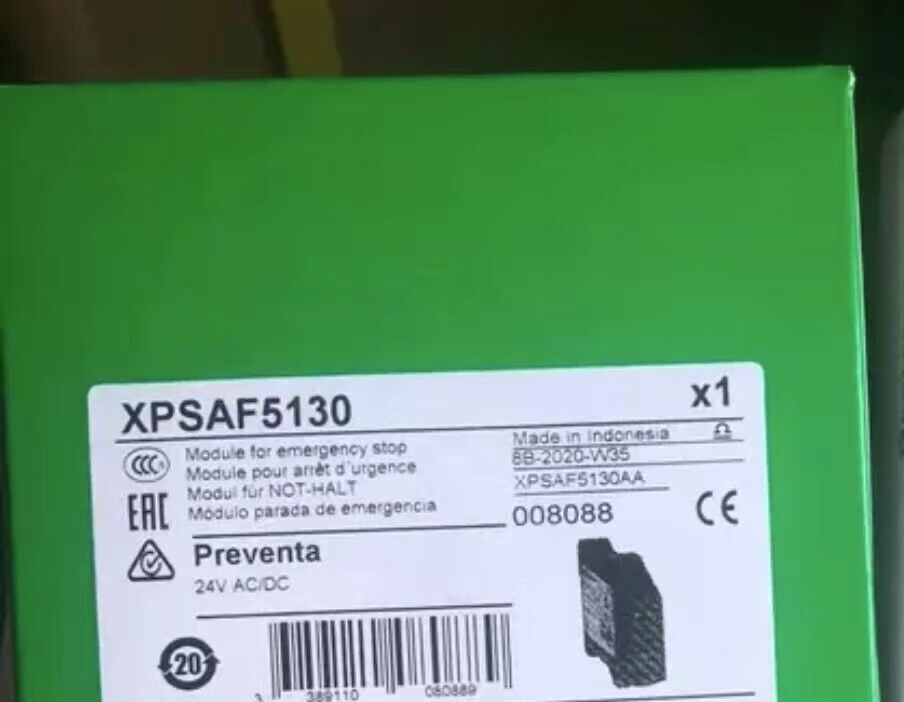

Product Description: Schneider Electric XPSAF5130

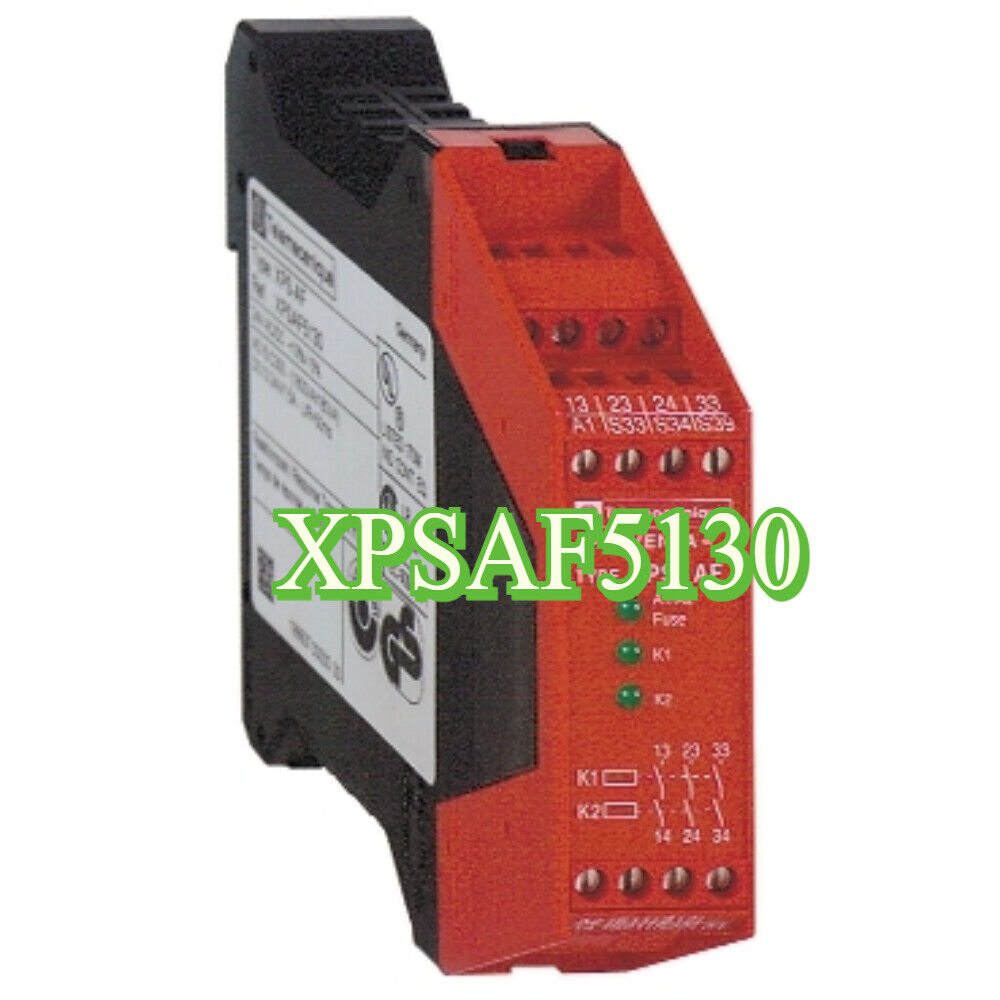

The Schneider Electric XPSAF5130 is a safety relay module from the Preventa XPS AF series, designed for emergency stop and safety monitoring applications. It operates with a 24 V AC/DC power supply and provides dual-channel input monitoring with redundant circuitry. The unit features 3 normally open (N/O) safety outputs and 1 normally closed (N/C) signaling output, suitable for integration into high-integrity safety circuits.

Key Features

• Dual-channel emergency stop monitoring
• 3 N/O safety outputs for actuator control
• 1 N/C signaling output for status indication
• Supply voltage: 24 V AC/DC
• Conforms to EN/ISO 13849-1 Category 4, PLe and IEC 61508 SIL 3
• Manual or automatic reset configuration
• LED indicators for power, input status, and fault diagnostics
• Compact DIN rail mountable housing

Technical Specifications

• Supply voltage range: 20.4 to 26.4 V DC / 20.4 to 26.4 V AC
• Input type: Dual-channel with cross-short detection
• Output contact rating: 6 A at 250 V AC or 24 V DC (resistive load)
• Response time: < 20 ms
• Mechanical life: ≥ 10 million operations
• Electrical life: ≥ 100,000 operations at full load
• Power consumption: ≤ 2.5 W
• Operating temperature: -10°C to +55°C
• Storage temperature: -40°C to +85°C
• Protection degree: IP20 (housing), IP40 (front face)
• Mounting: 35 mm DIN rail (EN 60715)
• Width: 45 mm

Application Areas

• Emergency stop circuits
• Safety gate and limit switch monitoring
• Packaging and handling machines
• Presses, cutters, and rotating machinery
• Functional safety systems in industrial automation

Advantages

• High safety performance in compact design
• Simple wiring with dual-channel input support
• Reliable diagnostics via LED indication
• Fast response time for critical stop functions
• Easy integration into safety-rated control architectures
