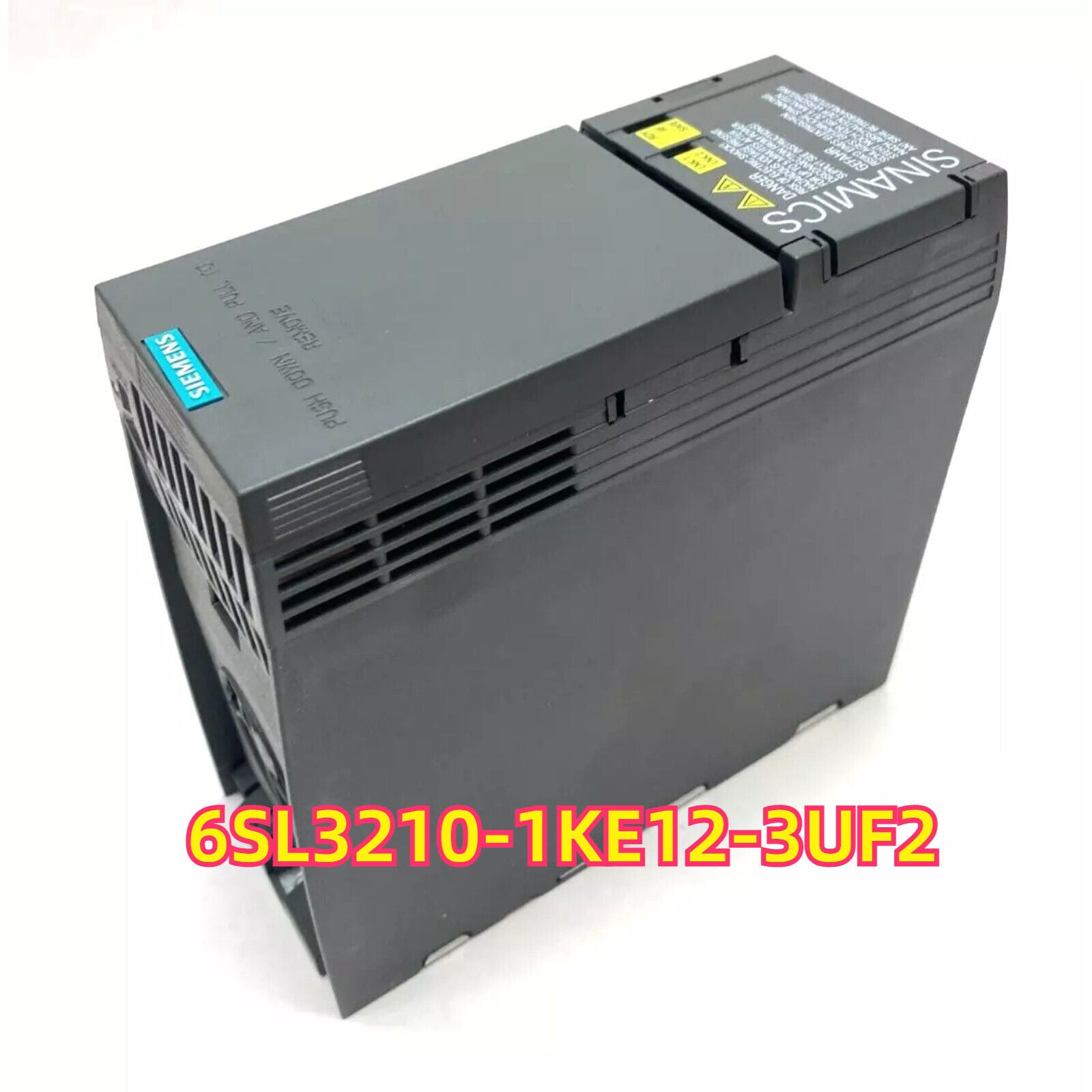

Product Description: Siemens 6SL3210-1KE12-3UF2

The Siemens 6SL3210-1KE12-3UF2 is a mid-range converter in the SINAMICS V20 family, offering straightforward motor control for general- purpose applications. Delivering 1.5 kW of continuous power, it provides reliable speed and torque regulation for standard induction or permanent- magnet motors. Featuring an onboard keypad, SD-card parameter cloning, and an integrated brake-chopper for dynamic braking, this V20 variant simplifies commissioning and reduces external component needs. Its rugged IP20 housing, wide voltage tolerance, and basic safety integration make it ideal for pumps, fans, conveyors, and light machinery.

Key Features

• Rated Power: 1.5 kW (2 HP) at 400 V, overload 150 % for 60 s
• Input Voltage: 3 AC 380 … 480 V AC (–10 % to +10 %), 47 … 63 Hz
• Output Frequency Range: 0 … 550 Hz (V/f control or sensor- less vector)
• Integrated Brake-Chopper: Enables fast DC-bus energy dissipation (external resistor required)
• Safety Integrated: Safe Torque Off (STO) on board for basic functional safety
• User Setup: Built-in keypad for local operation; SD-card slot for fast parameter cloning
• Protection & Diagnostics: Over- current, over-voltage, under-voltage, motor over-temperature, and short- circuit protection with clear fault codes
• Cooling: Internal fan, front- accessible for easy maintenance

Technical Specifications

• Mains Voltage: 3 AC 380 … 480 V ±10 %
• Mains Frequency: 47 … 63 Hz
• Rated Output Power: 1.5 kW (2 HP)
• Rated Output Current: 3.6 A
• Overload Capability: 150 % Iₙ for 60 s / 200 % for 3 s
• Output Frequency: 0 … 550 Hz
• Switching Frequency (factory setting): 4 kHz (selectable 2 … 16 kHz)
• Efficiency: ≥ 95 %
• Brake-Chopper: Integrated (external resistor required)
• Frame Size / Width: FSA / 45 mm
• Dimensions (W × H × D): 45 mm × 240 mm × 143 mm
• Weight: ≈ 1.4 kg
• Cooling Method: Forced-air (internal fan)
• Protection Class: IP20 (cabinet mounting)
• Ambient Temperature: –10 °C … +50 °C (derating to +60 °C)
• Safety Function: STO (IEC 61800-5-2, SIL 2 / PL d)

Application Areas

• Speed control of pumps, fans, and small compressors
• Conveyor and material-handling systems in light industrial settings
• Basic machine automation tasks requiring simple speed regulation
• HVAC systems and water treatment plants

Advantages

• Quick Commissioning: Built-in keypad and SD-card cloning minimize setup time.
• Integrated Safety: On-board STO eliminates need for external safety contactors.
• Compact Design: 45 mm width conserves cabinet space.
• Reliable Performance: Wide voltage tolerance and comprehensive protection ensure uptime.
• Cost-Effective: Optimized feature set for mid-range applications without added complexity.
