Product Description: Siemens 6SL3210-1KE11-8AF2

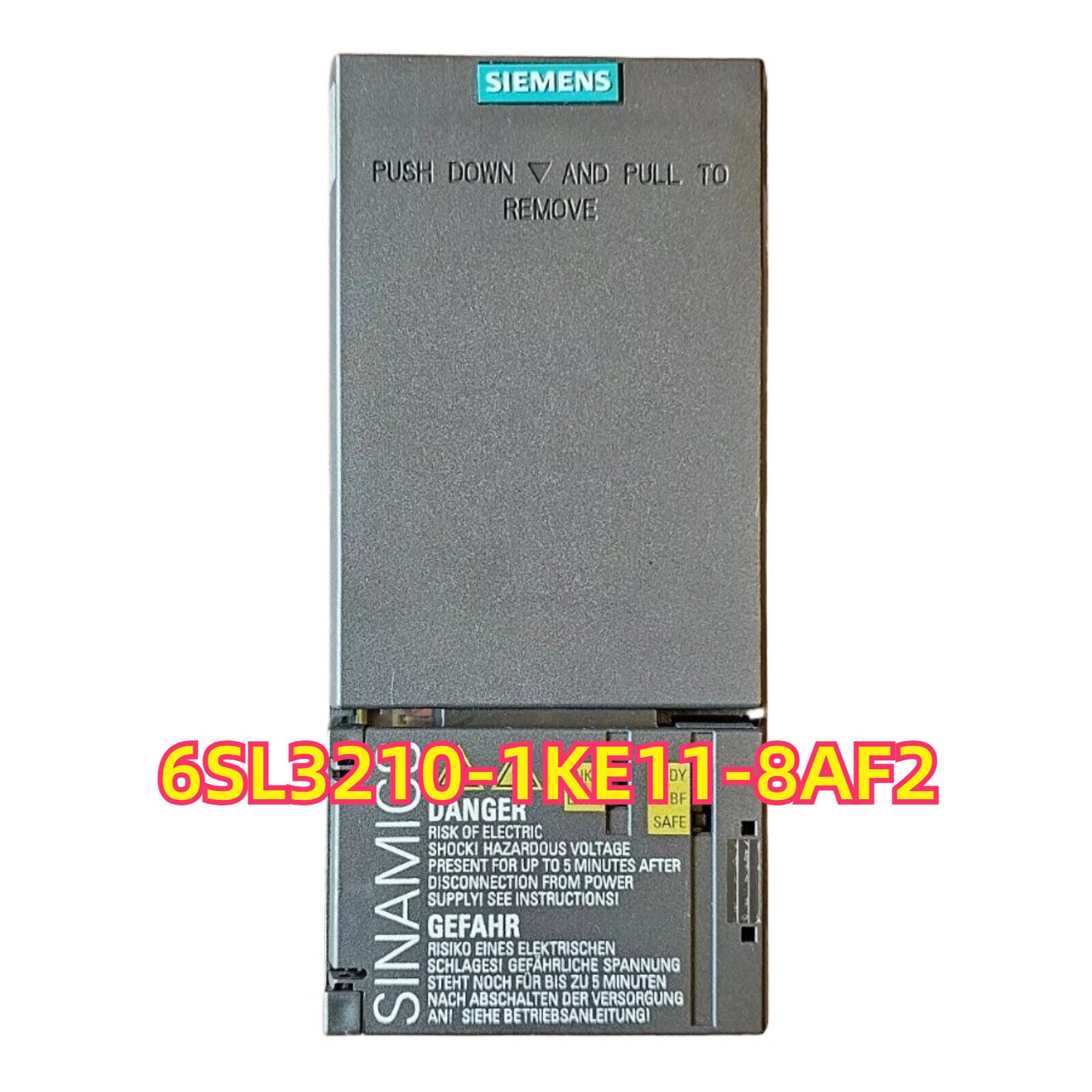

The Siemens 6SL3210-1KE11-8AF2 is a compact, entry-level converter from the SINAMICS V20 family, designed for straightforward motor control tasks. Delivering 1.1 kW of continuous output power, it provides reliable speed and torque regulation for standard induction or permanent- magnet motors. With built-in parameter cloning via SD card and an integrated brake-chopper for dynamic deceleration, this V20 model streamlines commissioning and reduces external component requirements. Its rugged IP20 housing, wide supply tolerance, and basic safety integration make it ideal for pumps, fans, conveyors, and simple machine automation.

Key Features

• Rated Power: 1.1 kW (1.5 HP) at 400 V, overload 150 % for 60 s
• Input Voltage: 3 AC 380 … 480 V (-10 % to +10 %), 47 … 63 Hz
• Output Frequency Range: 0 … 550 Hz (V/f control or sensor-less vector)
• Integrated Brake-Chopper: Enables fast DC- bus energy dissipation (external resistor required)
• Safety Integrated: Safe Torque Off (STO) on board for basic functional safety
• User Setup: Built-in keypad for local control; SD card slot for parameter cloning
• Protection & Diagnostics: Over-current, over-voltage, under-voltage, motor over- temperature, and short-circuit protection with clear fault codes
• Cooling: Internal fan, front-accessible for easy maintenance

Technical Specifications

• Mains Voltage: 3 AC 380 … 480 V ±10 %
• Mains Frequency: 47 … 63 Hz
• Rated Output Power: 1.1 kW (1.5 HP)
• Rated Output Current: 2.4 A
• Overload Capability: 150 % Iₙ for 60 s / 200 % for 3 s
• Output Frequency: 0 … 550 Hz
• Switching Frequency (factory setting): 4 kHz (selectable 2 … 16 kHz)
• Efficiency: ≥ 94 %
• Brake-Chopper: Integrated (external resistor required)
• Frame Size / Width: FSA / 45 mm
• Dimensions (W × H × D): 45 mm × 240 mm × 143 mm
• Weight: ≈ 1.3 kg
• Cooling Method: Forced-air (internal fan)
• Protection Class: IP20 (cabinet mounting)
• Ambient Temperature: –10 °C … +50 °C (derating to +60 °C)
• Safety Function: STO (IEC 61800-5-2, SIL 2 / PL d)

Application Areas

• Speed control of pumps, fans, and small compressors
• Conveyor and material-handling systems in light industrial settings
• Basic machine automation tasks requiring simple speed regulation
• HVAC systems and water treatment plants

Advantages

• Quick Commissioning: Built-in keypad and SD-card cloning slash setup time.
• Integrated Safety: On-board STO eliminates need for external emergency-stop contactors.
• Compact Design: 45 mm width saves panel space in control cabinets.
• Reliable Performance: Wide voltage tolerance and comprehensive protection ensure uptime.
• Cost-Effective: Optimized feature set for entry-level applications without unnecessary complexity.
