Variable Frequency Drive | Siemens | 6SE6420-2UD23-0BA1 3KW 380V 6SE6 420-2UD23-0BA1

Product Description: 6SE6420-2UD23-0BA1

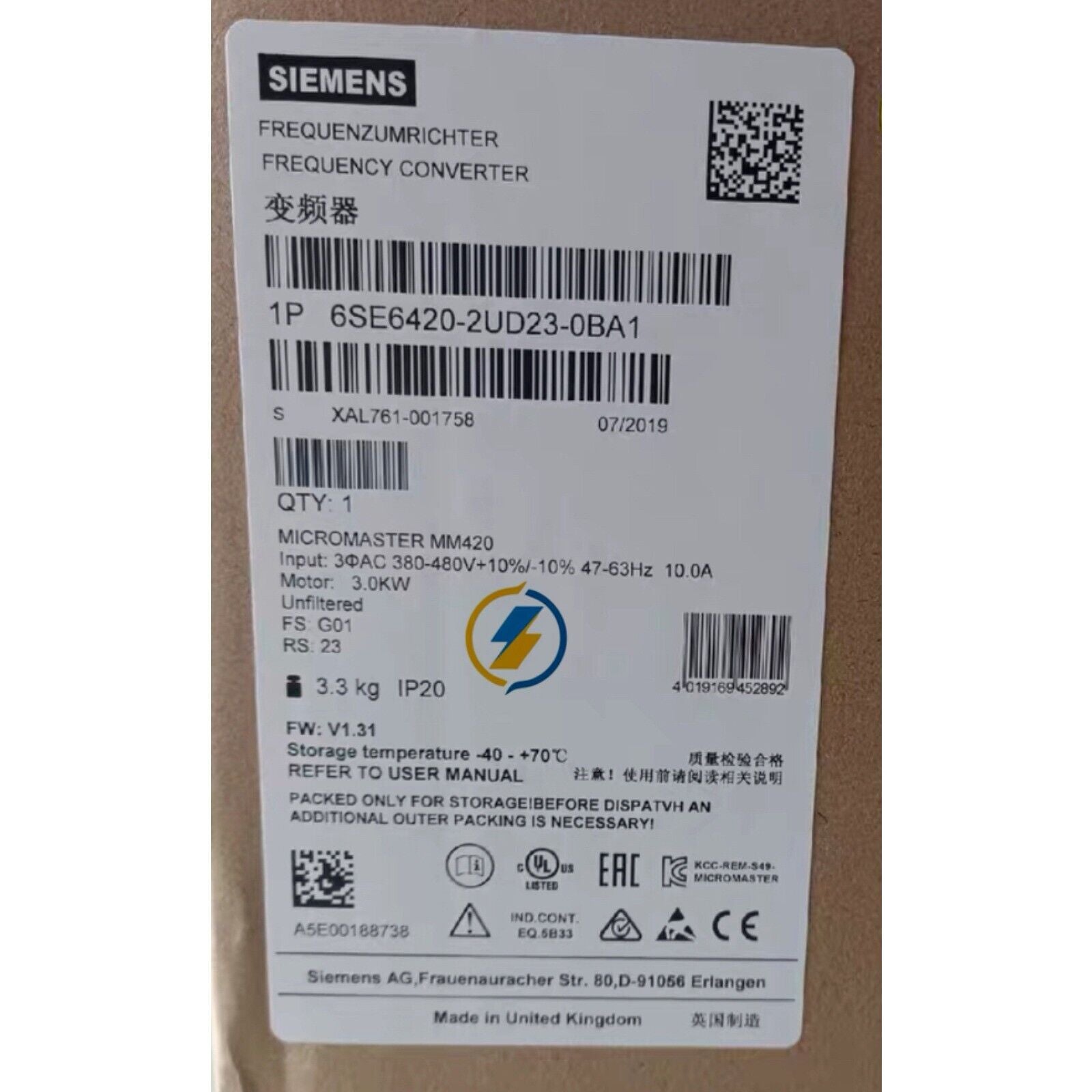

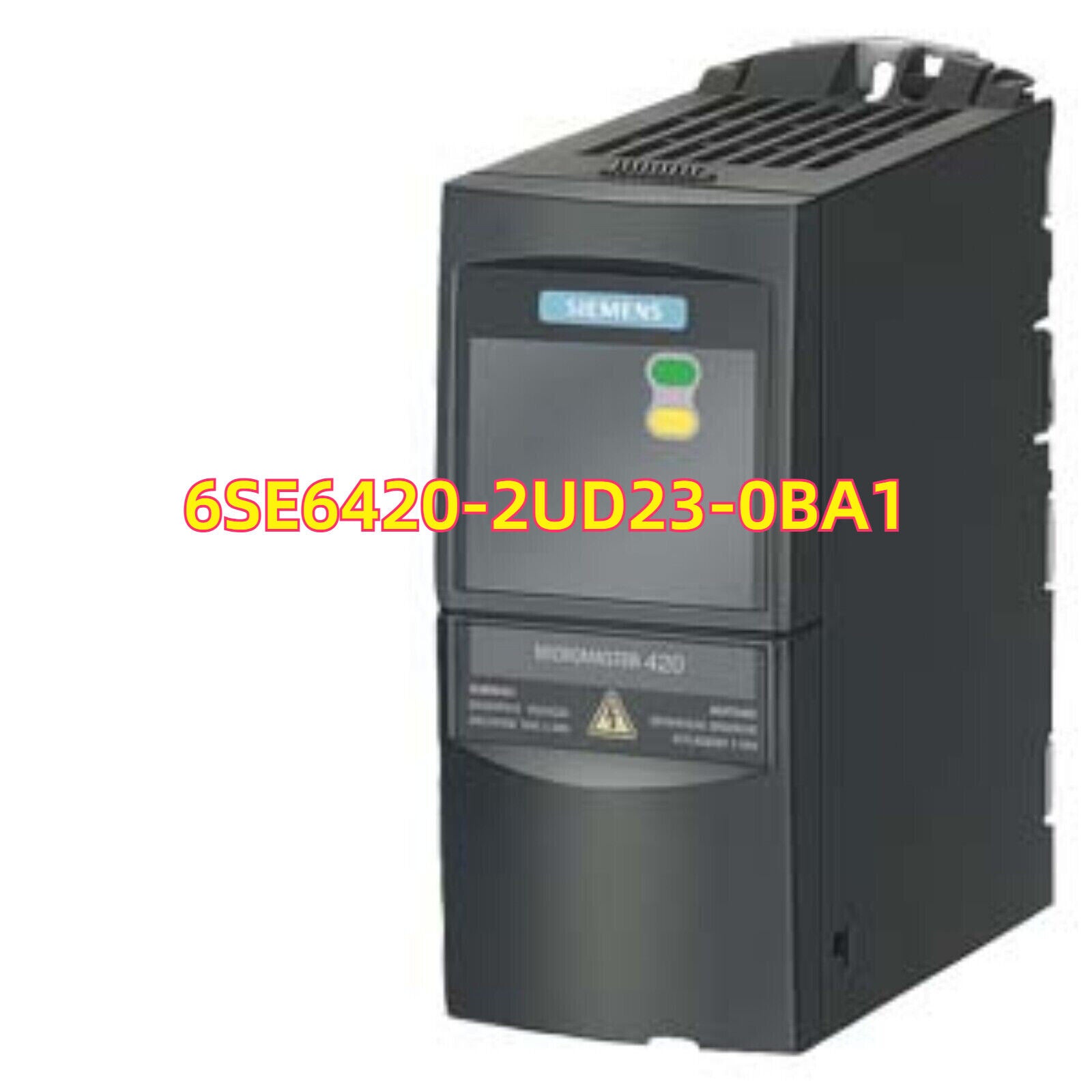

The 6SE6420-2UD23-0BA1 is a MICROMASTER 420 series VFD designed for precise speed and torque control of three-phase AC motors up to 4 kW (5 HP). It accepts a 380–480 V AC ±10 % input, features sensor-less vector control, and includes an integrated braking chopper. Delivered without an internal EMC filter, it allows users to install a site-specific external filter. Enclosed in an IP20 panel-mount housing, it’s ideal for pumps, fans, conveyors, and general-purpose machinery.

Key Features

• Sensor-less Vector Control: High dynamic response and accurate speed regulation
• Integrated Braking Chopper: Supports rapid deceleration with an external resistor
• Flexible I/O: 3 programmable digital inputs; 1 analog input (0–10 V / 0–20 mA); 1 analog output; 1 relay output
• Modular Communications: Optional PROFIBUS-DP, CANopen, DeviceNet, or USS (RS-485) modules
• Quick Commissioning: Parameter macros and Basic Operator Panel (BOP) or PC STARTER tool
• Wide Temperature Range: –10 °C to +50 °C (up to +60 °C with derating)

Technical Specifications

• Rated Output Power: 4 kW (5 HP)
• Input Voltage: 3AC 380–480 V AC ±10 %, 47–63 Hz
• Output Current: ≈ 9 A continuous
• Control Modes: V/f (linear/quadratic), sensor-less vector
• EMC Filter: None (external filter optional)
• Braking Chopper: Integrated (external resistor required)
• Enclosure Protection: IP20 (panel-mount)
• Cooling: Internal fan
• Dimensions (W×H×D): ≈ 149 × 173 × 149 mm
• Weight: ≈ 3.4 kg

Application Areas

• Pump and fan control in HVAC and water treatment
• Conveyors and material handling drives
• Mixers, compressors, and general-purpose machinery
• OEM equipment requiring custom EMC solutions

Advantages

• Customizable EMC filtering to meet site-specific standards
• Proven MICROMASTER 420 platform for reliable, long-term operation
• Easy integration with standard I/O and optional fieldbus modules
• Cost-effective vector control without unnecessary extras
• Compact design saves panel space and simplifies wiring
