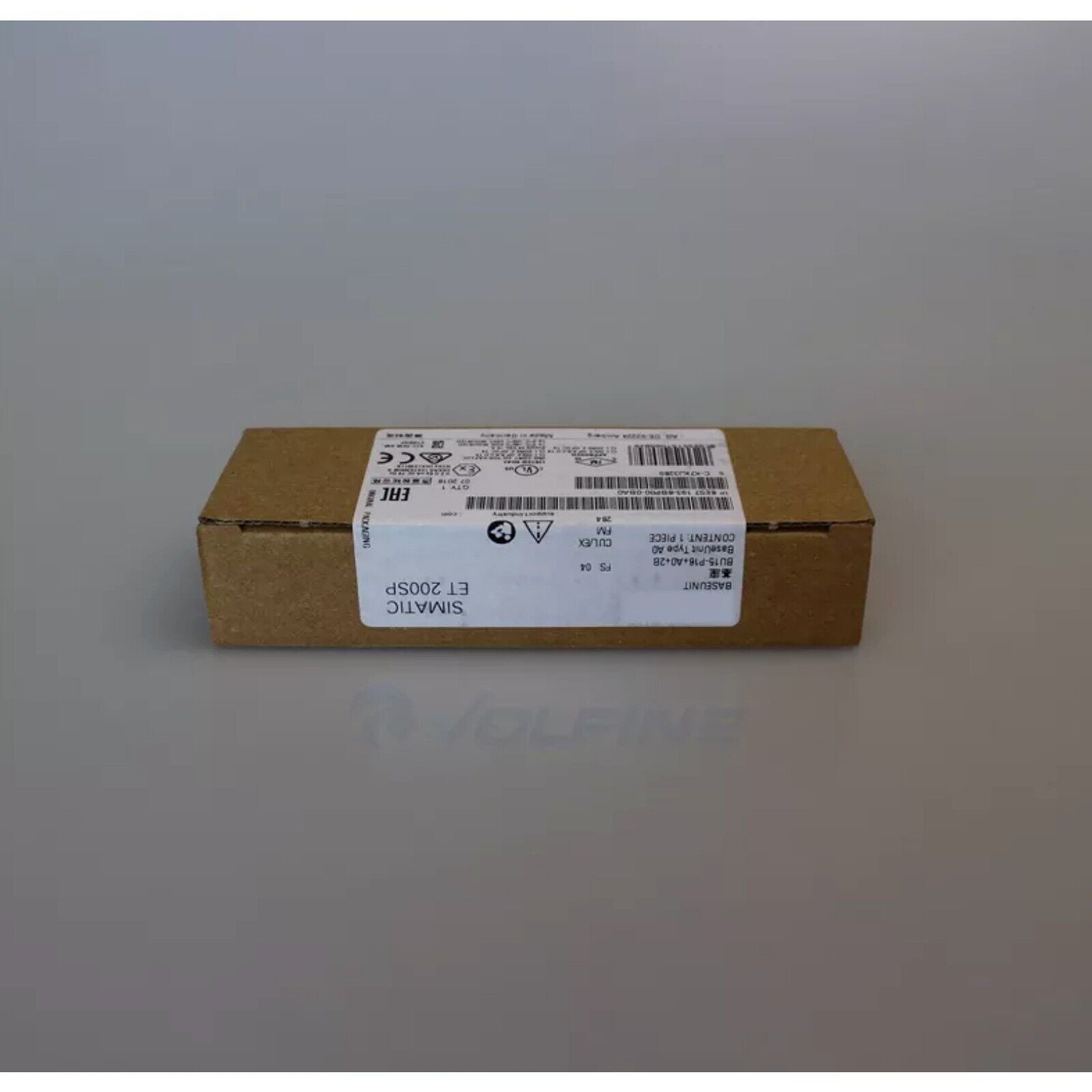

Product Description: Siemens 6ES7193-6BP00-0BA0

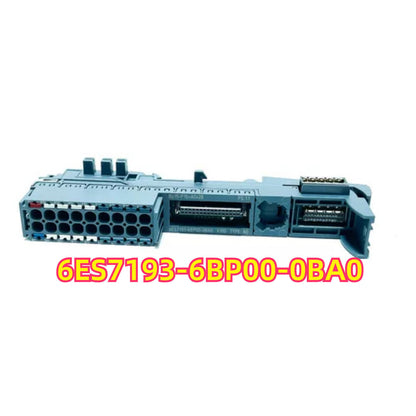

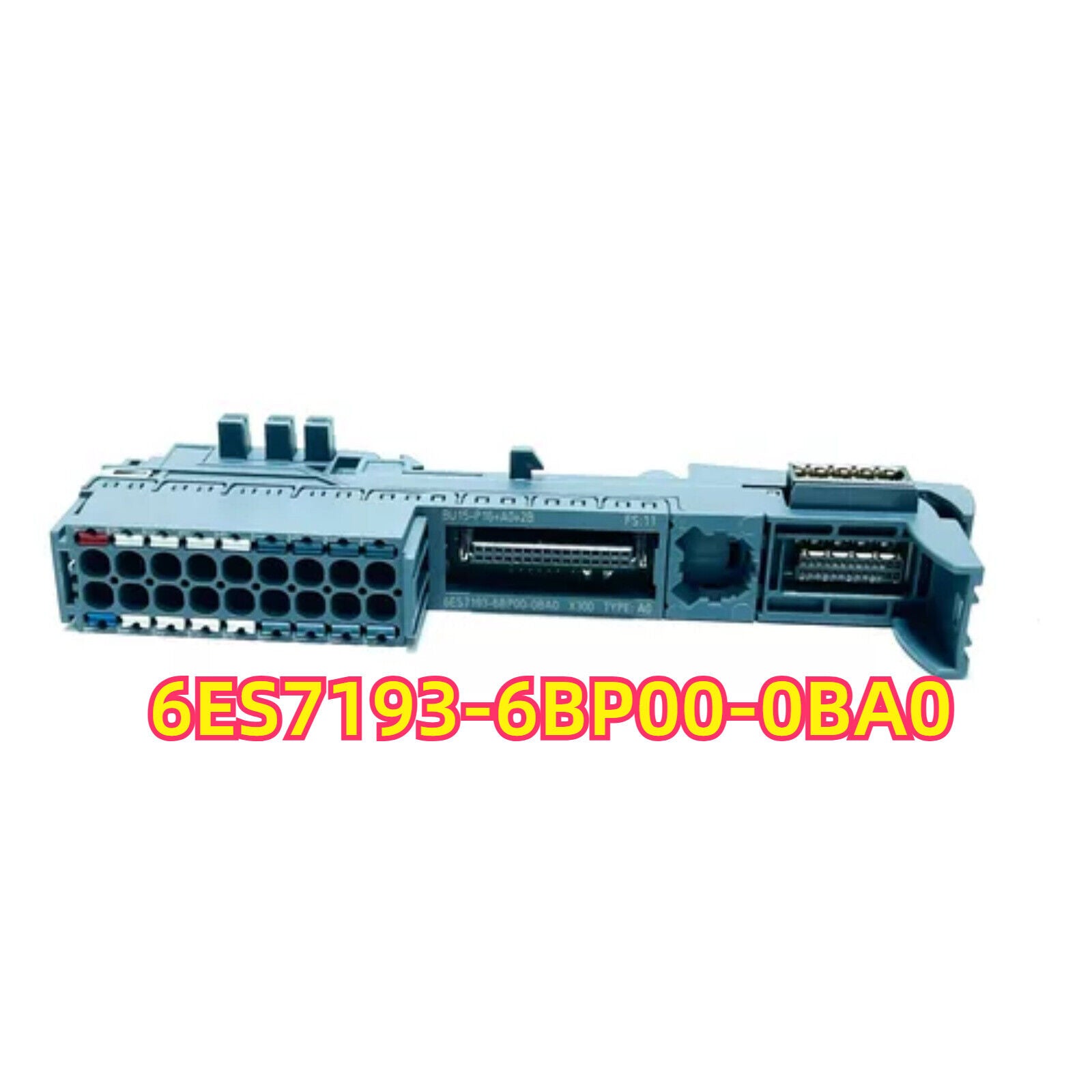

The Siemens 6ES7193-6BP00-0BA0 is a compact and versatile Base Unit designed for the SIMATIC ET 200SP distributed I/O system. This unit serves as the central interface between the I/O modules and the communication bus, facilitating efficient data exchange and system integration. It features push-in terminals for secure and tool-free wiring, and is bridged to the left for seamless integration into the automation system. With a width of 15 mm and a height of 117 mm, it offers a space-saving solution for control cabinets.

Key Features

• Terminal Type: Push-in terminals for easy and secure connections.
• Current Carrying Capacity: Maximum 10 A for P1 and P2 bus; 2 A for process terminals.
• Supply Voltage: 24 V DC, with external protection using a 10 A miniature circuit breaker (type B or C).
• Isolation: Tested with 707 V DC (type test).
• Ambient Temperature Range: -30°C to +60°C for horizontal installation; -30°C to +50°C for vertical installation.
• Altitude: Operational up to 5,000 meters above sea level; restrictions apply above 2,000 meters.
• Dimensions: Width: 15 mm; Height: 117 mm; Depth: 35 mm.
• Weight: Approximately 40 g.

Application Areas

• Factory Automation: Ideal for controlling and monitoring automated machines and production lines.
• Process Control: Suitable for applications requiring precise control and monitoring of processes.
• Building Automation: Can be used in building systems for controlling HVAC, lighting, and other systems.
• Infrastructure Automation: Applicable in utilities and infrastructure systems for monitoring and control.

Advantages

• Compact Design: Saves space in control cabinets, allowing for more efficient use of available space.
• Easy Wiring: Push-in terminals facilitate quick and secure connections without the need for tools.
• Flexible Integration: Bridged to the left for seamless integration into the automation system.
• Reliable Performance: Designed to operate reliably in a wide range of environmental conditions.
