Modicon M221 | Schneider | TM221C16R PLC Module Fast Shipping Brand New In Box

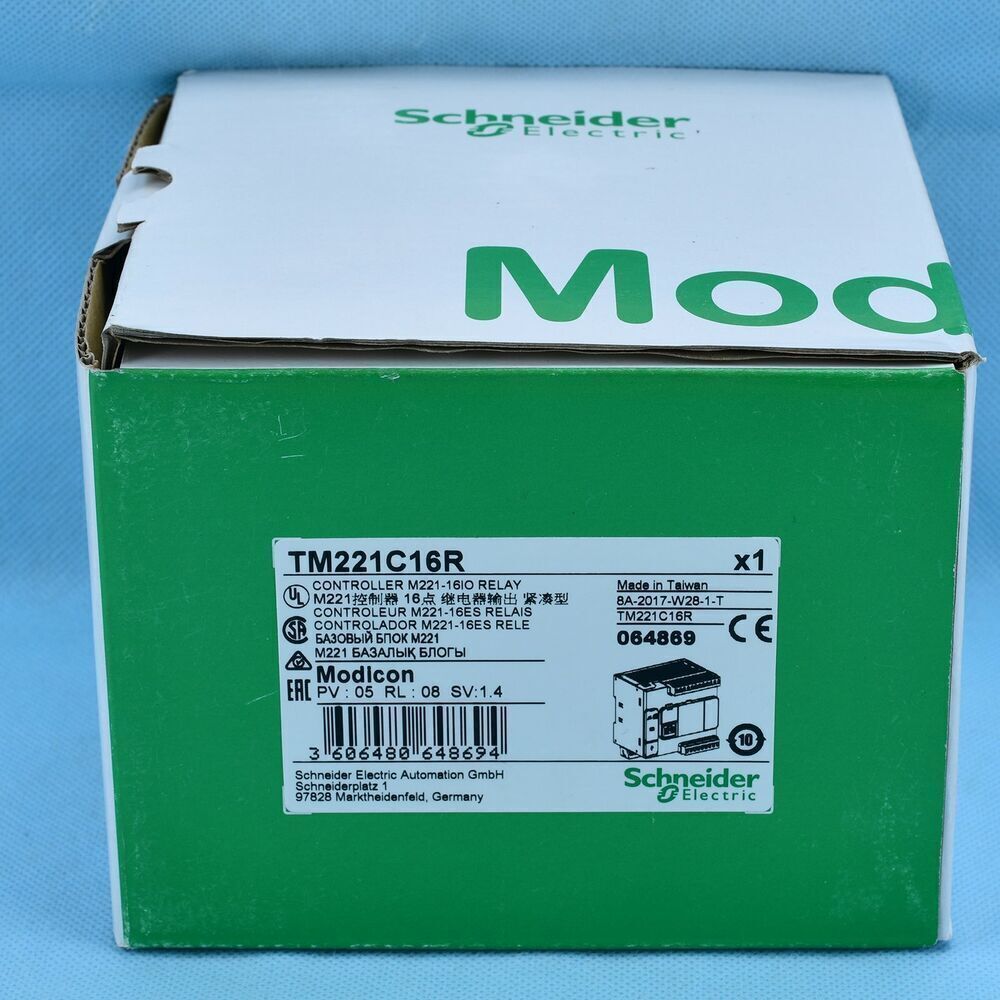

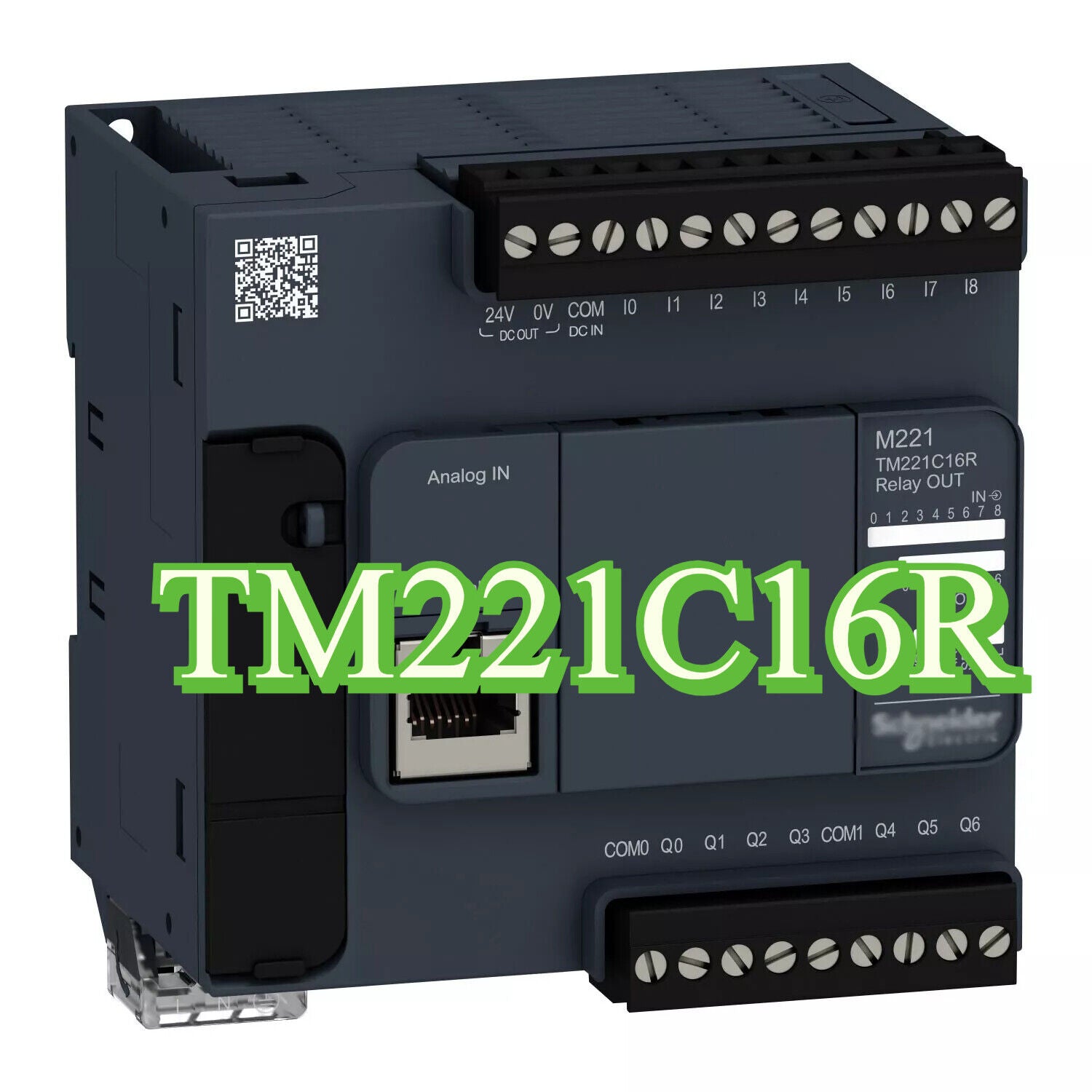

Product Description: Schneider Electric TM221C16R

The Schneider Electric TM221C16R is a compact, cost- effective logic controller from the Modicon M221 series, designed for small automation systems. It features 16 integrated I/O points and relay outputs, offering reliable and flexible control for basic industrial and commercial machines. This controller is suitable for applications where simple and space- saving control is required.

Key Features

• Total I/O:
  • 9 digital inputs (24 VDC)
• Power supply: 24 VDC
• Communication:
  • 1 x USB mini-B port (programming)
• Expandable via TM3 I/O modules
• SD card slot for data logging and backup
• Built-in real-time clock
• Programming with EcoStruxure Machine Expert - Basic
• Removable terminal blocks

Technical Specifications

• Input voltage: 20.4 to 28.8 VDC
• Relay contact rating: 2 A at 250 V AC or 30 V DC
• Max total output current: 8 A
• Program memory: 256 kB
• Data memory: 64 kB
• Processing speed: 1 µs per Boolean instruction
• Operating temperature: 0°C to +55°C
• Storage temperature: -40°C to +70°C
• Humidity: 5% to 95%, non-condensing
• Protection rating: IP20
• Mounting: DIN rail
• Dimensions (W x H x D): Approx. 90 mm x 90 mm x 70 mm
• Weight: Approx. 0.4 kg

Application Areas

• Small machinery automation
• Conveying systems
• Building and HVAC control
• Pump and fan control
• Light-duty OEM applications

Advantages

• Compact size ideal for small panels
• Expandable for growing I/O requirements
• Built-in serial communication for field device integration
• Affordable and easy-to-program solution
• Reliable performance for general automation
