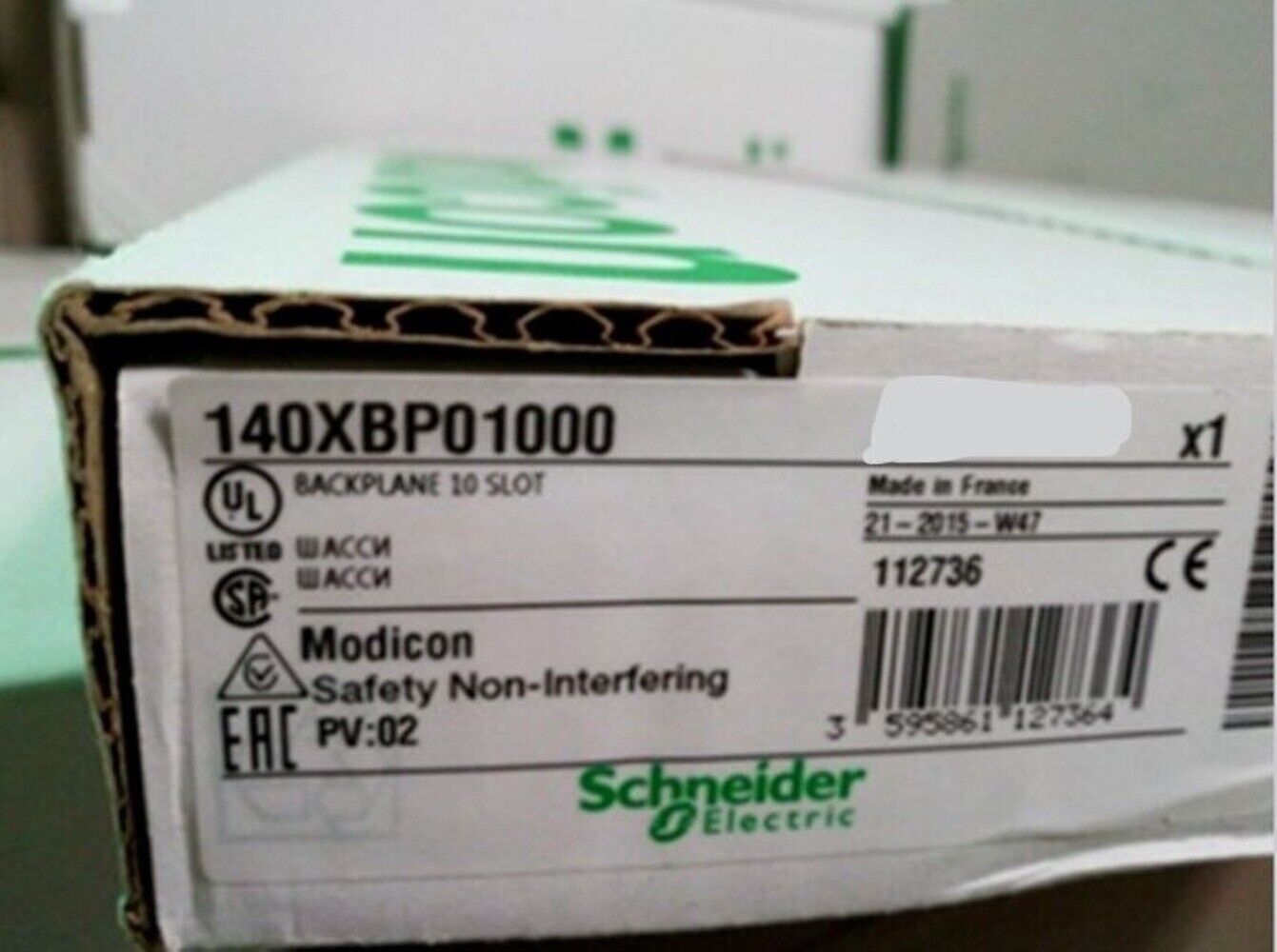

Product Description: Schneider Electric 140XBP01000

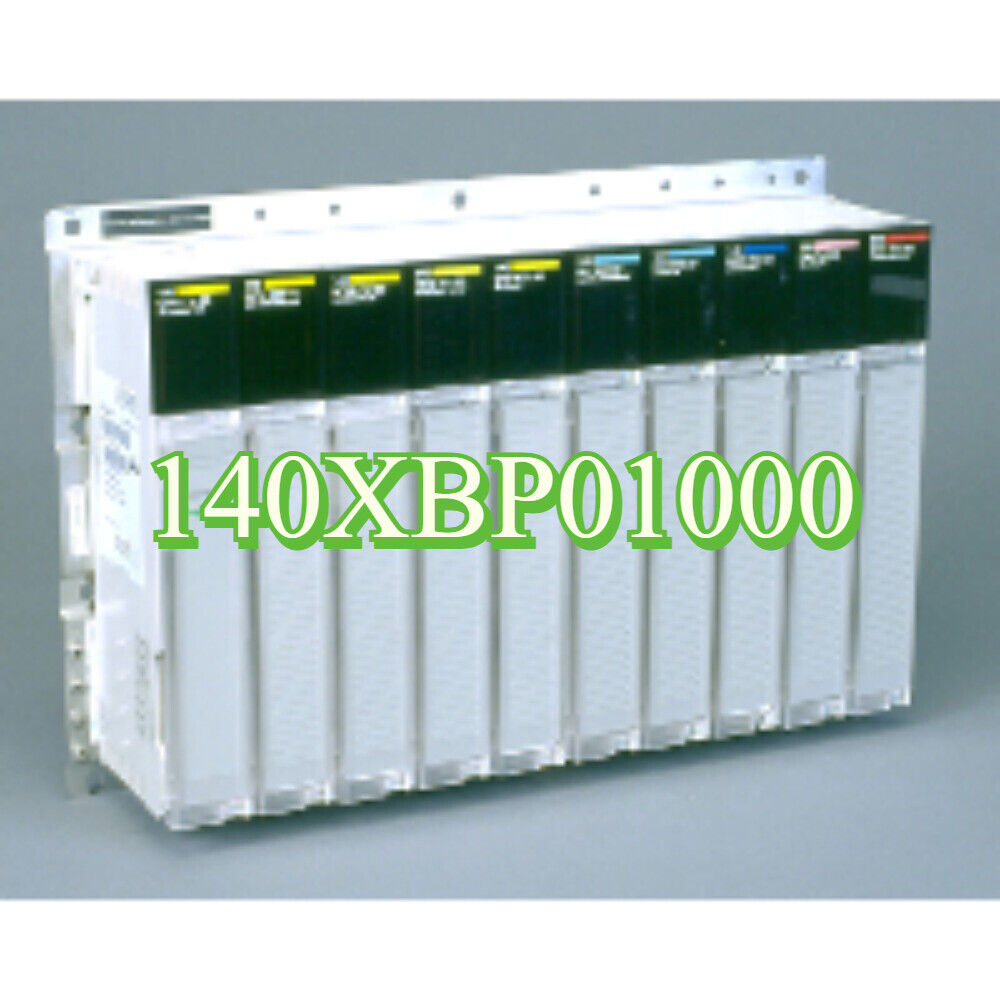

The Schneider Electric 140XBP01000 is a standard 10-slot backplane (rack) for the Modicon Quantum automation platform. It provides mechanical and electrical support for Quantum modules, enabling communication between CPU, power supply, I/O, and communication modules via a common bus. Designed for both simple and complex automation architectures, it offers reliable performance and easy installation in control panels.

Key Features

• Number of module slots: 10 (including CPU and power supply)
• Bus type: Quantum local bus
• Compatible with: All standard Quantum I/O, CPU, communication, and power supply modules
• Mounting: Panel mounting with screw holes
• Bus connectors pre-installed for plug-and-play module insertion
• Designed for use with 115/230 V AC or 24 V DC power supply modules

Technical Specifications

• Supply compatibility: Works with 140CPS11100, 140CPS12420, and similar power modules
• Bus current capacity: 3 A (total, distributed to modules)
• Operating temperature: 0°C to +60°C
• Storage temperature: -40°C to +85°C
• Relative humidity: 5% to 95%, non-condensing
• Protection rating: IP20
• Dimensions (W x H x D): Approx. 483 mm x 178 mm x 65 mm
• Weight: Approx. 1.6 kg

Application Areas

• Industrial process control
• Distributed I/O systems
• Manufacturing automation
• Energy, utility, and infrastructure systems
• Centralized PLC-based control cabinets

Advantages

• Supports high-density I/O configurations
• Standard 10-slot size for flexible module layout
• Reliable backplane communication architecture
• Easy integration and maintenance in Quantum PLC systems
• Durable construction for industrial environments
