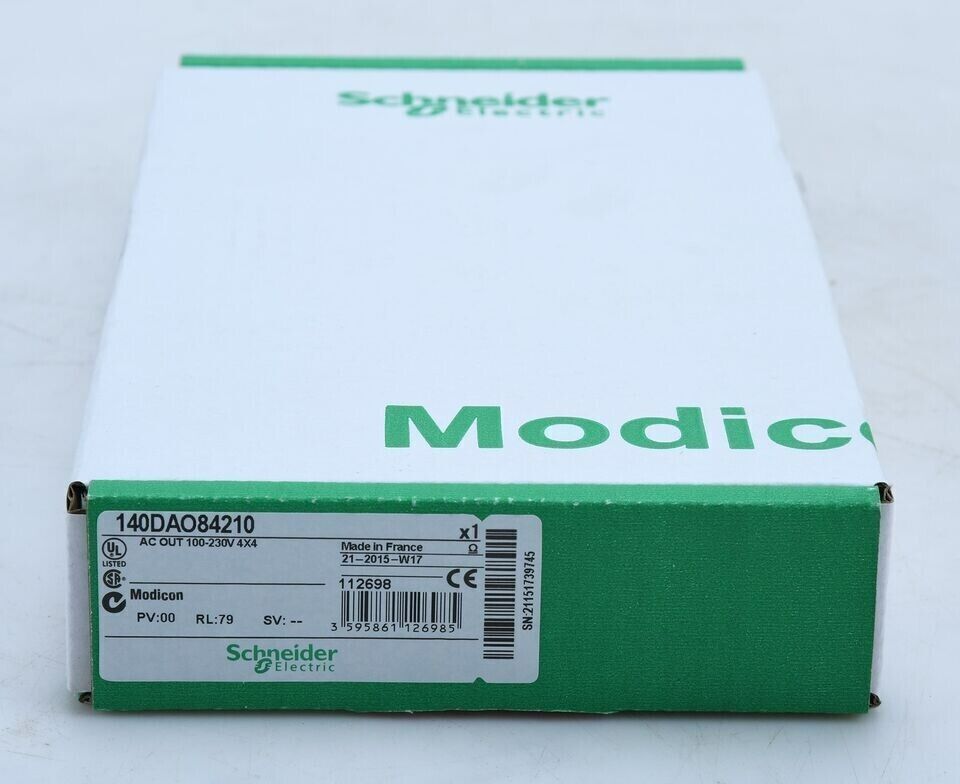

Modicon Quantum | Schneider | 140DAO84210 PLC Module 140DAO84210 Brand New In Box

Product Description: Schneider Electric 140DAO84210

The Schneider Electric 140DAO84210 is an 8-channel analog output module from the Modicon Quantum series. It is designed to provide isolated current outputs for industrial automation systems that require precise analog control of actuators, drives, or valves. Each output is configurable for either 0–20 mA or 4–20 mA ranges, making it suitable for a wide variety of process control applications.

Key Features

• 8 isolated analog output channels
• Output signal types: 0–20 mA and 4–20 mA (selectable)
• Individual channel isolation
• LED indicators for module and channel status
• Hot-swappable with appropriate configuration
• Removable terminal block for simplified wiring
• Compatible with Modicon Quantum backplanes

Technical Specifications

• Output range: 0–20 mA or 4–20 mA
• Load impedance: 0 to 750 Ohms
• Resolution: 12 bits
• Accuracy: ±0.1% of full scale at 25°C
• Output update rate: 1 ms per channel
• Isolation: 2500 V RMS (channel-to-bus and channel-to-channel)
• Power consumption: Approx. 3.6 W
• Operating temperature: 0°C to +60°C
• Storage temperature: -40°C to +85°C
• Relative humidity: 5% to 95% non-condensing
• Protection rating: IP20
• Dimensions: Standard Quantum slot size
• Weight: Approx. 0.45 kg

Application Areas

• Process control systems
• DCS and SCADA integration
• Chemical and pharmaceutical industries
• Water treatment and distribution
• Analog control for valves, actuators, and drives

Advantages

• High channel density for analog current output
• Flexible range selection per channel
• Electrical isolation enhances signal integrity and safety
• Precision output suitable for demanding control systems
• Seamless integration with Modicon Quantum architecture
