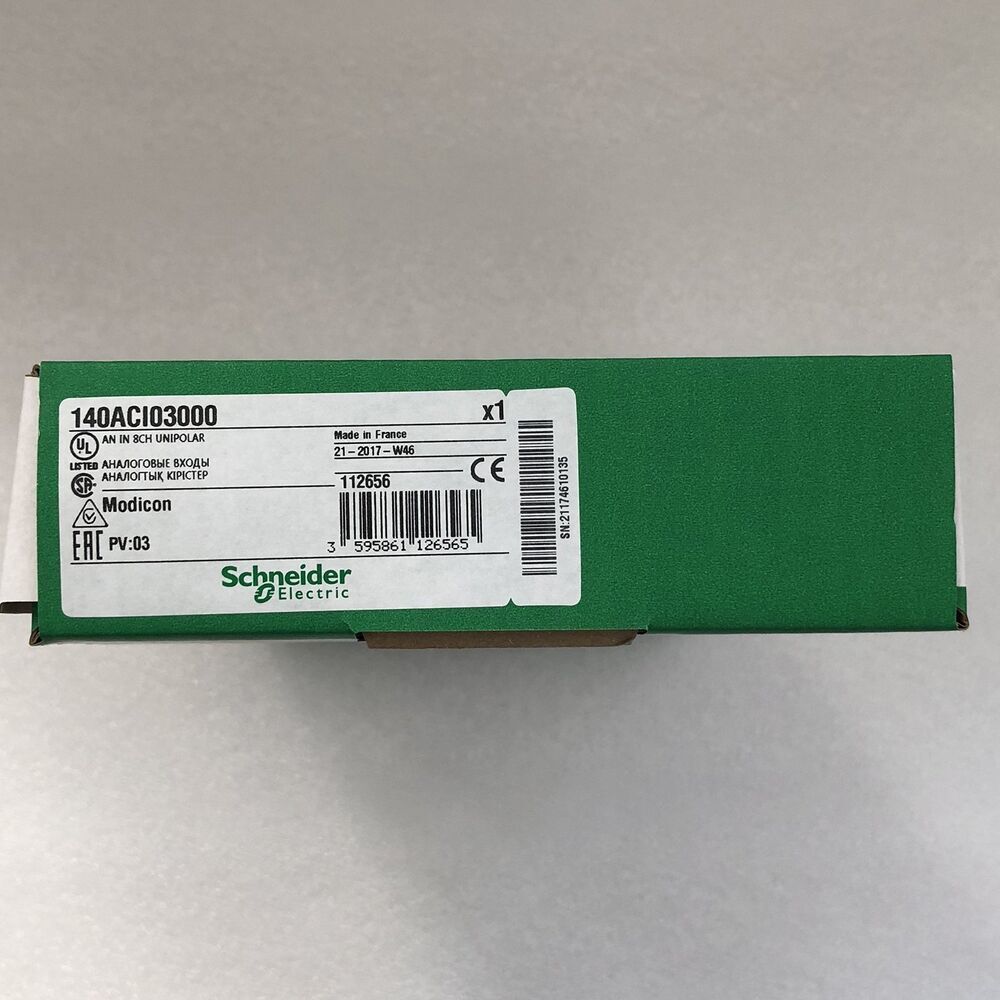

Product Description: Schneider Electric 140ACI03000

The Schneider Electric 140ACI03000 is an analog input module from the Modicon Quantum series. It provides 8 isolated analog input channels designed to receive 0–20 mA or 4–20 mA current signals from a wide variety of field devices such as transmitters, flow meters, and process sensors. The module ensures high accuracy and electrical isolation, making it ideal for demanding process control applications.

Key Features

• 8 analog current input channels
• Input range: 0–20 mA or 4–20 mA (software configurable)
• Channel-to-channel and channel-to-bus isolation
• LED indicators for channel status and diagnostics
• Removable terminal block for easy field wiring
• Hot-swappable within Modicon Quantum racks

Technical Specifications

• Input impedance: 250 Ω (internal shunt resistor)
• Resolution: 12 bits
• Accuracy: ±0.2% of full scale at 25°C
• Conversion time: 2 ms per channel
• Isolation: 500 V RMS (channel-to-channel and channel-to- bus)
• Power consumption: Approx. 4.5 W
• Operating temperature: 0°C to +60°C
• Storage temperature: -40°C to +85°C
• Relative humidity: 5% to 95%, non- condensing
• Protection rating: IP20
• Dimensions: Standard Quantum module size
• Weight: Approx. 0.4 kg

Application Areas

• Process automation (chemical, water treatment, oil & gas)
• Industrial monitoring systems
• Energy and utility control systems
• DCS/SCADA integration
• Analog data acquisition from field instrumentation

Advantages

• Reliable and precise current input measurement
• Individual channel isolation improves system safety and integrity
• Flexible configuration for 0–20 mA or 4–20 mA loops
• Easy integration with existing Modicon Quantum systems
• Long product lifecycle support for legacy systems
