Relay Control vs. PLC Control Key Differences You Should Know

For a long time, controlling industrial machines was done with Relay Logic—panels of interconnected physical switches and wires. Today, most systems use Programmable Logic Controllers (PLCs), which are small, durable computers. One approach is purely physical, while the other is digital and runs on code. Each has its place, and choosing between them requires a clear look at their key differences in cost, flexibility, and maintenance.

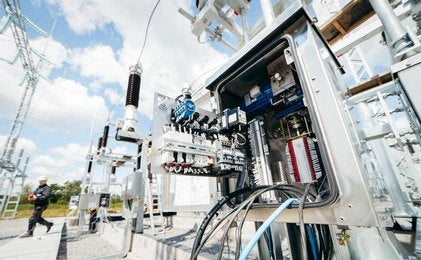

Relay Logic Control (RLC): The Foundation of Automation

Relay Logic Control (RLC) is the original method for automating industrial equipment. It uses physical parts, primarily electromechanical relays, that are wired together to form control circuits.

At its core, a relay is an electrically operated switch. A small signal energizes a coil, which mechanically flips a switch to control a much larger electrical load, like a motor. This keeps the low-power control signals safely isolated from the high-power machine circuits.

The "logic" is created by the way the relays are physically wired.

• AND Logic: Contacts are wired in a line (series). The output only turns on if the first switch AND the second switch are closed.
• OR Logic: Contacts are wired side-by-side (parallel). The output turns on if either the first switch OR the second switch is closed.

The design for these circuits is drawn on a schematic called a ladder diagram. It looks like a ladder, with each "rung" showing how a part of the circuit is connected. This blueprint was so effective that it became the basis for programming PLCs.

RLC is tough and good for simple on/off jobs. Its main weakness is its physical nature. The wiring gets massive and complicated for larger tasks. It is also completely inflexible; changing the logic requires physically rewiring the control panel, a slow and expensive process. Since relays have moving parts, they eventually wear out and fail.

Programmable Logic Controller (PLC): The Digital Successor

A Programmable Logic Controller (PLC) is a rugged industrial computer built to run automated processes in tough factory environments. PLCs were created to replace massive, inflexible relay panels. Instead of physical wiring, a PLC uses a software program to control machines. This means changes can be made with a keyboard instead of a screwdriver.

A PLC system has a few key parts. The Central Processing Unit (CPU) is the brain that executes the program. The Input/Output (I/O) system is how the PLC connects to machines. Input modules read signals from sensors and switches, while output modules send power to motors and lights.

PLCs come in two main physical forms. Fixed PLCs are all-in-one units with a set number of I/O points, ideal for smaller jobs. Modular PLCs use a rack system where you can mix and match components like CPUs, power supplies, and various I/O types. This offers great flexibility for complex or growing systems.

A PLC works by repeating a simple loop called the scan cycle: it checks the inputs, runs the program, updates the outputs, and repeats. This predictable cycle makes it very reliable.

The biggest advantage of a PLC is its software-based logic. The most popular programming language is Ladder Diagram, which was made to look exactly like the old relay circuit diagrams, making it familiar to electricians.

Head-to-Head Comparison: Major Differences between Relay Control and PLC

With a solid grasp of each technology, we can now compare them head-to-head in some of the most significant areas. What this comparison illustrates is why PLCs are now standard for most industrial applications.

Flexibility and Scalability: The Programmable Edge

The biggest difference is flexibility. Modifying the logic of a PLC is a quick software change. Modifying a relay system requires slow, expensive, and error-prone physical rewiring. The same goes for expansion. Expanding a PLC system is as simple as adding a new I/O module. Expanding a relay system makes it exponentially larger and more complicated.

Physical Footprint and Wiring: Space Saving and Easy Installation

A single compact PLC will take the place of hundreds of relays, making the control panel much smaller. It also makes the wiring easier. Rather than a jumbled mess of point-to-point wiring, a PLC system is mostly a matter of wiring field devices to the I/O modules. The logic happens within the PLC, not in the cabinet.

Cost Analysis: Upfront Costs vs. Total Cost of Ownership

On a small, simple project, relays may be less expensive in initial hardware cost. This is a short-term advantage, however. Once the project needs more than a few relays and timers, a small PLC will most likely be less expensive. More importantly, the Total Cost of Ownership of the PLC is much less because of reduced maintenance, downtime, and simplicity of changes.

Reliability and Maintenance: Mechanical Wear vs. Solid-State

Relays contain moving parts that wear out after so many cycles. PLCs do not have any moving parts in the logic modules, so they are considerably long-lasting and more reliable. It is also quicker to troubleshoot. Rather than tracing wires with a multimeter, a technician can connect a laptop to the PLC and watch the logic execute in real-time to immediately see faults.

Performance and Speed: Response Times Compared

A mechanical relay is slow, taking 8-10 milliseconds or more to switch. A PLC with solid-state outputs switches in microseconds. This is important in high-speed applications such as robotics and packaging, where relays would be too slow to keep up.

Improved Features and Connectivity: Beyond On/Off Control

Relay logic can only provide simple on/off control. PLCs are actual computers that can do advanced math, control process variables using PID control, and record data. They even have networking, so they can communicate with Human-Machine Interfaces (HMIs), SCADA systems, and other plant equipment with ease. It is this connectivity that made the modern data-driven factory possible.

Making the Right Choice: Selecting Your Control Strategy

The use of relays versus a PLC is strictly application-driven. Although PLCs are the newer norm, there is still a niche for relays in certain applications, including working alongside PLCs.

When to Use Relay Logic Control

Relay logic is a suitable option only for very simple applications that are extremely simple, will never be modified, and where the absolute lowest initial component cost is the only priority. Consider a simple motor start/stop circuit or a simple safety interlock. If the application can be accomplished with just a few relays, it may be an RLC candidate.

When to Utilize a PLC Control System

For almost every other industrial automation task, the PLC is the preferred option. If the application has any sophistication, if it must be open to future modification, if it must perform data acquisition, or if it must communicate with other systems, then a PLC is required. Its utility, reliability, and performance in the long term make it the default choice for contemporary control.

The Hybrid Approach: Employing Relays with PLCs

The selection is not always one or the other. For contemporary control panels, it is quite common to employ relays to support a PLC. Low-cost, small "interposing" relays are generally employed on PLC outputs to drive high electrical loads such as motor starters. It saves the more costly PLC output module from being destroyed. Moreover, critical safety circuits such as emergency stops are generally hardwired with dedicated safety relays for an added measure of safety.

4 FAQs About Relay Control vs. PLC Control

Q1: Can a PLC replace all relays in a control panel?

A: A PLC takes the place of all the logic relays, although it's common practice to keep interposing relays to switch high-power loads so that the output hardware of the PLC is protected. Also, dedicated safety relays are often used for emergency stop circuits to provide a separate, hardwired layer of safety.

Q2: Is it hard to make the switch from relay logic design to programming PLCs?

A: The transition is also made quite simple because the most popular PLC programming language, Ladder Logic, was designed to appear and function exactly like the relay logic diagrams with which technicians are already familiar.

Q3: What is the average lifespan of a relay contact versus a PLC output?

A: A mechanical relay possesses a limited life in the form of a number of cycles, typically one to ten million operations, before it will wear out and fail. A solid-state PLC output contains no moving parts and enjoys a much longer theoretical life.

Q4: Are PLCs vulnerable to cybersecurity threats that relays are not?

A: Yes. A relay logic system is physical only and not attached to any network, and hence is immune to cyber attacks. A PLC is a networked computer and can be a target for attacks, which makes network security a vital part of any modern control system.
