Product Description: Siemens 6ES7513-1AL02-0AB0

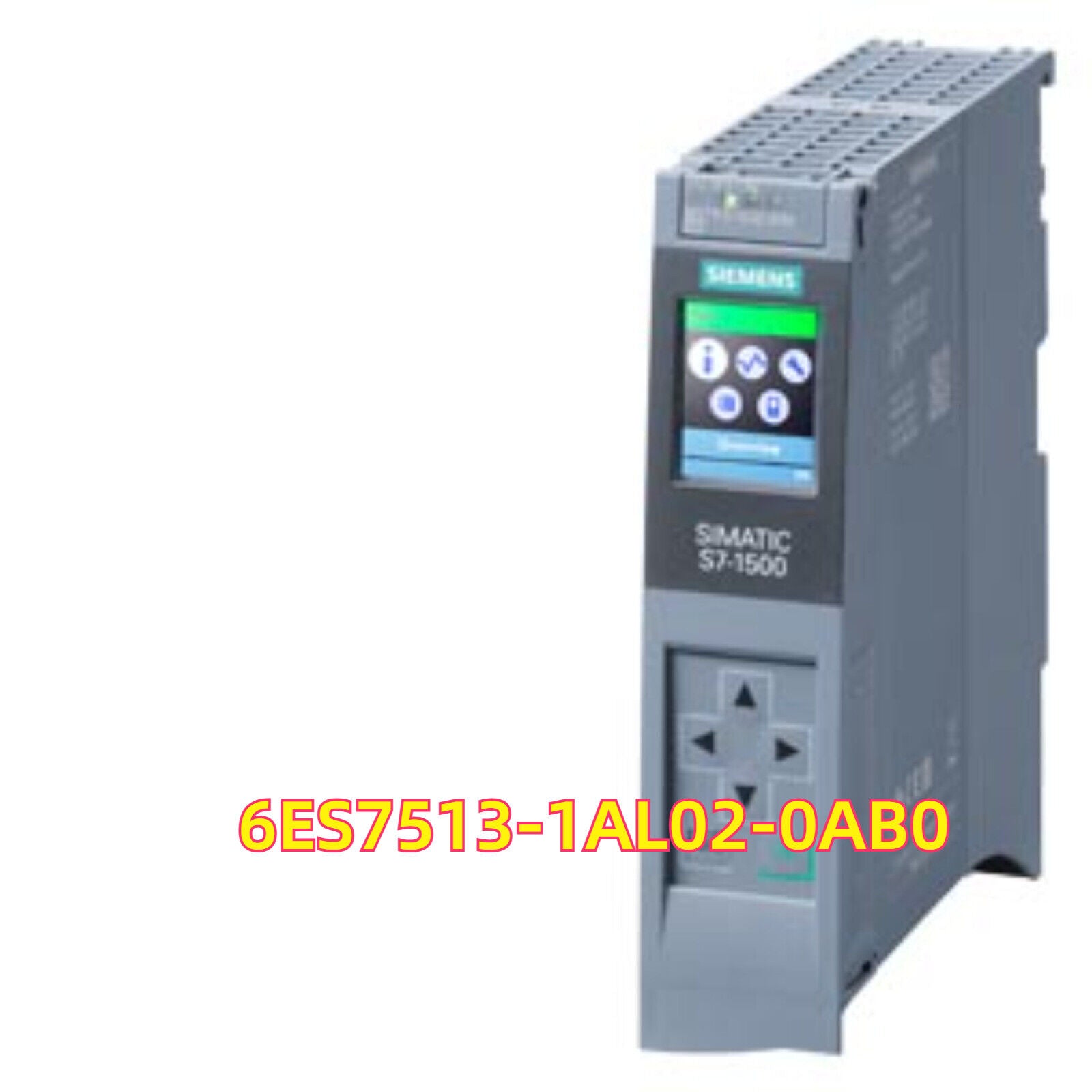

The Siemens 6ES7513-1AL02-0AB0 is a central processing unit (CPU) from the SIMATIC S7-1500 series, designed for standard automation tasks in industrial environments. This CPU offers a balanced combination of performance, memory capacity, and communication capabilities, making it suitable for a wide range of applications. It features a PROFINET IRT interface with a 2-port switch, enabling high-speed communication within automation systems. The CPU's compact design and integrated display facilitate easy installation and operation.

Key Features

• Memory Capacity: Program memory: 300 KB, Data memory: 1.5 MB
• Communication Interface: PROFINET IRT with 2-port switch
• Processing Performance: Bit operations: 40 ns, Word operations: 48 ns, Fixed-point arithmetic: 64 ns, Floating-point arithmetic: 256 ns
• Display and Control: Integrated 3.45 cm diagonal display, 8 control keys and 2 mode buttons
• Supply Voltage: Rated value: 24 V DC, Permissible range: 19.2 V to 28.8 V DC
• Power Consumption: Rated current: 0.7 A, Maximum current: 0.95 A, Inrush current: 1.9 A
• Backup: Maintenance-free backup
• SIMATIC Memory Card: Required for operation

Technical Specifications

• Product Type: Central Processing Unit
• Part Number: 6ES7513-1AL02-0AB0
• Program Memory: 300 KB
• Data Memory: 1.5 MB
• Communication Interface: PROFINET IRT with 2-port switch
• Bit Performance: 40 ns
• Word Performance: 48 ns
• Fixed-Point Performance: 64 ns
• Floating-Point Performance: 256 ns
• Display: 3.45 cm diagonal
• Control Keys: 8
• Mode Buttons: 2
• Supply Voltage: 24 V DC
• Permissible Voltage Range: 19.2 V to 28.8 V DC
• Rated Current: 0.7 A
• Maximum Current: 0.95 A
• Inrush Current: 1.9 A
• SIMATIC Memory Card: Required

Application Areas

• Factory Automation: Suitable for controlling and monitoring automated machines and production lines.
• Process Control: Ideal for applications requiring precise control and monitoring of processes.
• Building Automation: Can be used in building systems for controlling HVAC, lighting, and other systems.
• Infrastructure Automation: Applicable in utilities and infrastructure systems for monitoring and control.

Advantages

• High Processing Speed: Fast processing times for bit, word, fixed-point, and floating-point operations.
• Flexible Communication: Supports high-speed communication via PROFINET IRT with a 2-port switch.
• Compact Design: Space-saving design with an integrated display and control keys.
• Easy Integration: Compatible with other Siemens S7-1500 components and systems.
• Reliable Operation: Maintenance-free backup and wide supply voltage range ensure reliable performance.
