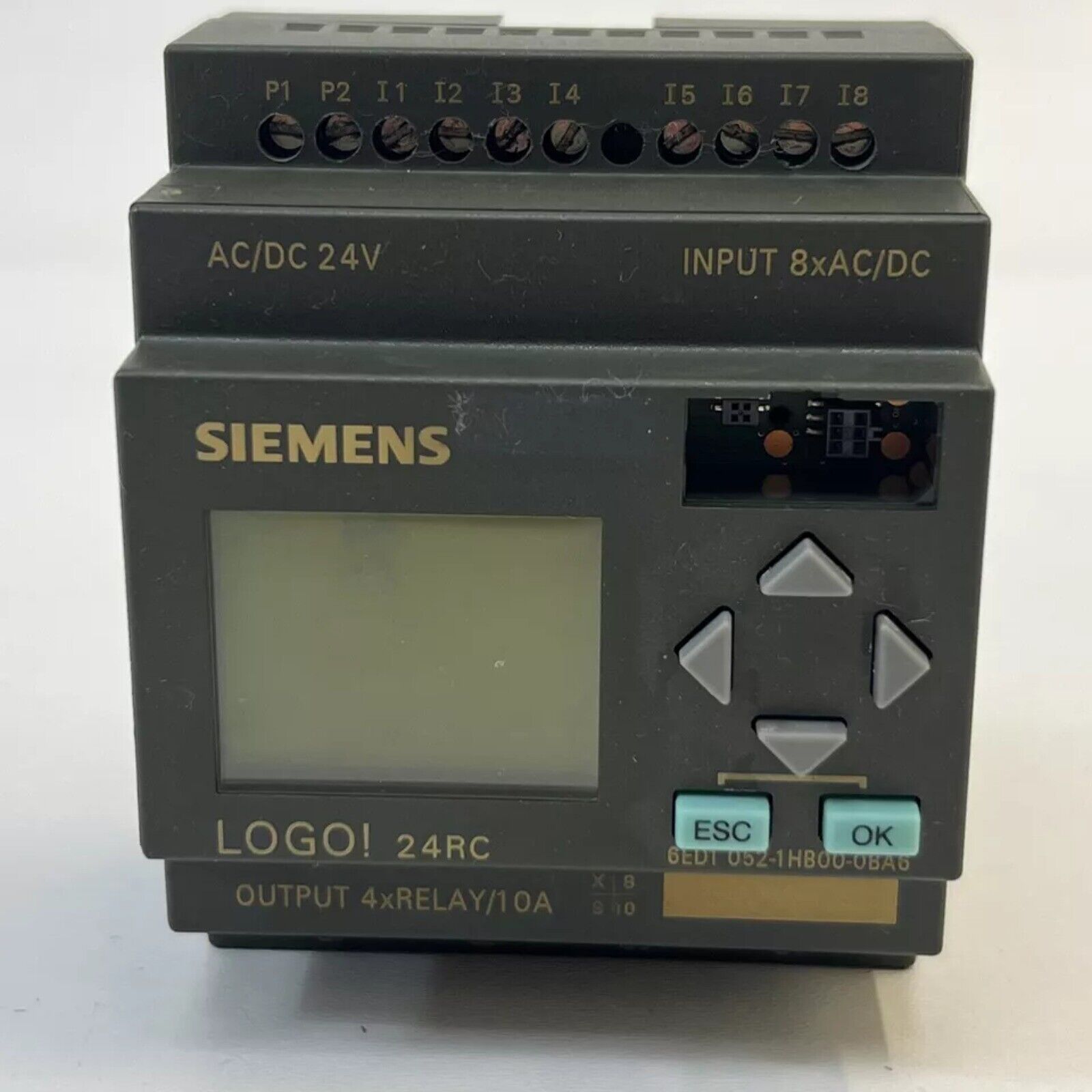

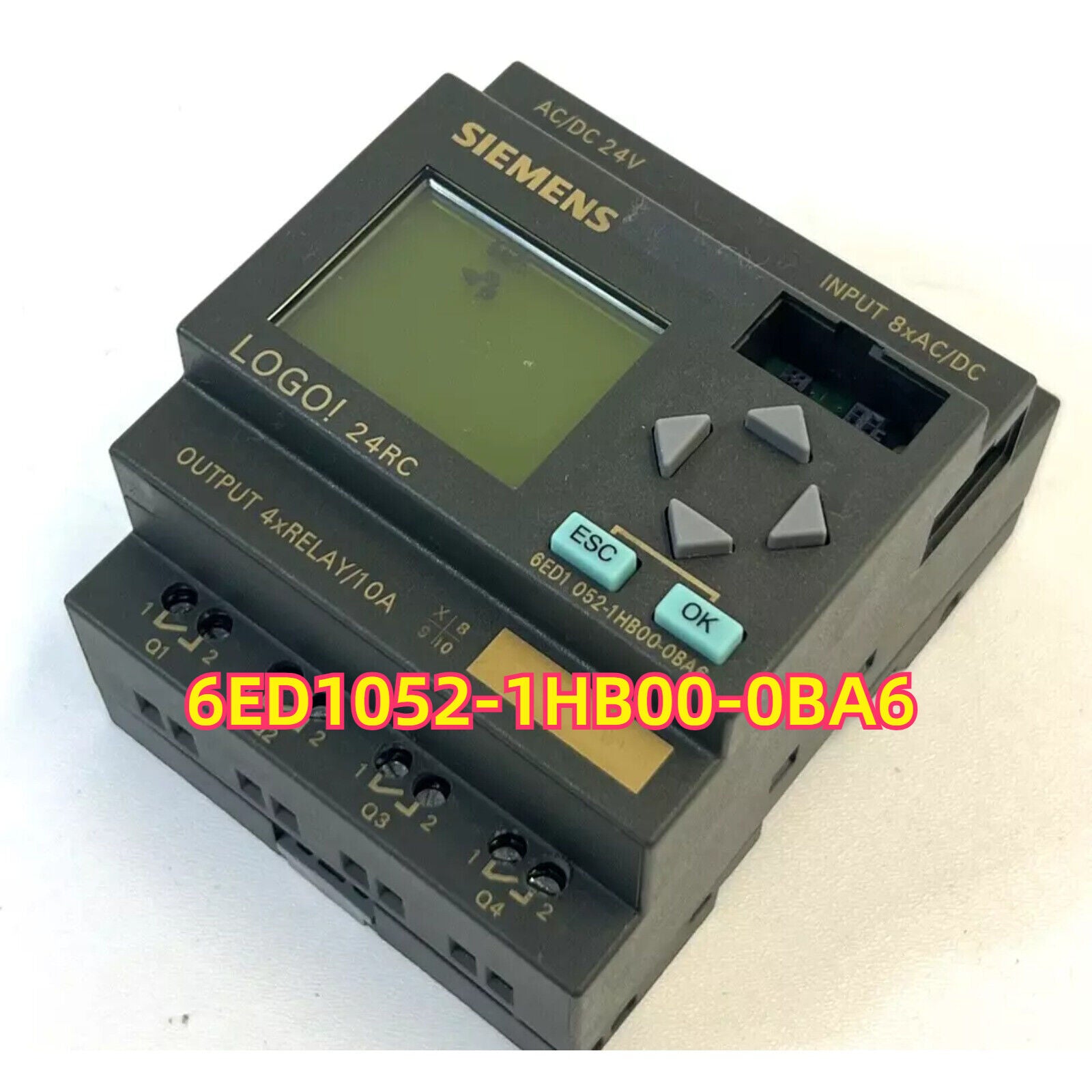

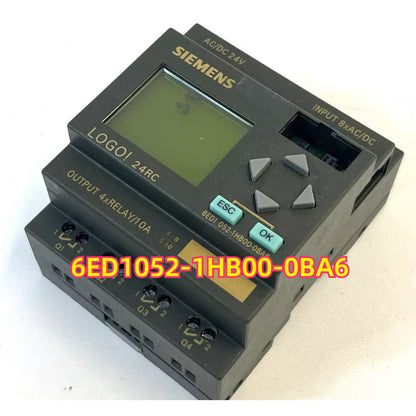

PLC | Siemens | 6ED1052-1HB00-0BA6 6ED1 052-1HB00-0BA6 LOGO 24RC logic module

Product Description: Siemens 6ED1052-1HB00-0BA6

The Siemens 6ED1052-1HB00-0BA6 is a versatile LOGO! 8 logic module combining a 24 V AC/DC power supply, built-in LCD display, Ethernet interface and basic I/O in one compact unit. It provides eight universal digital inputs and four relay outputs for small-scale automation tasks. Featuring 400 function blocks of program memory, an integrated web server for remote monitoring, and a microSD card slot for program backup and cloning, the 24RCE module is ideal for machine control, building automation and OEM applications where networked operation and easy maintenance are required.

Key Features

• Power Supply: 24 V AC/DC for module and I/O operation
• Digital Inputs: 8 universal inputs (24 V DC, configurable for pulse or analog measurement)
• Digital Outputs: 4 relay outputs (250 V AC/30 V DC, 6 A each)
• Program Memory: 400 function blocks for custom control logic
• Display: Integrated 4-line backlit LCD for status, parameterization and diagnostics
• Communication: Ethernet port (10/100 Mbps) with built-in web server for remote access
• microSD Slot: Standard microSD card slot for program storage, backup and parameter cloning
• Expansion: Supports up to 8 additional I/O expansion modules

Technical Specifications

• Supply Voltage: 24 V AC/DC (20.4 … 28.8 V DC)
• Digital Inputs: 8 universal inputs (24 V DC max)
• Digital Outputs: 4 relay outputs, 6 A each
• Program Memory: 400 function blocks
• Communication Interface: 1 × Ethernet (10/100 Mbps)
• Display: 4-line backlit LCD
• microSD Card Slot: for standard microSD (max. 32 GB)
• Dimensions (W × H × D): 72 mm × 90 mm (4 modules wide)
• Mounting: 35 mm DIN rail
• Operating Temperature: –20 °C … +55 °C
• Protection Class: IP20
• Weight: ≈ 0.15 kg

Application Areas

• Machine and process control in small-scale automation
• Building automation (lighting, HVAC, access control)
• Remote monitoring and data logging via integrated web server
• OEM control panels requiring networked logic and easy cloning

Advantages

• All- in-One Solution: Combines power supply, display, Ethernet and I/O in a single module
• Easy Networking: Built-in web server enables remote access without extra hardware
• Modular Flexibility: Expandable I/O lets you tailor the system to evolving needs
• User-Friendly Interface: On-board LCD and microSD support streamline commissioning and maintenance
• Compact Design: Slim 72 mm width saves cabinet space
